Power Seat for Driver's Seat: Notes

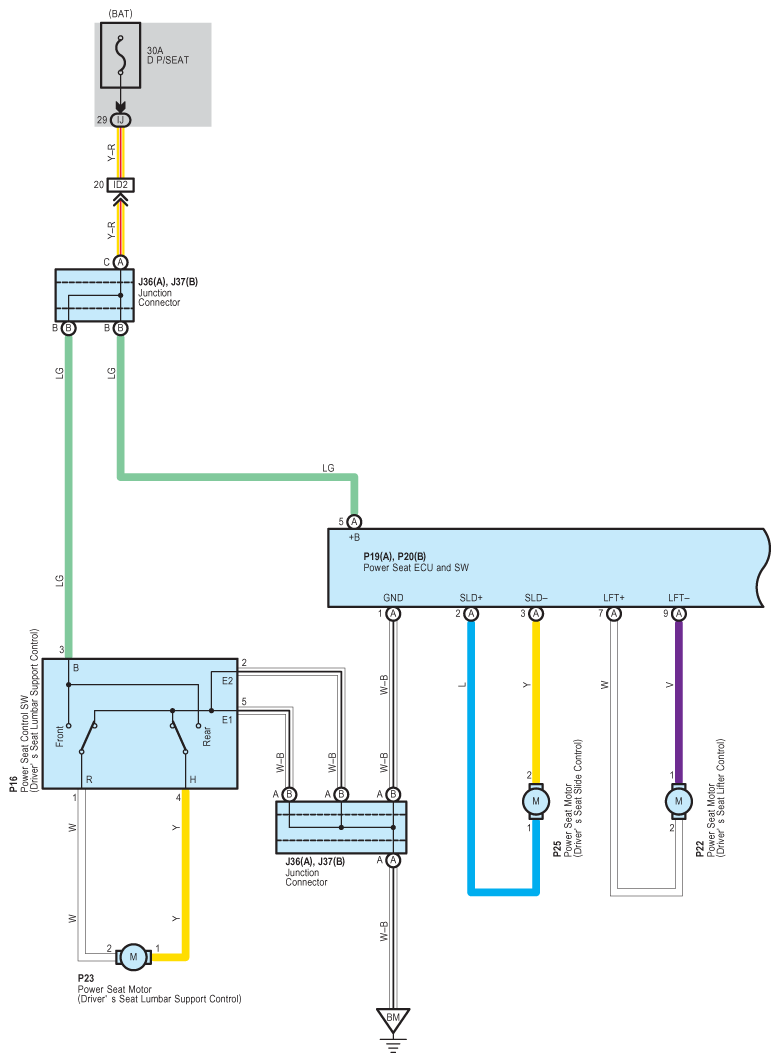

Fig 1: Power Seat For Driver'S Seat Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

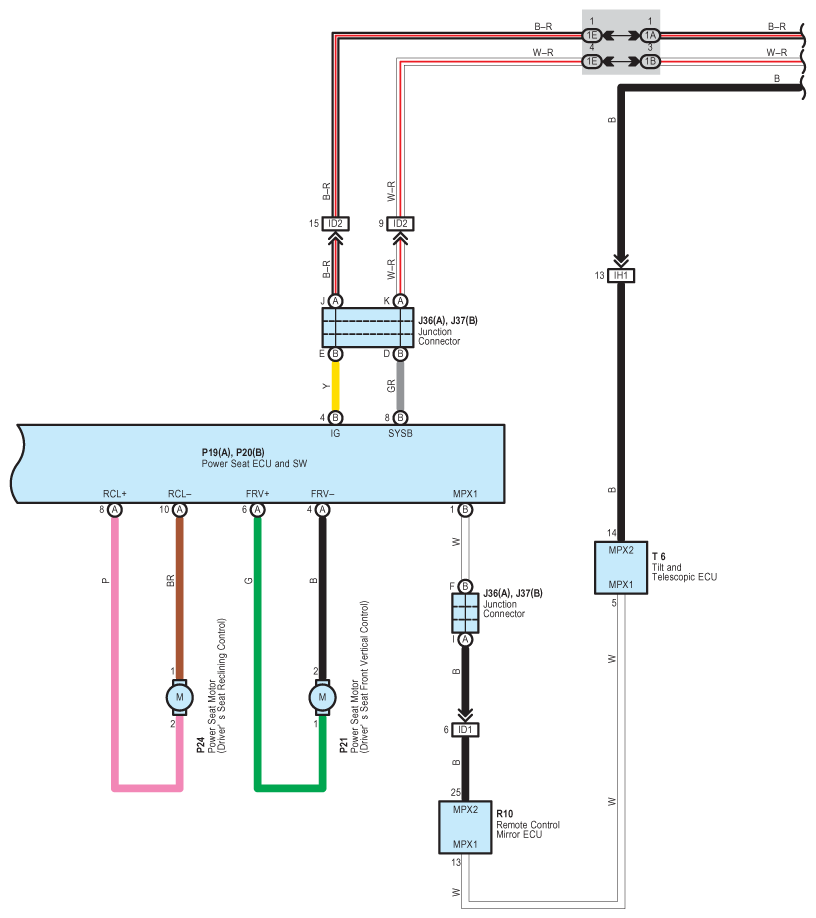

Fig 2: Power Seat For Driver'S Seat Wiring Diagram (2 Of 3)

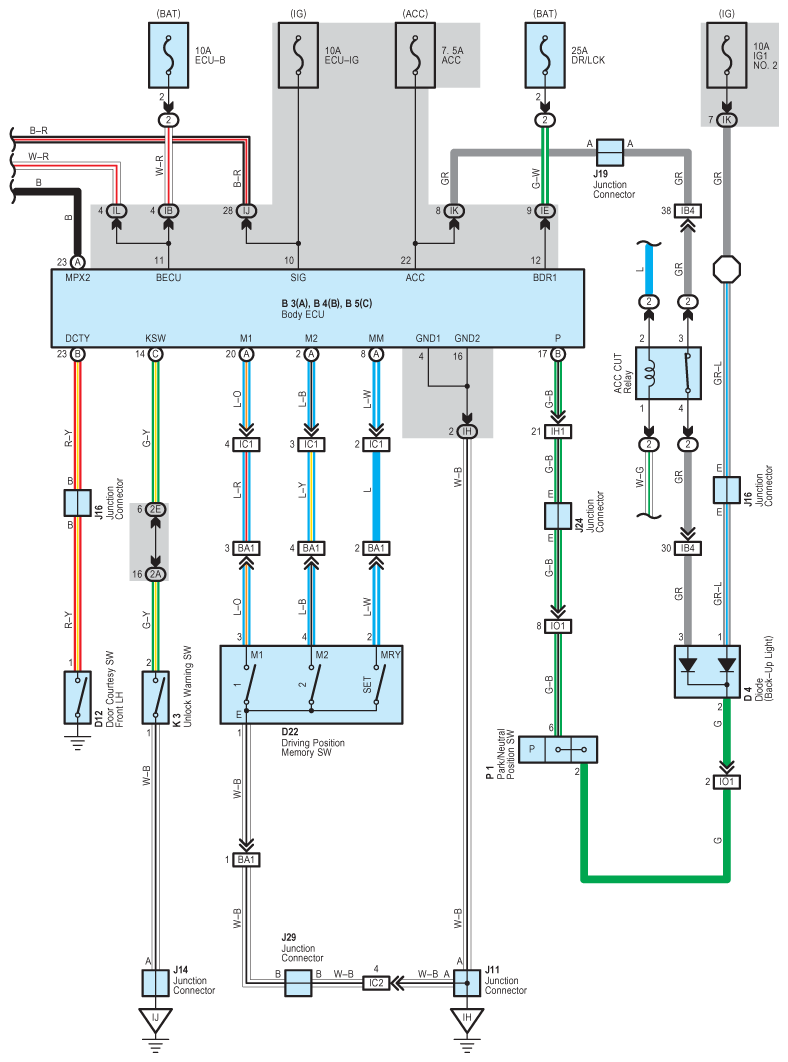

Fig 3: Power Seat For Driver'S Seat Wiring Diagram (3 Of 3)
