Power Window: Notes — 2006 Lexus GX 470 Service Manual ~ FixVault

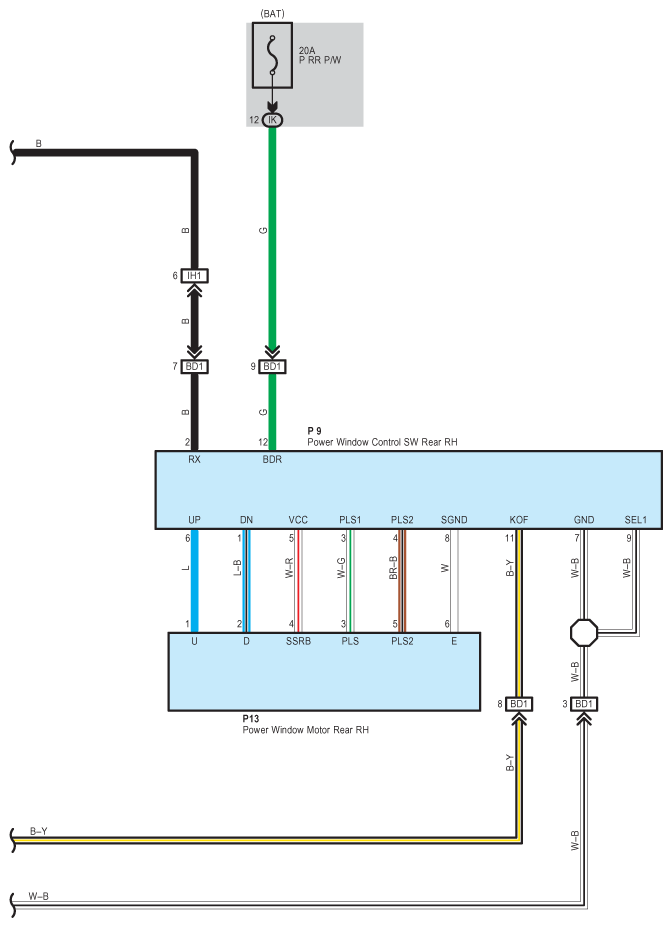

Fig 1: Power Window Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

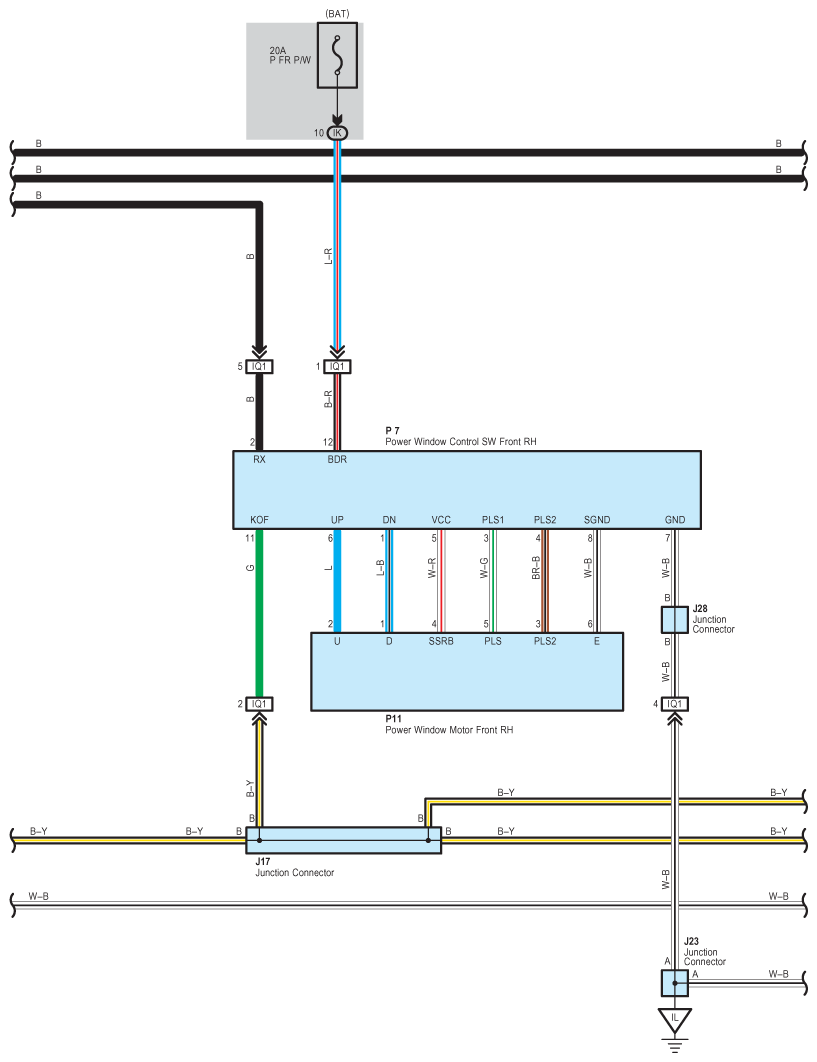

Fig 2: Power Window Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

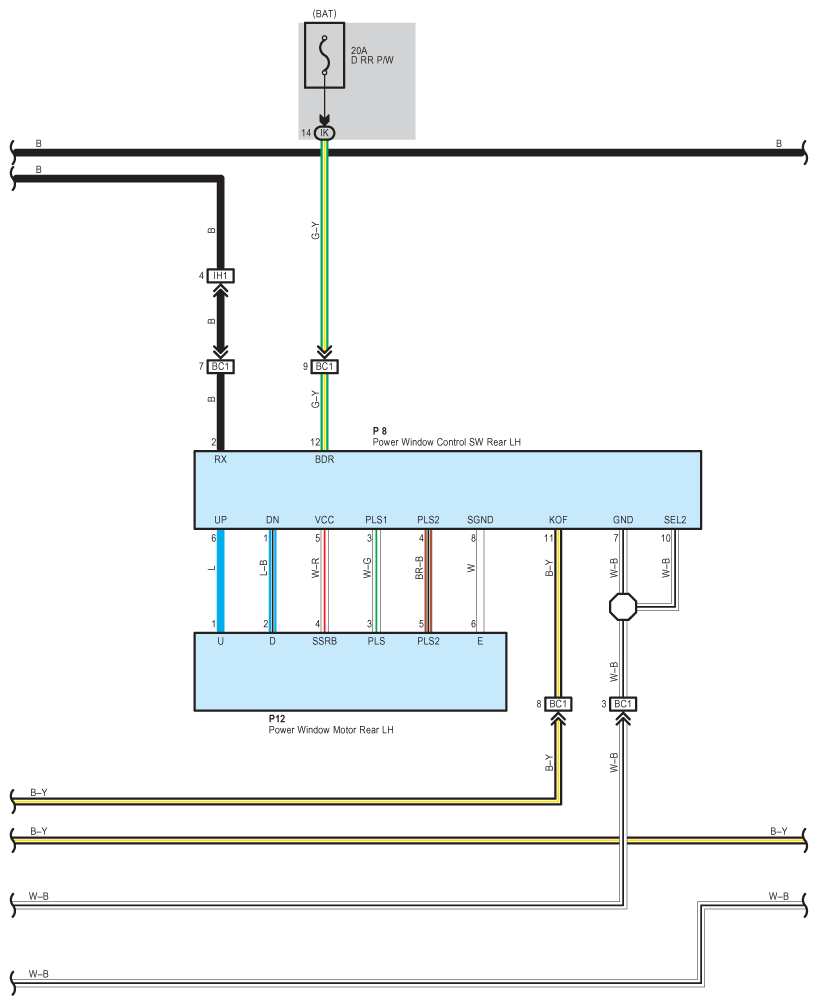

Fig 3: Power Window Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

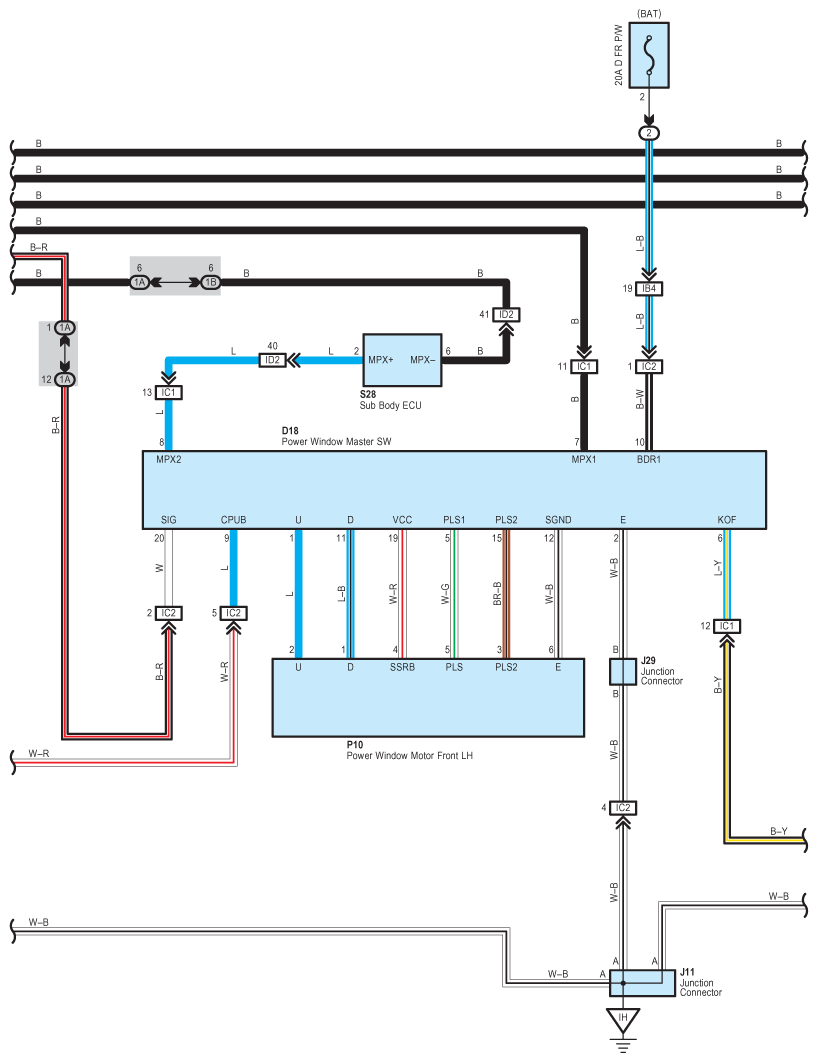

Fig 4: Power Window Wiring Diagram (4 Of 5)

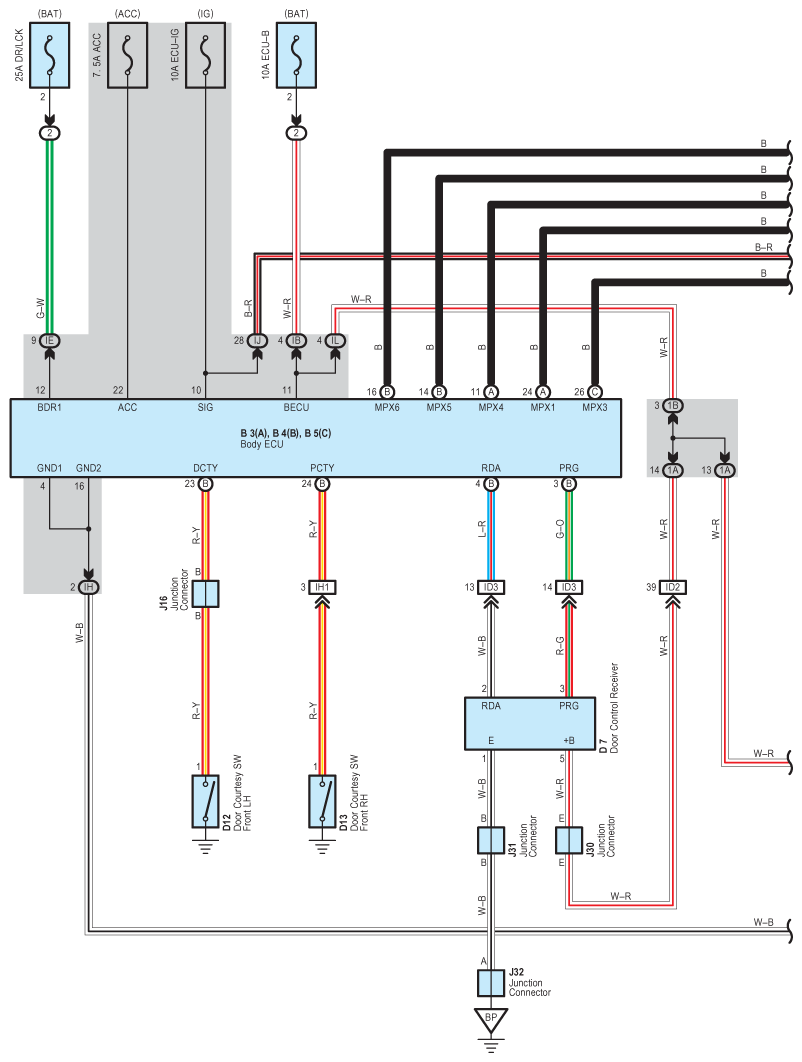

Fig 5: Power Window Wiring Diagram (5 Of 5)
