Rear Window Defogger
›
Notes
Rear Window Defogger: Notes

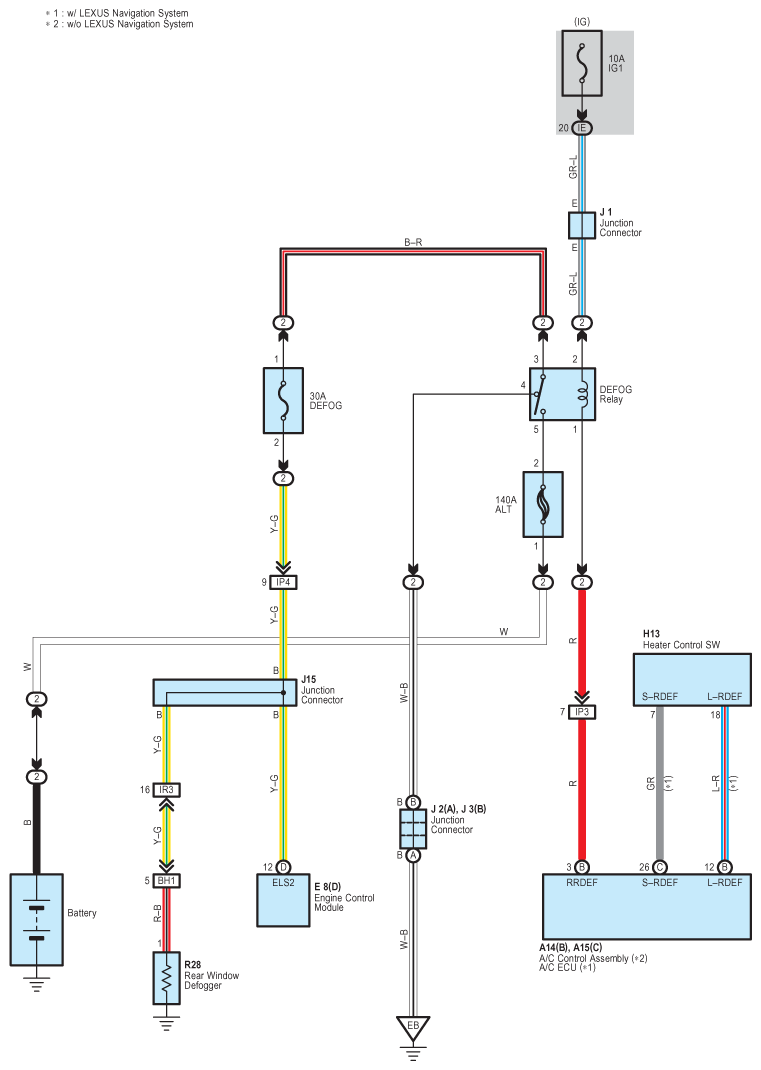

Fig 1: Rear Window Defogger Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
