Shift Lock: Notes

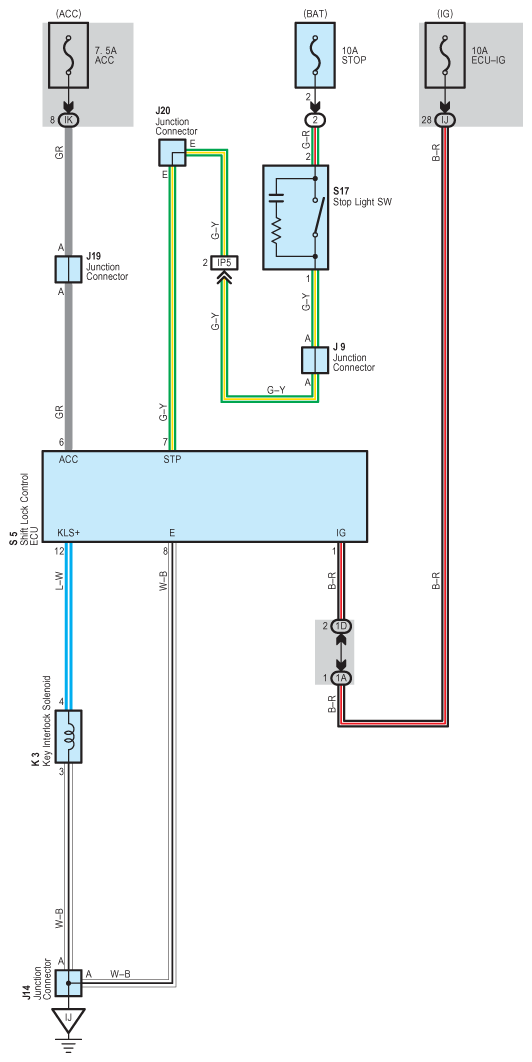

Fig 1: Shift Lock Wiring Diagram

G08910147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
