OEM System Circuits: Starting: Notes

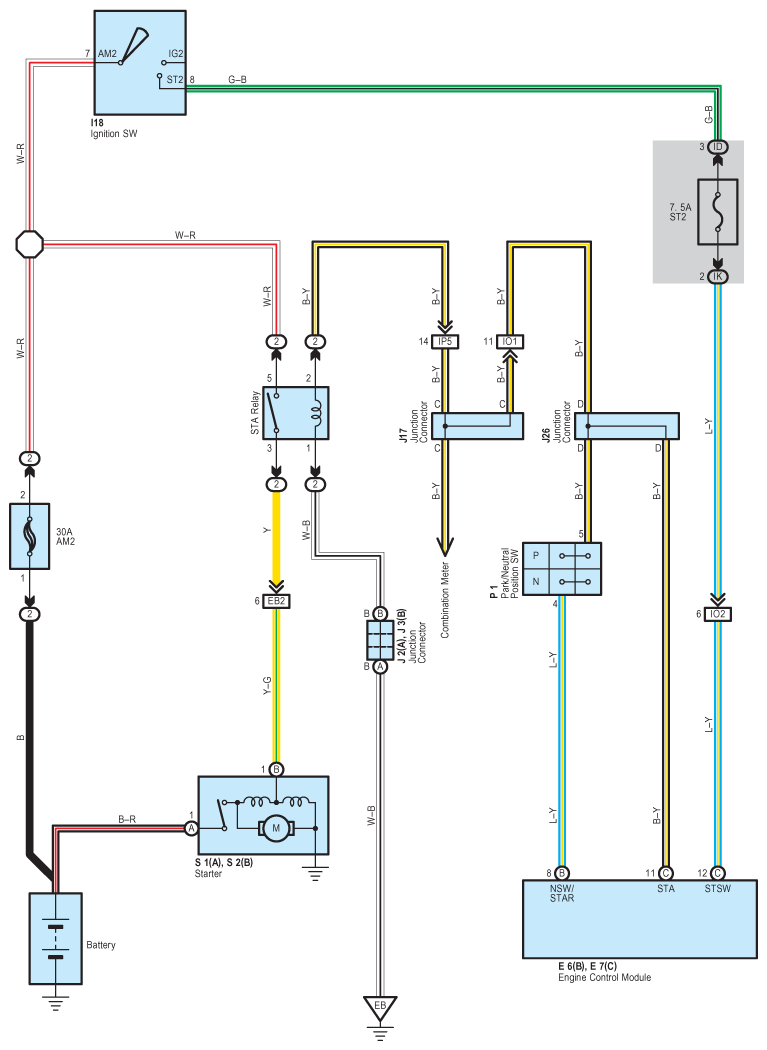

Fig 1: Starting Wiring Diagram
G08910009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
