Lexus
›
2006
›
GX 470
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Trailer Towing
›
Notes
Trailer Towing: Notes

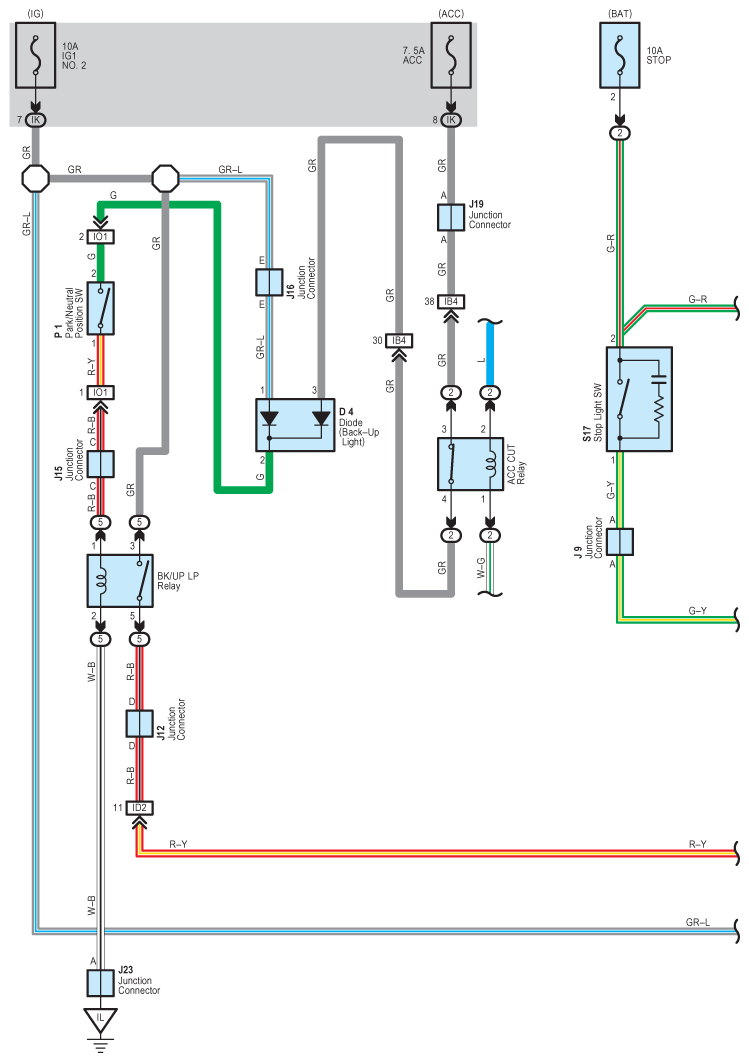

Fig 1: Trailer Towing Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

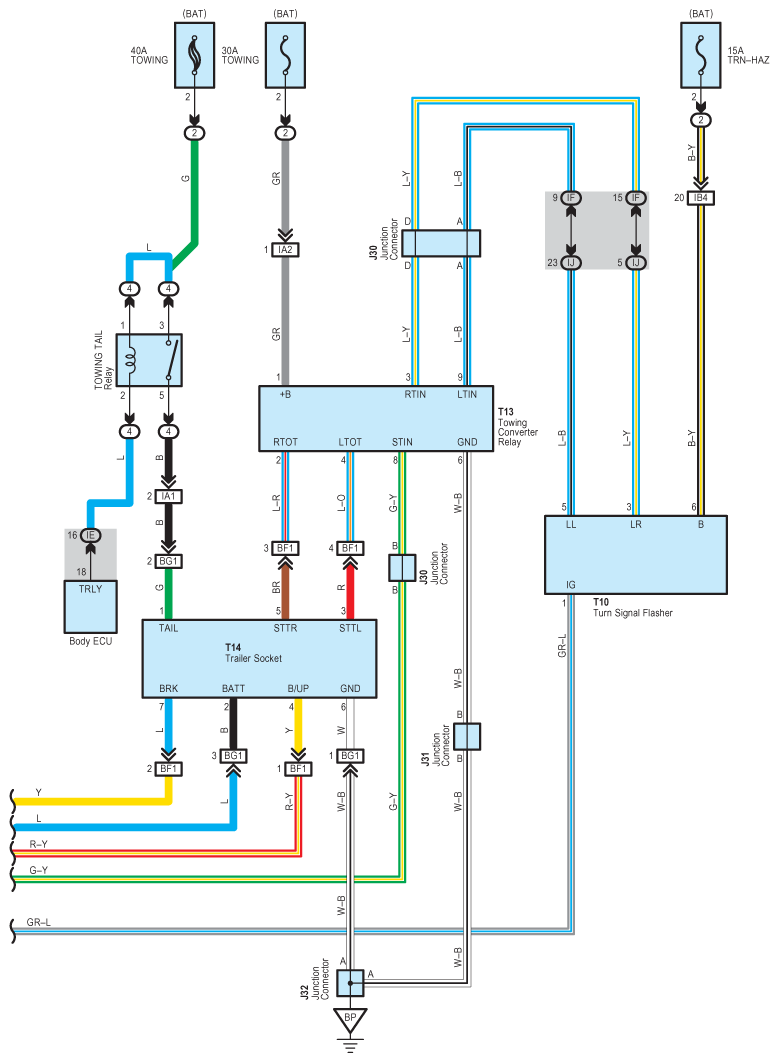

Fig 2: Trailer Towing Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

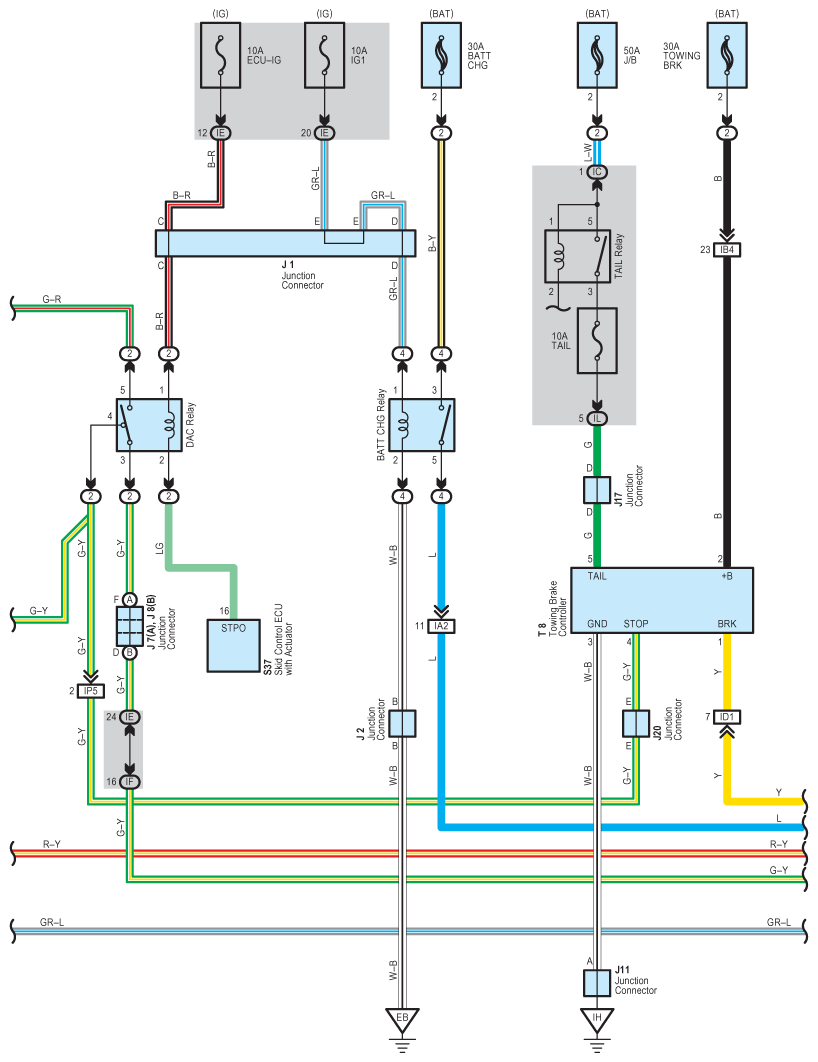

Fig 3: Trailer Towing Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
