Knock Sensor, Intake Manifold (2UZ-FE): Components

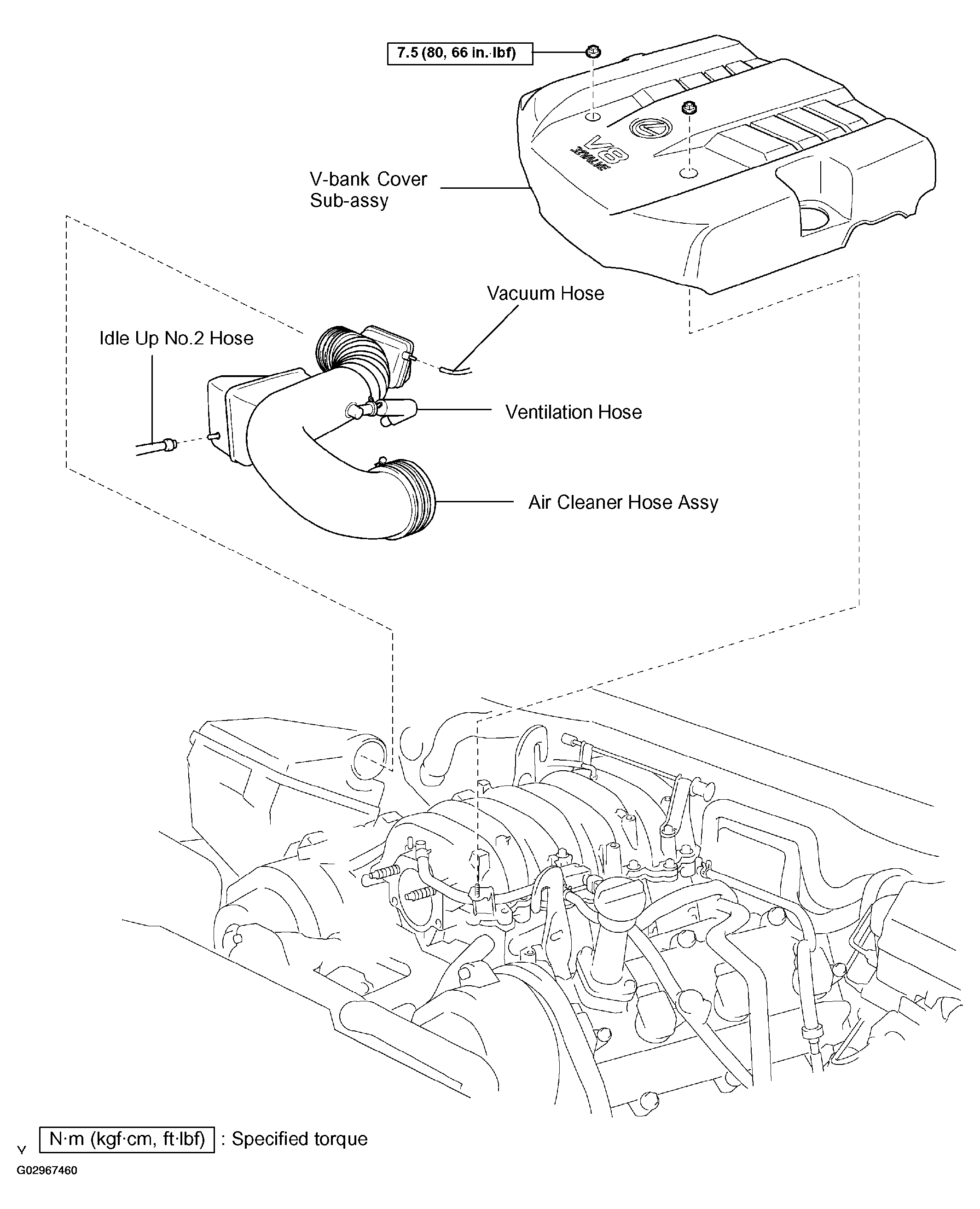

Fig 1: Removal & Installation Of Knock Sensor (With Specifications - 2UZ-FE)
G02967460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

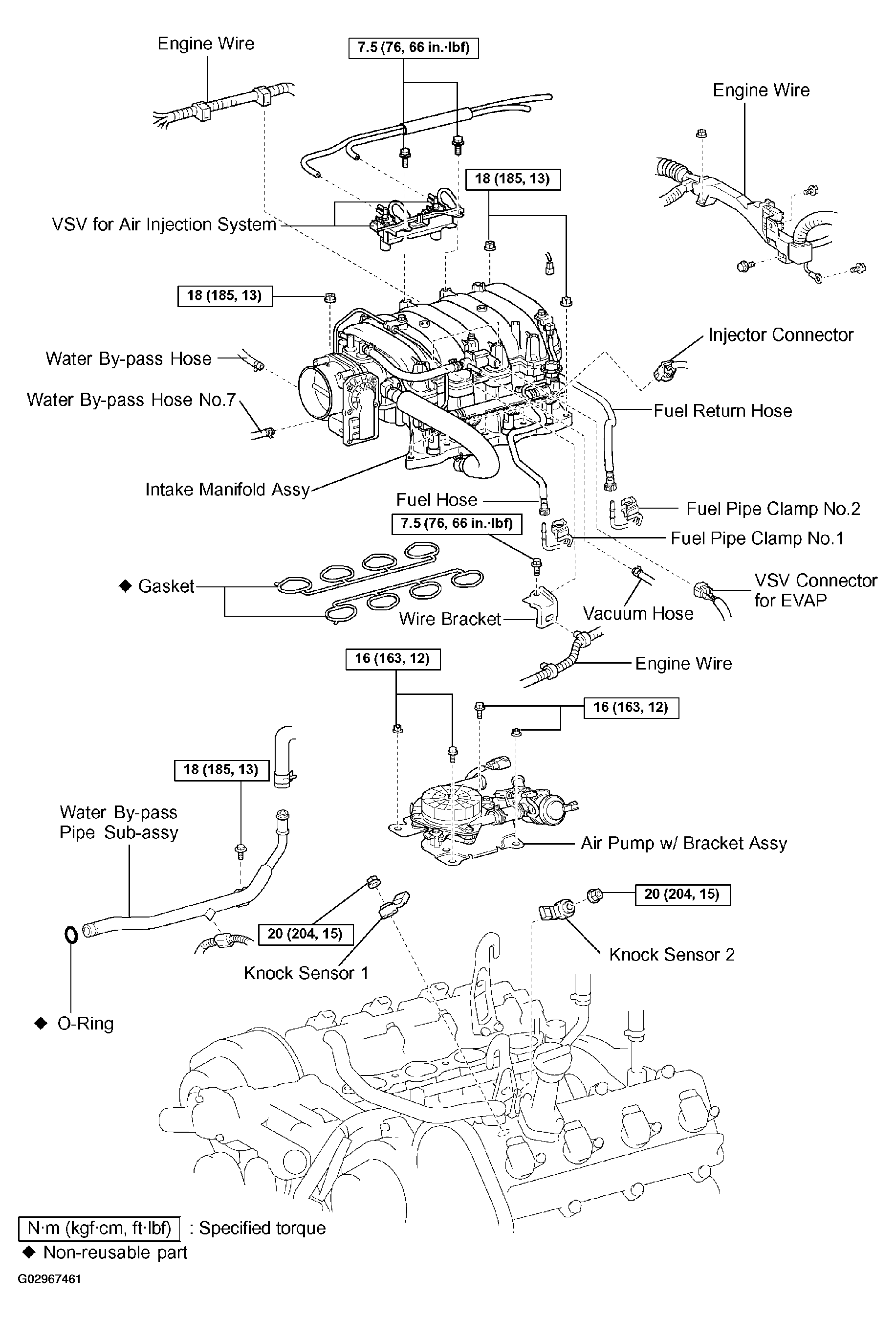

Fig 2: Exploded View Of Knock Sensor (With Specifications - 2UZ-FE)
G02967461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
