Repair and Diagnosis
›
Engine Performance
›
System
›
SFI System - Diagnostics
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

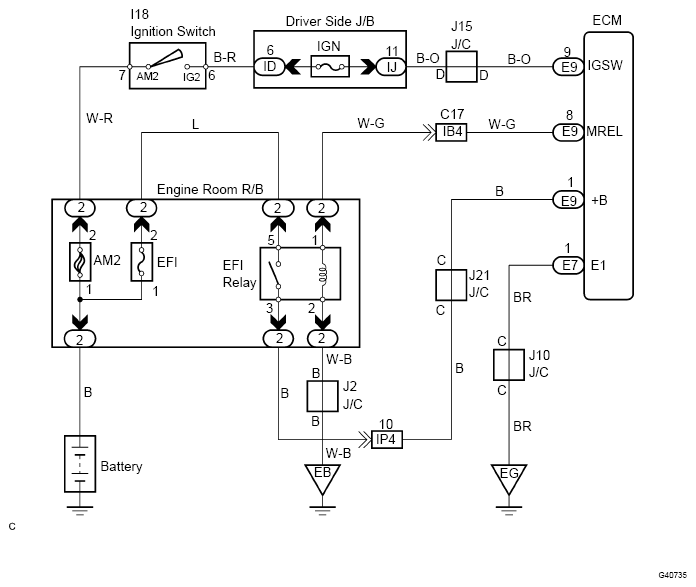

Fig 1: Wiring Diagram Of ECM Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
