EVAP Inspection Procedure: Wiring Diagram

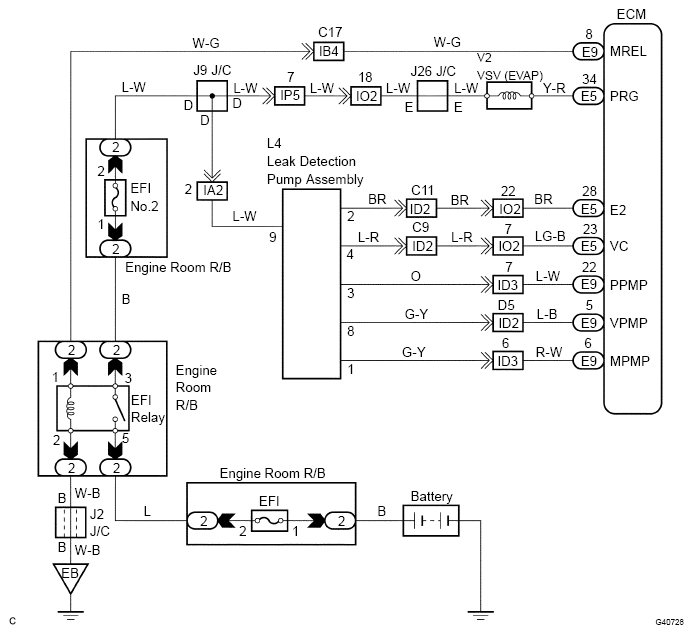

Fig 1: Wiring Diagram Of EVAP
G04676470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
