Lexus
›
2006
›
GX 470
›
Repair and Diagnosis
›
Engine Performance
›
System
›
SFI System - Diagnostics
›
IACV Control Circuit
›
Wiring Diagram
IACV Control Circuit: Wiring Diagram

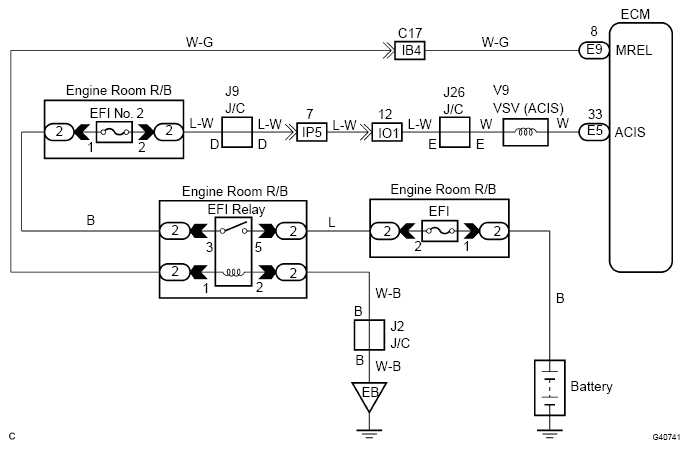

Fig 1: Wiring Diagram Of IACV Control Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
