SFI System - Diagnostics: Location

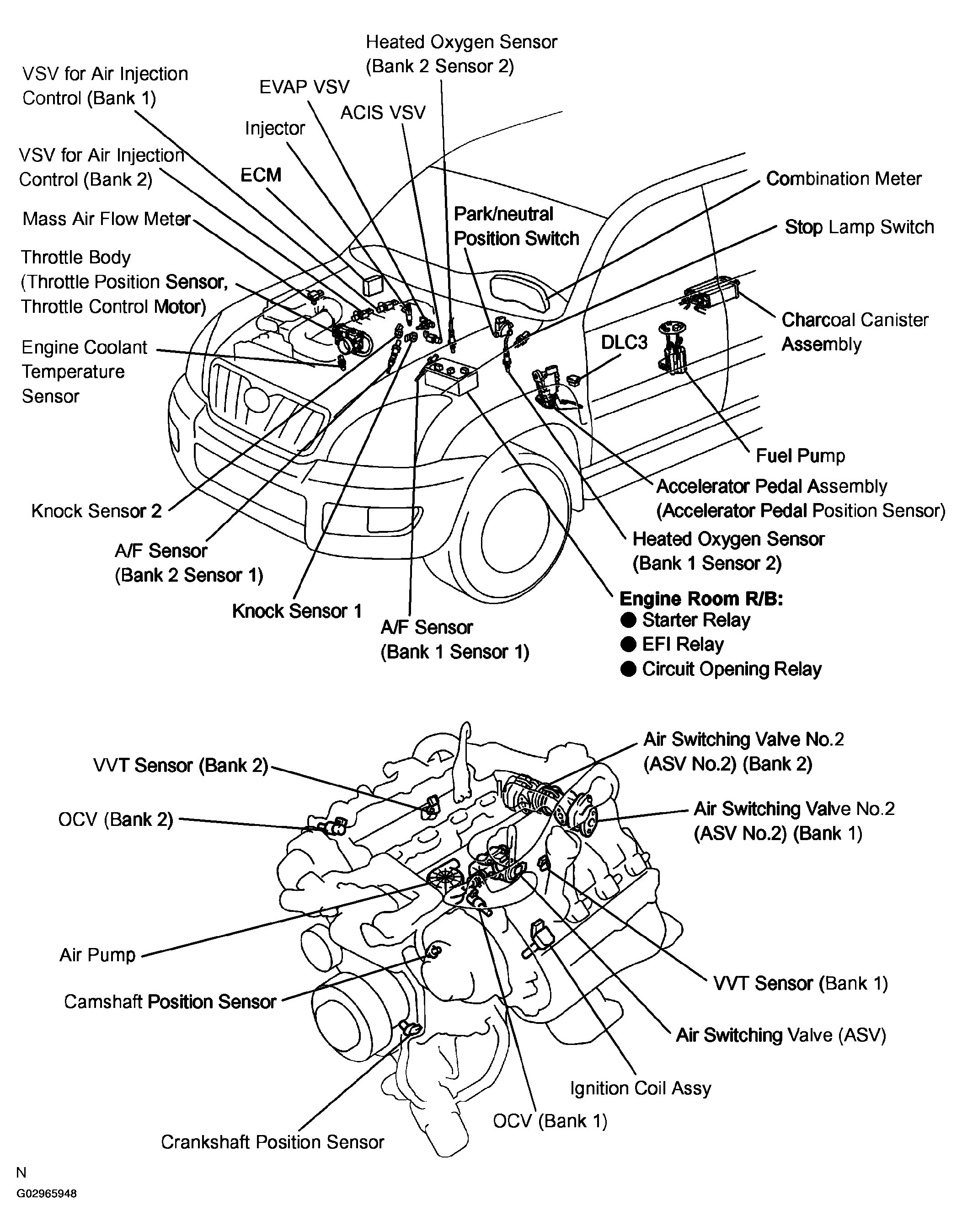

Fig 1: Locating SFI System (2UZ-FE)

G02965948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
