Mil Circuit: Wiring Diagram

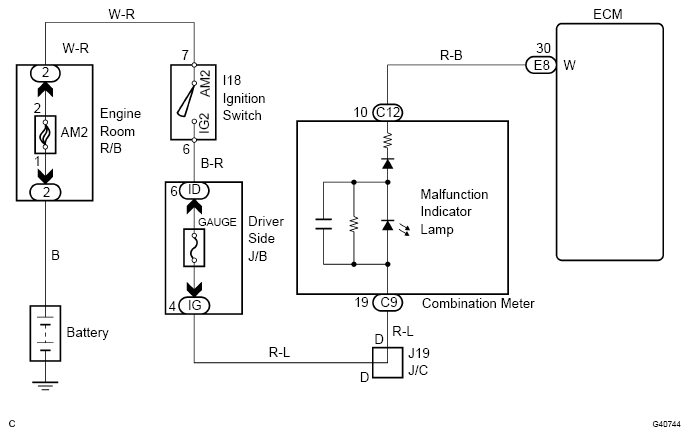

Fig 1: Wiring Diagram Of MIL Circuit

G04676540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
