Parts Location

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

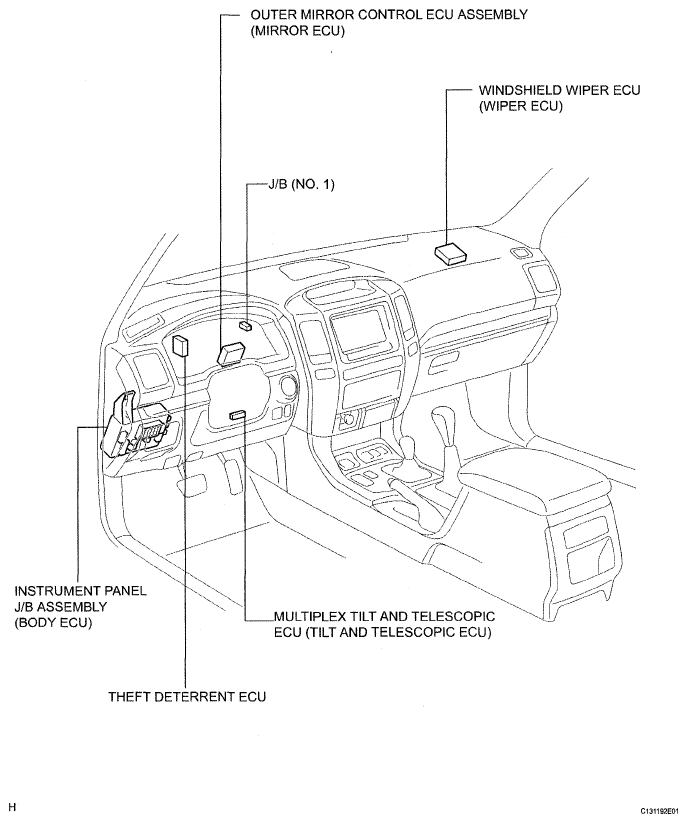

Fig 1: Identifying Multiplex Communication System Components (1 Of 2)
G05267201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

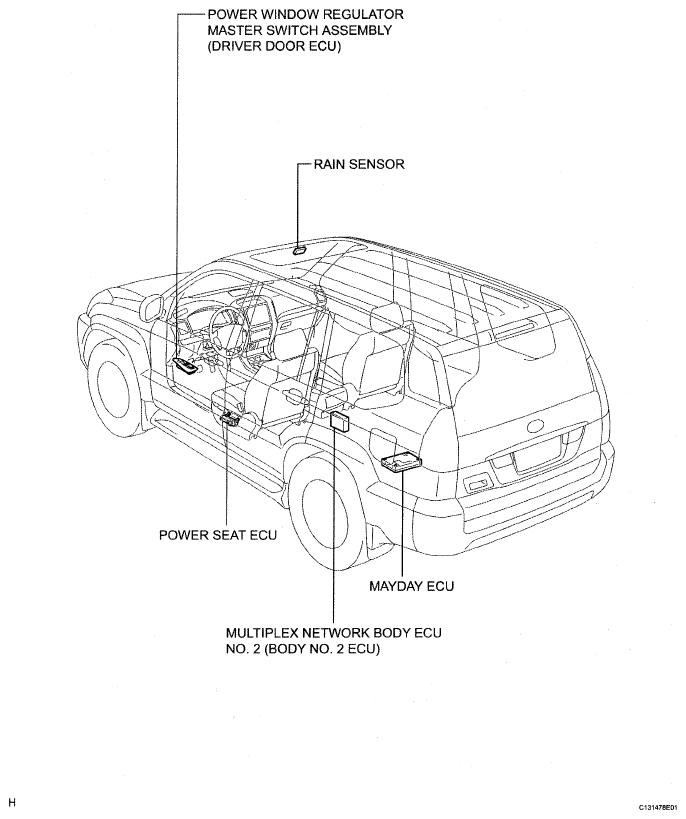

Fig 2: Identifying Multiplex Communication System Components (2 Of 2)
G05267202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
