INSTALL NAVIGATION ANTENNA ASSEMBLY

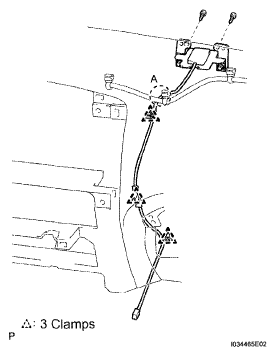

Fig 1: Identifying Navigation Antenna Assembly Clamps & Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Pass the navigation antenna cord under the radio antenna cord.
1. Install the navigation antenna assembly with the 2 screws.
2. Install the 3 clamps.
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT:

Refer to the instructions for removal of the instrument panel sub-assembly (See INSTALLATION ).
