System Diagram

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

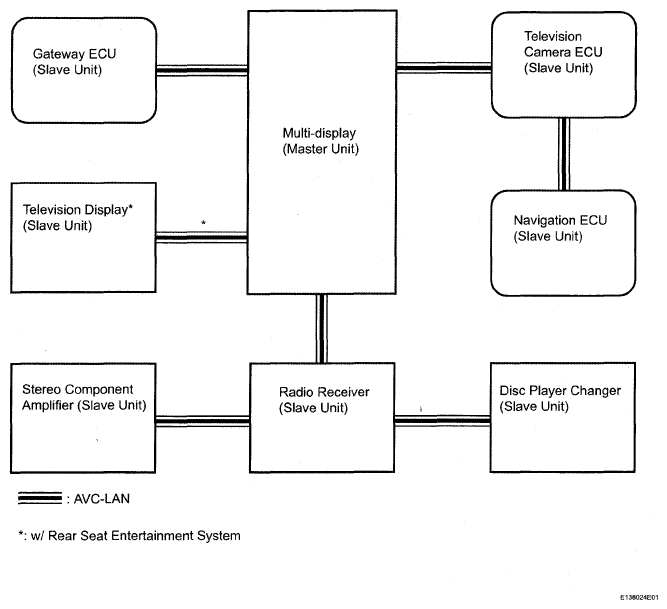

Fig 1: Identifying Navigation System Diagram (1 Of 2)
G05266323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

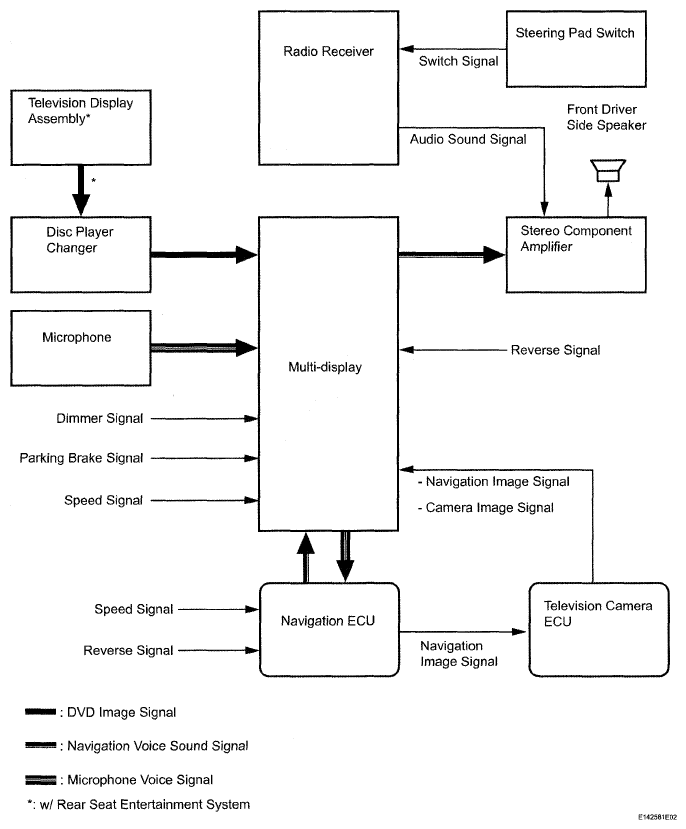

Fig 2: Identifying Navigation System Diagram (2 Of 2)
G05266324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
