Mayday Ecu: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

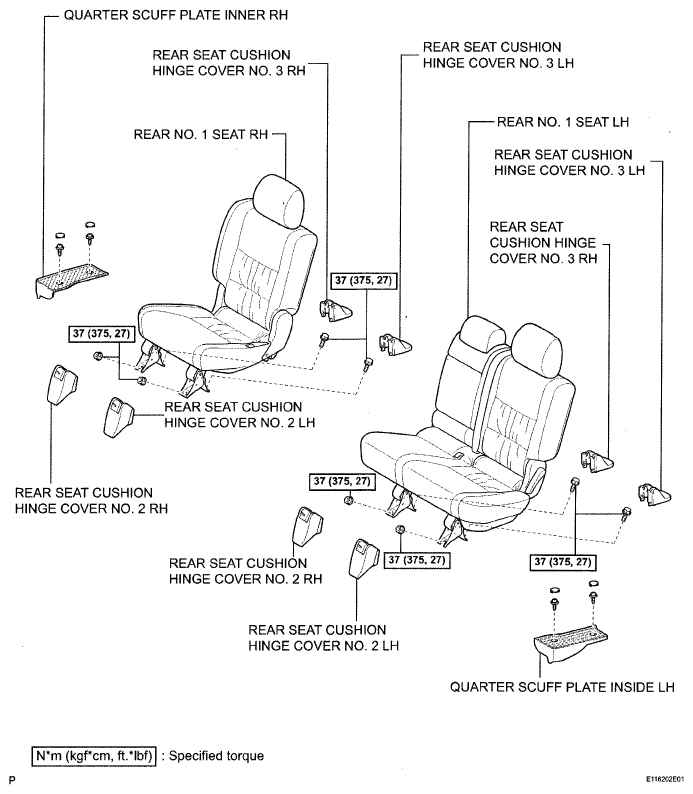

Fig 1: Mayday ECU Replacement Components With Torque Specifications (1 Of 3)
G05266666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

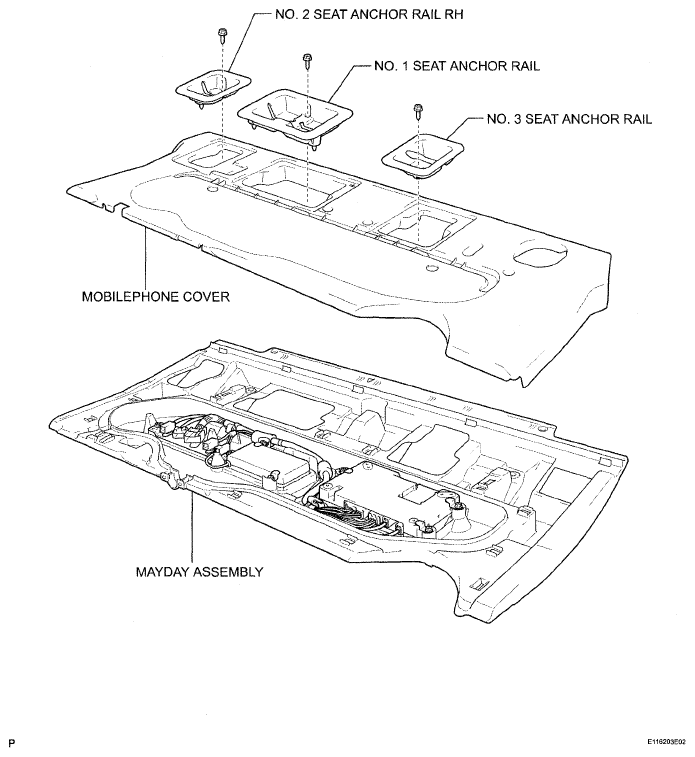

Fig 2: Identifying Mayday ECU Replacement Components (2 Of 3)
G05266667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

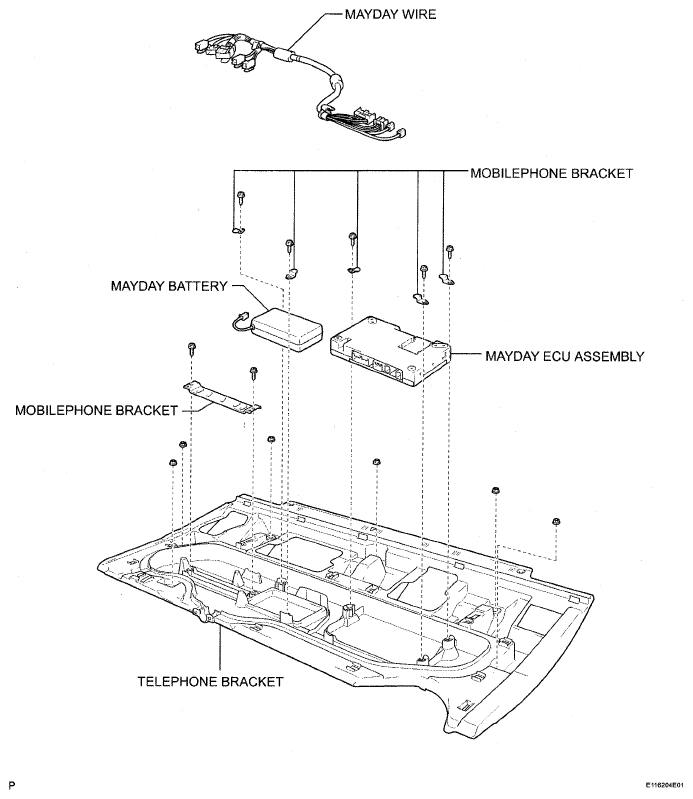

Fig 3: Identifying Mayday ECU Replacement Components (3 Of 3)
G05266668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
