Amplifier Antenna: Components

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

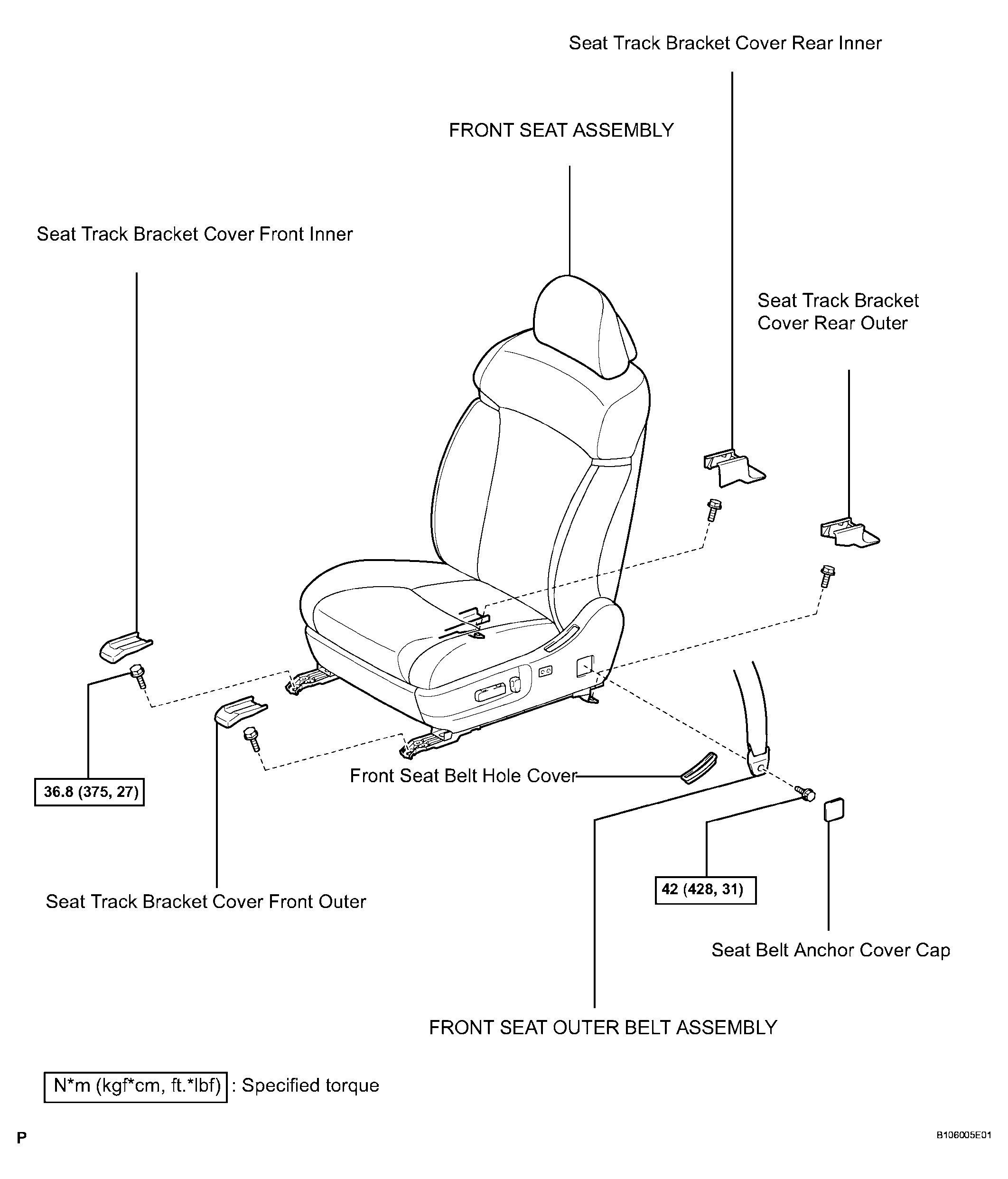

Fig 1: Amplifier Antenna Replacement Components With Torque Specifications (1 Of 8)

G04022246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

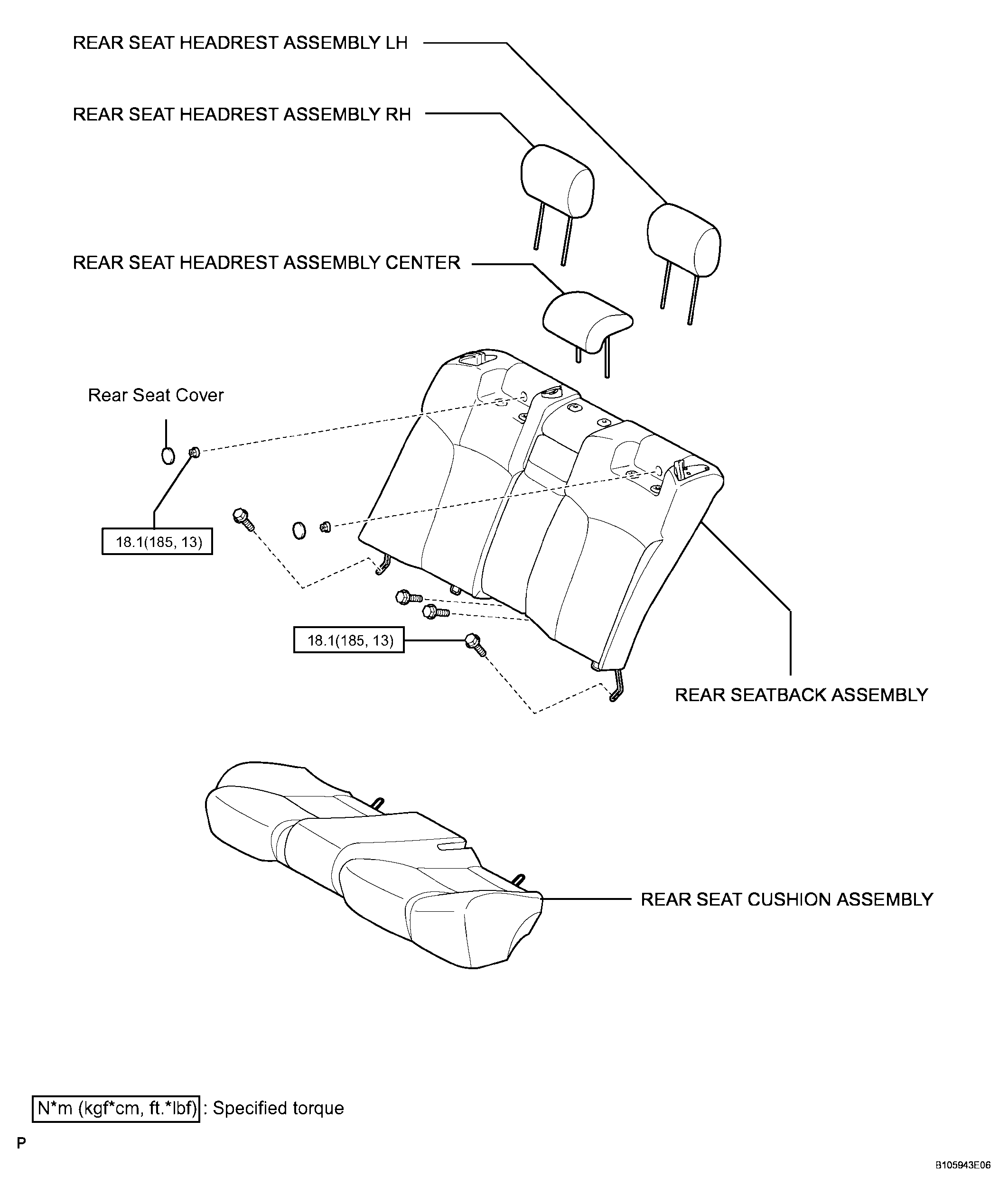

Fig 2: Amplifier Antenna Replacement Components With Torque Specifications (2 Of 8)

G04022247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

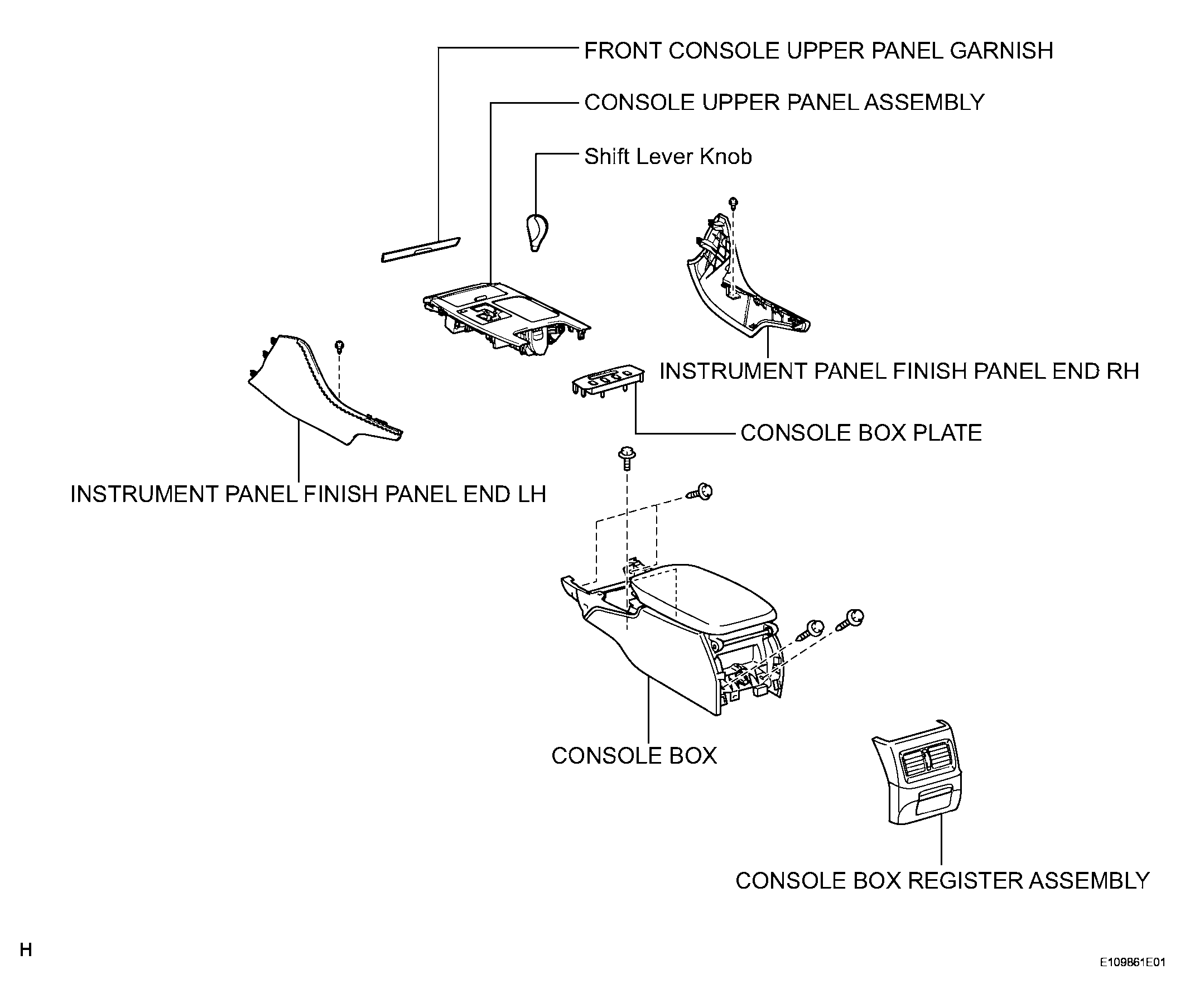

Fig 3: Identifying Amplifier Antenna Components (3 Of 8)

G04022248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Amplifier Antenna Components (4 Of 8)

G04022249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Amplifier Antenna Components (5 Of 8)

G04022250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Amplifier Antenna Components (6 Of 8)

G04022251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Amplifier Antenna Components (7 Of 8)

G04022252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

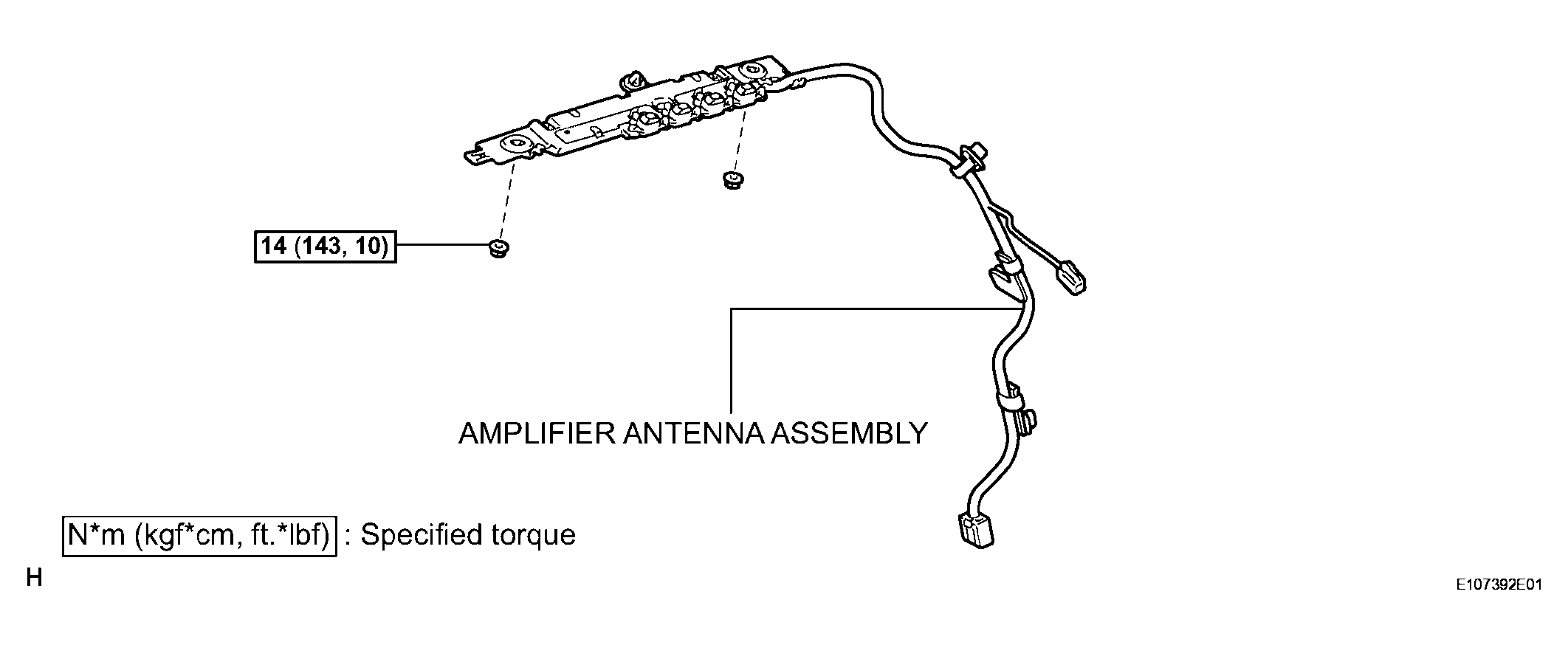

Fig 8: Amplifier Antenna Replacement Components With Torque Specifications (8 Of 8)

G04022253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
