Microphone Amplifier: Installation
WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL MICROPHONE AMPLIFIER ASSEMBLY

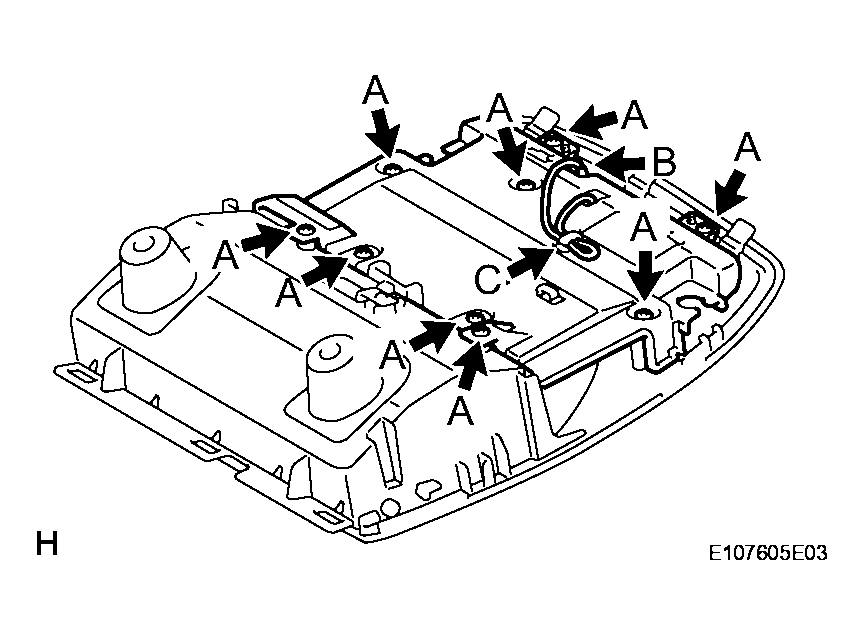

- Install the microphone amplifier to the map light.
- Install the cover to the map light with the 9 screws labeled A.
- Connect the connector labeled B.
- Install the microphone amplifier cord to the cover labeled C.
- INSTALL PERSONAL LIGHT ASSEMBLY (See INSTALLATION )
- INSTALL FRONT ROOF TOP GARNISH (See INSTALLATION )
- INSTALL INNER REAR VIEW MIRROR COVER
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (See INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (See INITIALIZATION
).
