Stereo Component Speaker: Components

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Stereo Component Speaker Replacement Components With Torque Specifications (1 Of 2)
G04022221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

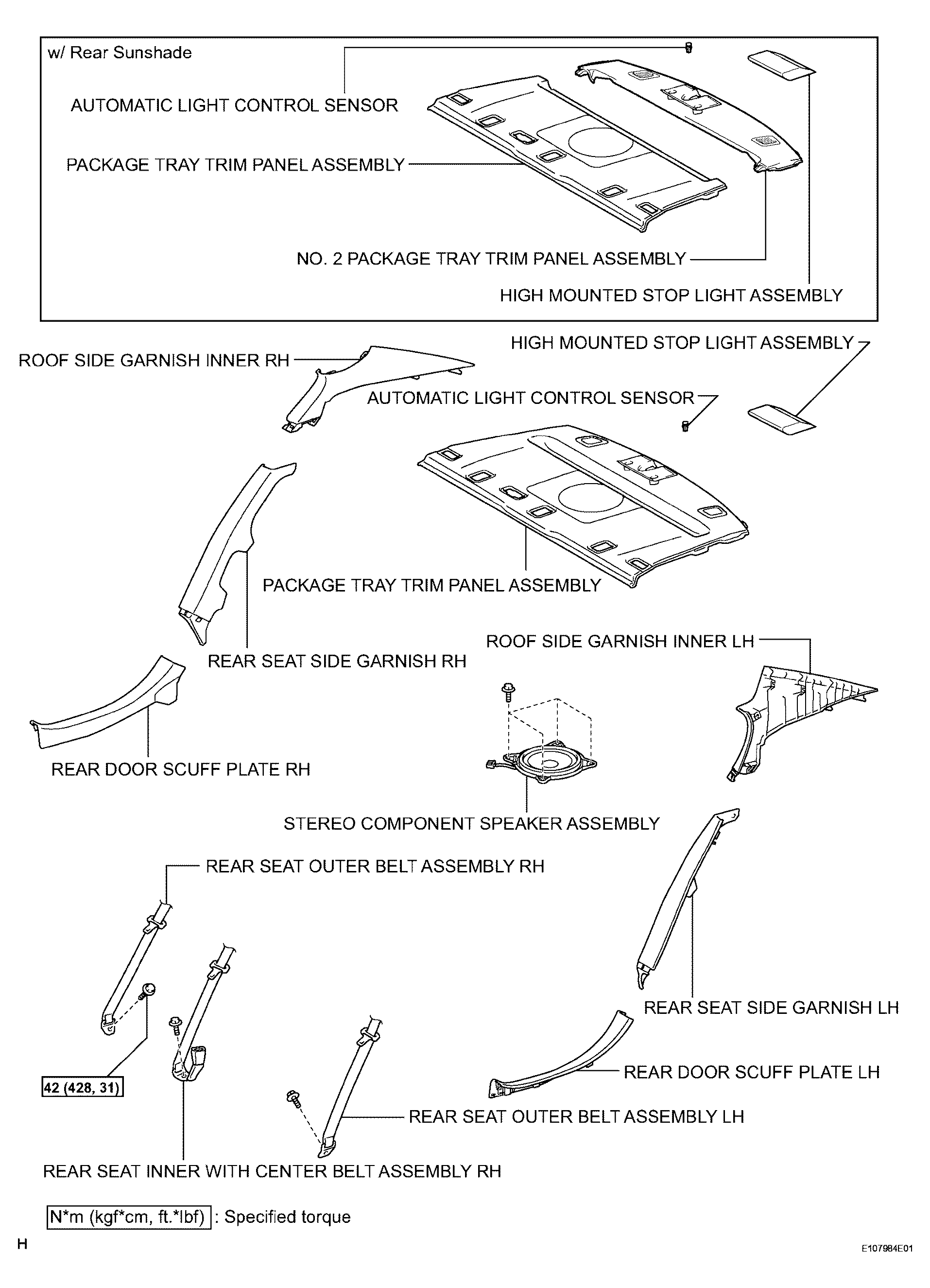

Fig 2: Stereo Component Speaker Replacement Components With Torque Specifications (2 Of 2)
G04022222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
