Navigation Antenna: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NAVIGATION ANTENNA
    1. Install the navigation antenna with the 3 screws and attach the 4 clips.
  2. INSTALL NO. 1 HEATER TO REGISTER DUCT (See  INSTALLATION  )
  3. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT (See  INSTALLATION  )
  4. INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY (See  INSTALLATION  )
  5. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  6. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  7. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  8. INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY (See  INSTALLATION  )
  9. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  10. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  11. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (See  INSTALLATION  )
  12. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  13. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (See  INSTALLATION  )
  14. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )

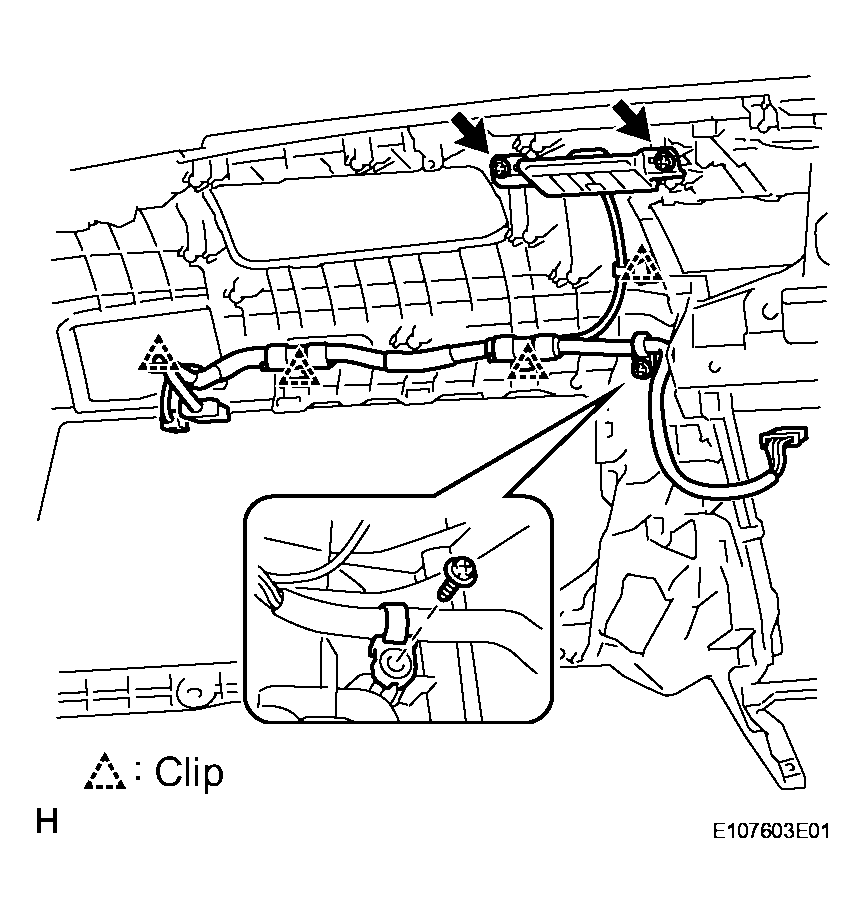

    Fig 1: Identifying Navigation Antenna
    G04022823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INSTRUMENT SIDE PANEL LH (See  INSTALLATION  )
  16. INSTALL INSTRUMENT SIDE PANEL RH (See  INSTALLATION  )
  17. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )
  18. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  19. INSTALL CONSOLE BOX (See  INSTALLATION  )
  20. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  21. INSTALL CONSOLE BOX PLATE (See  INSTALLATION  )
  22. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  23. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  24. INSTALL CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  25. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  26. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY (See  INSTALLATION  )
  27. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See  INSTALLATION  )
  28. INSTALL SPIRAL CABLE WITH STEERING SENSOR (See  INSTALLATION  )
  29. INSTALL STEERING COLUMN COVER (See  INSTALLATION  )
  30. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  31. INSTALL STEERING PAD (See  INSTALLATION  )
  32. INSTALL NO. 2 STEERING WHEEL COVER LOWER
  33. INSTALL NO. 3 STEERING WHEEL COVER LOWER
  34. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  35. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  36. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  37. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  39. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  40. CHECK SRS WARNING LIGHT
    1. Check SRS warning light (See PRECAUTION ).
