Parts Location

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

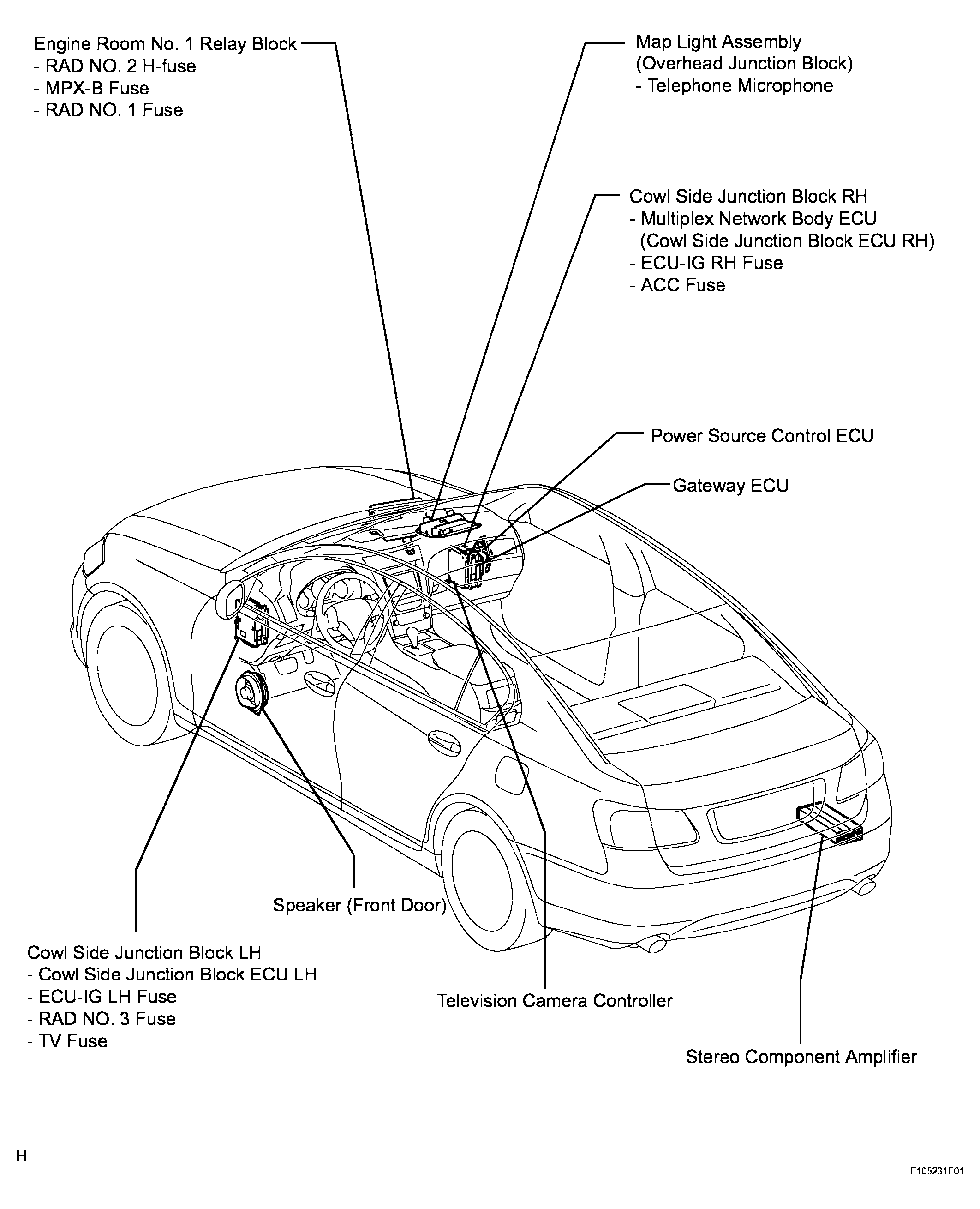

Fig 1: Navigation System Components Location (1 Of 2)
G04022648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

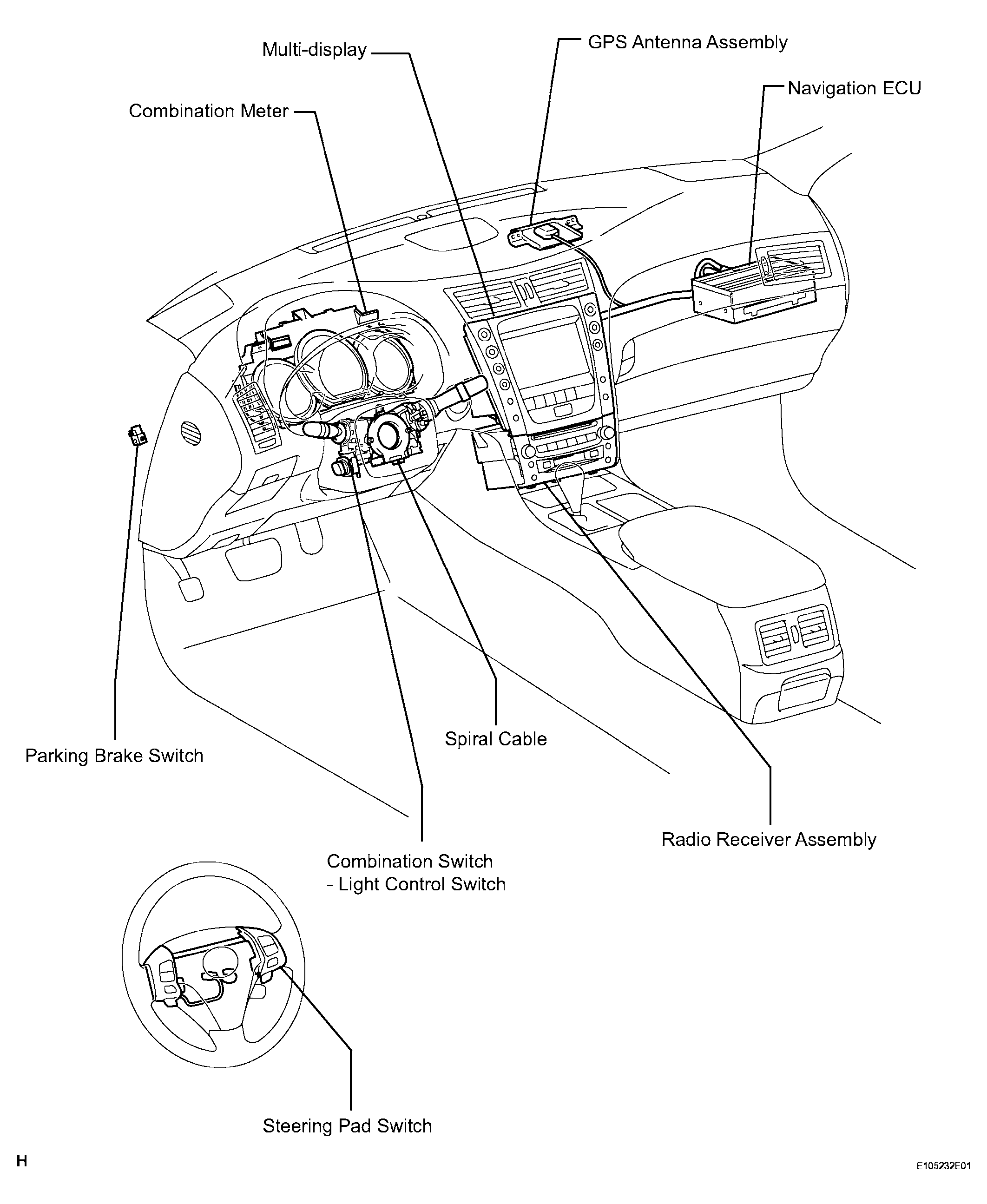

Fig 2: Navigation System Components Location (2 Of 2)
G04022649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
