Rear Console Box: Disassembly

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR CONSOLE ARMREST ASSEMBLY
1. Remove the 4 screws and armrest.

  Fig 1: Identifying Screws And Armrest
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX SUB-ASSEMBLY UPPER
1. Remove the console box as shown in the illustration.

  Fig 2: Identifying Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

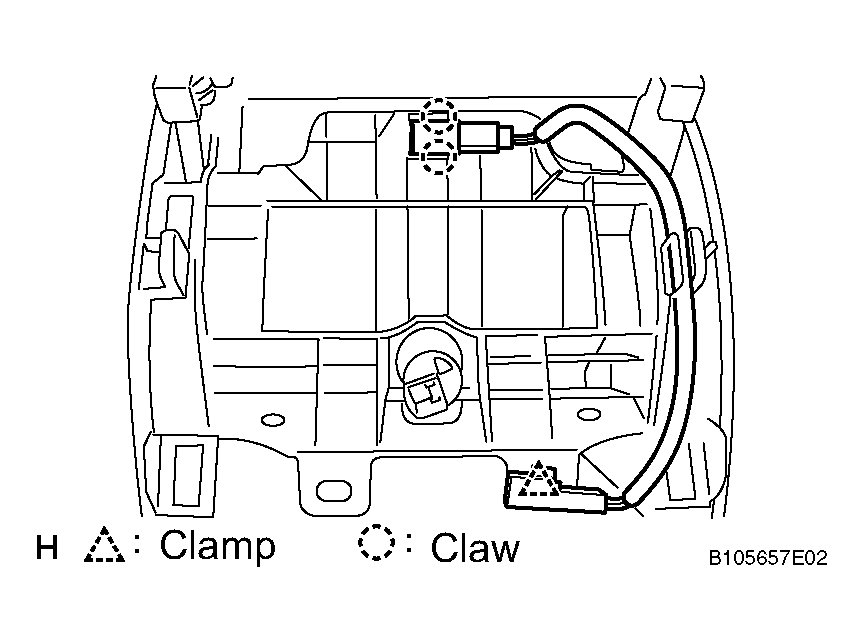

REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
1. Using a screwdriver, detach the clamp and 2 claws.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the light.

  Fig 3: Identifying Console Box Illumination Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER OUTLET SOCKET ASSEMBLY (See REMOVAL )
REMOVE POWER POINT SOCKET COVER
1. Using a screwdriver, detach the 2 claws and remove the socket cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 4: Identifying Screws And Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX NO. 5 MOUNTING BRACKET
1. Remove the 2 screws and bracket.
