Rear Console Box: Reassembly

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CONSOLE BOX NO. 5 MOUNTING BRACKET
1. Install the bracket with the 2 screws.
INSTALL POWER POINT SOCKET COVER
1. Attach the 2 claws to install the socket cover.

  Fig 1: Identifying Claws To Install Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER OUTLET SOCKET ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
1. Attach the clamp and 2 claws to install the light.

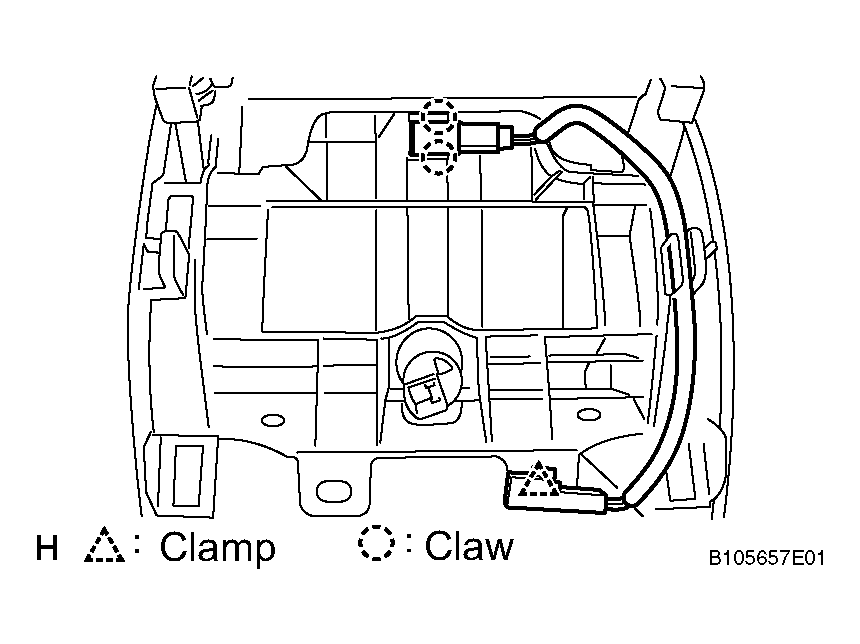

  Fig 2: Identifying Console Box Illumination Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX SUB-ASSEMBLY UPPER
1. Install the console box, as shown in the illustration.

  Fig 3: Identifying Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CONSOLE ARMREST ASSEMBLY
1. Install the armrest with the 4 screws.

  Fig 4: Identifying Armrest With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
