Front Differential Carrier Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

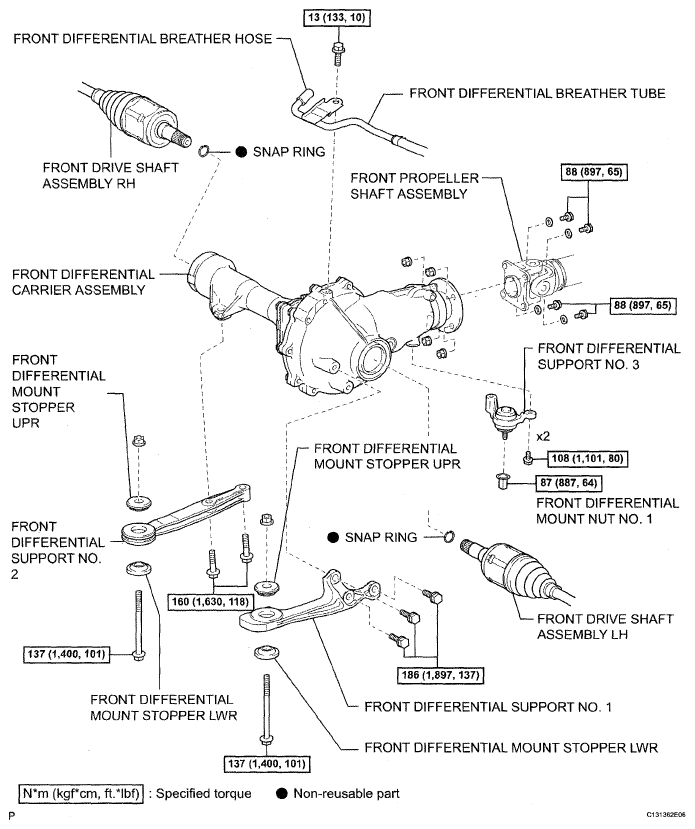

Fig 1: Identifying Front Differential Carrier Assembly Replacement Components With Torque Specifications (1 Of 4)
G05261930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

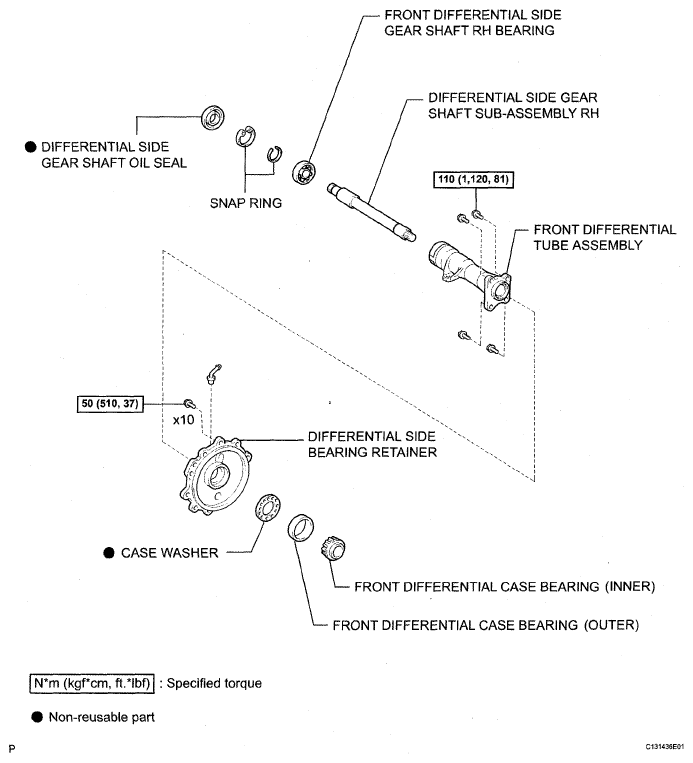

Fig 2: Identifying Front Differential Carrier Assembly Replacement Components With Torque Specifications (2 Of 4)
G05261931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

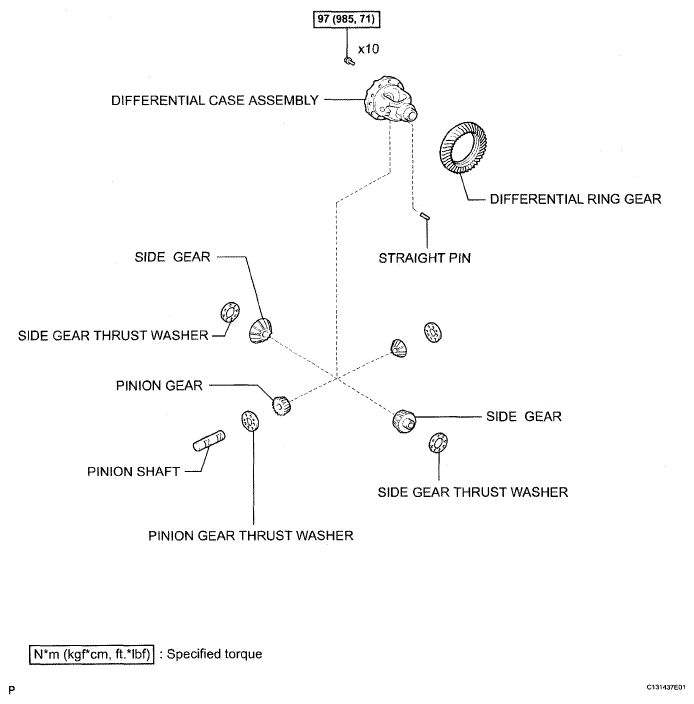

Fig 3: Identifying Front Differential Carrier Assembly Replacement Components With Torque Specification (3 Of 4)
G05261932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

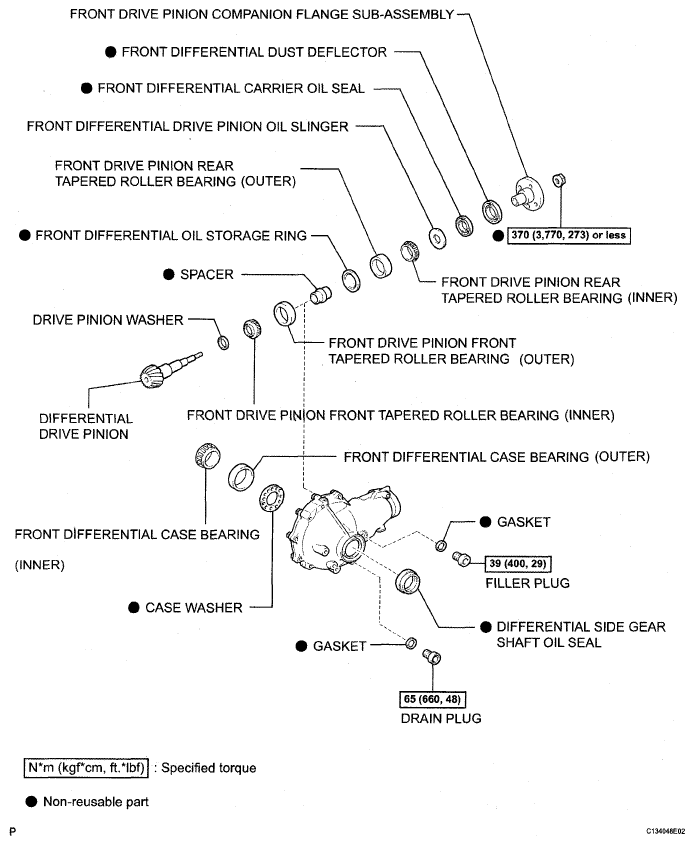

Fig 4: Identifying Front Differential Carrier Assembly Replacement Components With Torque Specifications (4 Of 4)
G05261933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
