Back-Up Light Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

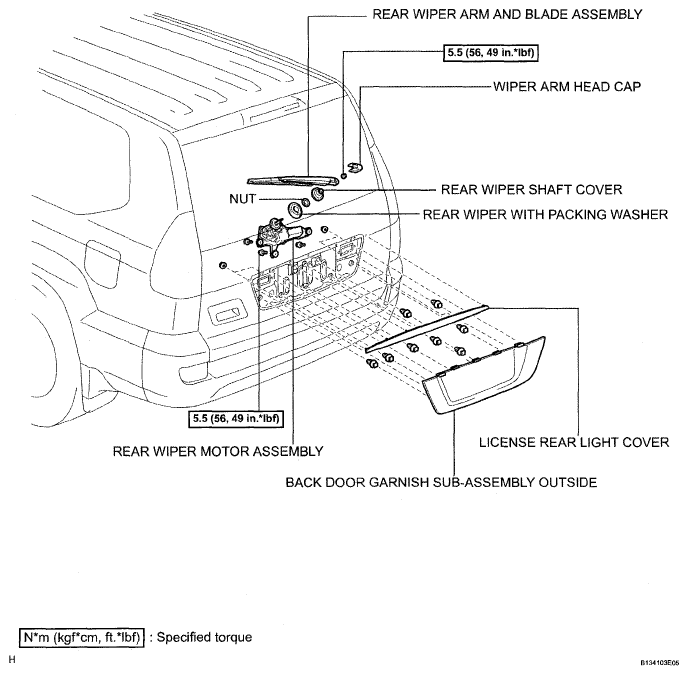

Fig 1: Identifying Back-Up Light Assembly Replacement Components (1 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

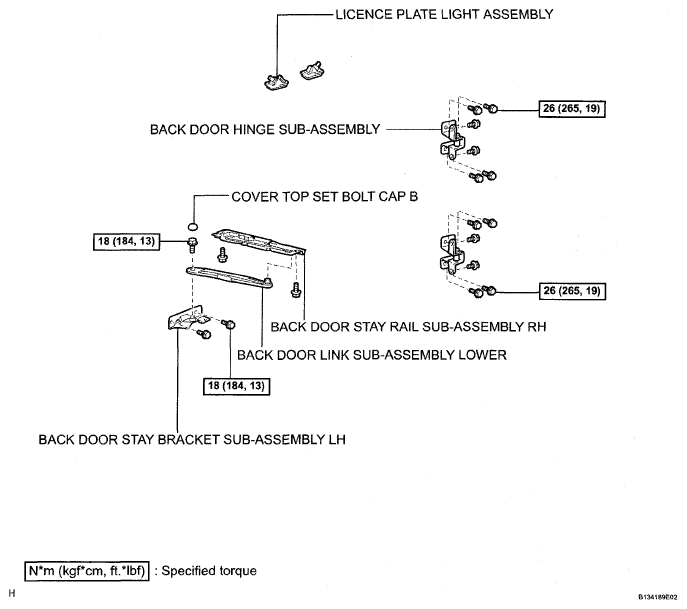

Fig 2: Identifying Back-Up Light Assembly Replacement Components (2 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Back-Up Light Assembly Replacement Components (3 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Back-Up Light Assembly Replacement Components (4 Of 5)

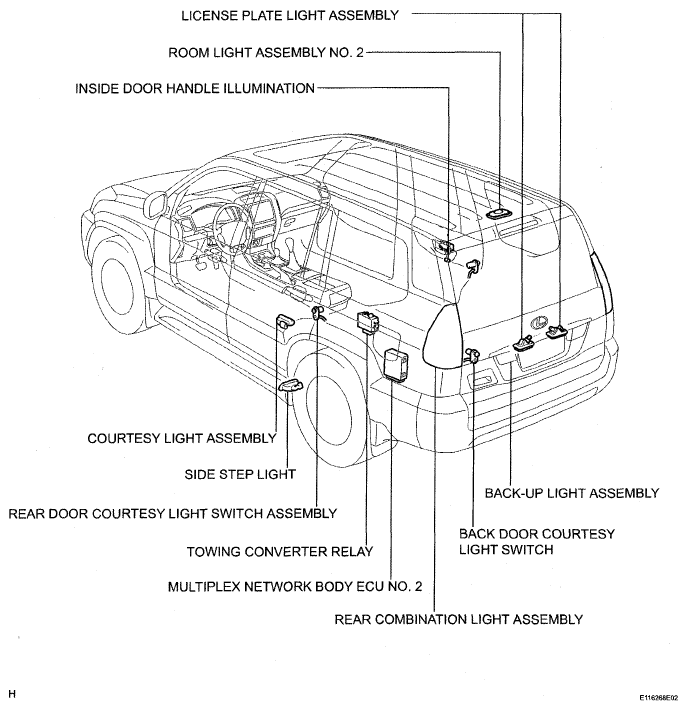

Fig 5: Identifying Back-Up Light Assembly Replacement Components (5 Of 5)
