Automatic Transmission ASSY: Components

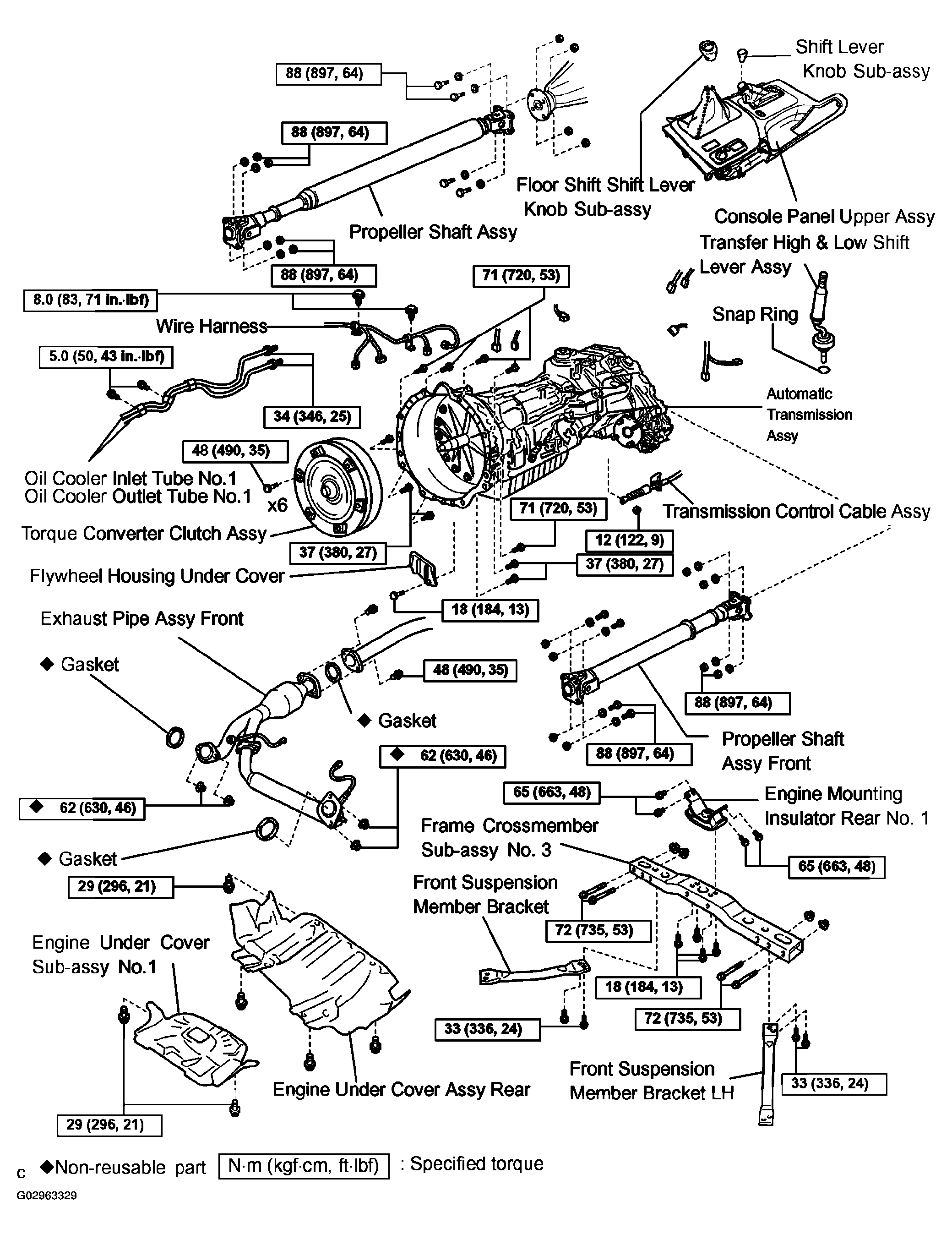

Fig 1: Identifying Automatic Transmission Assy Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
