Height Control Sensor: Components

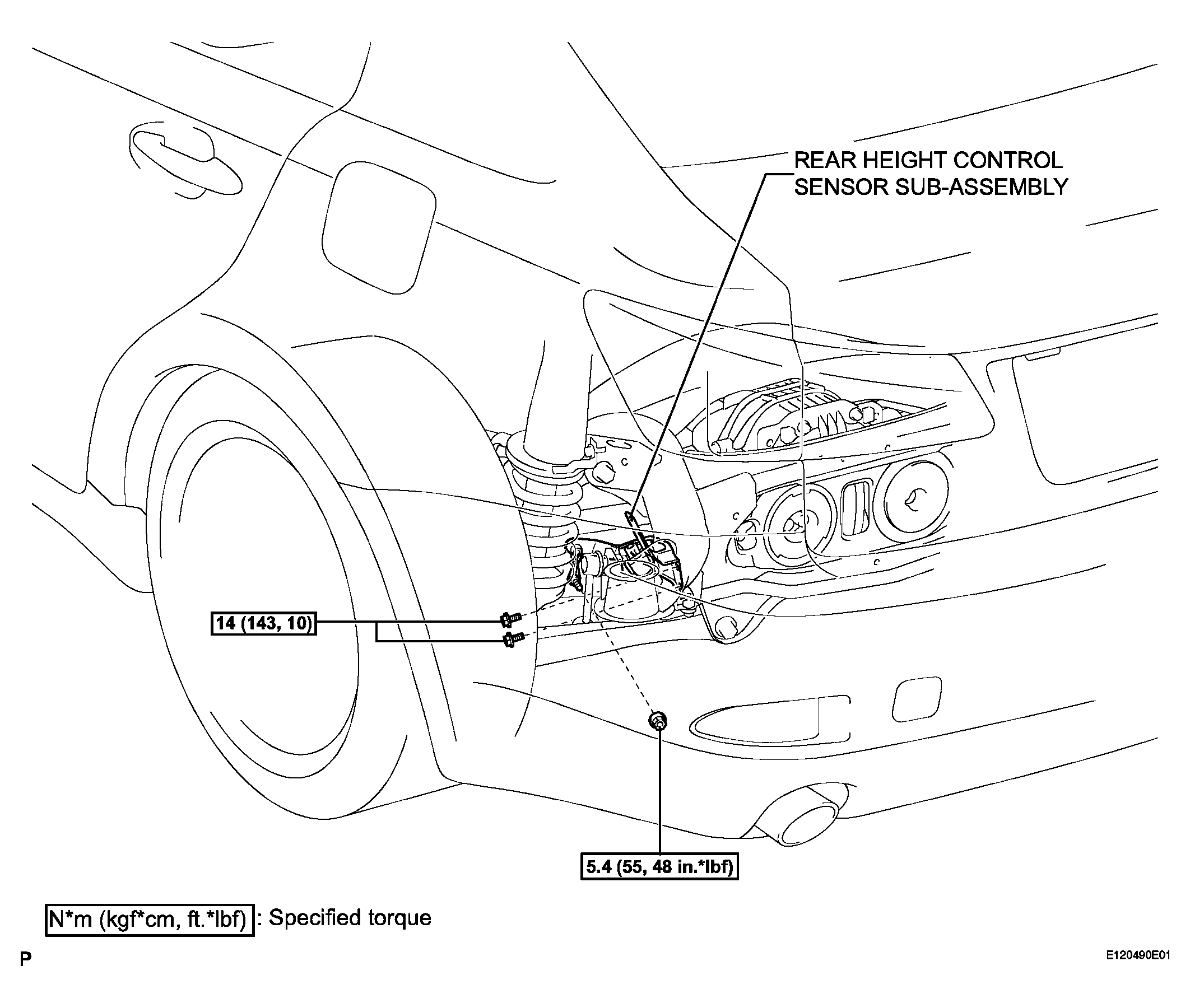

Fig 1: Height Control Sensor Replacement Components (1 Of 2) With Torque Specifications

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

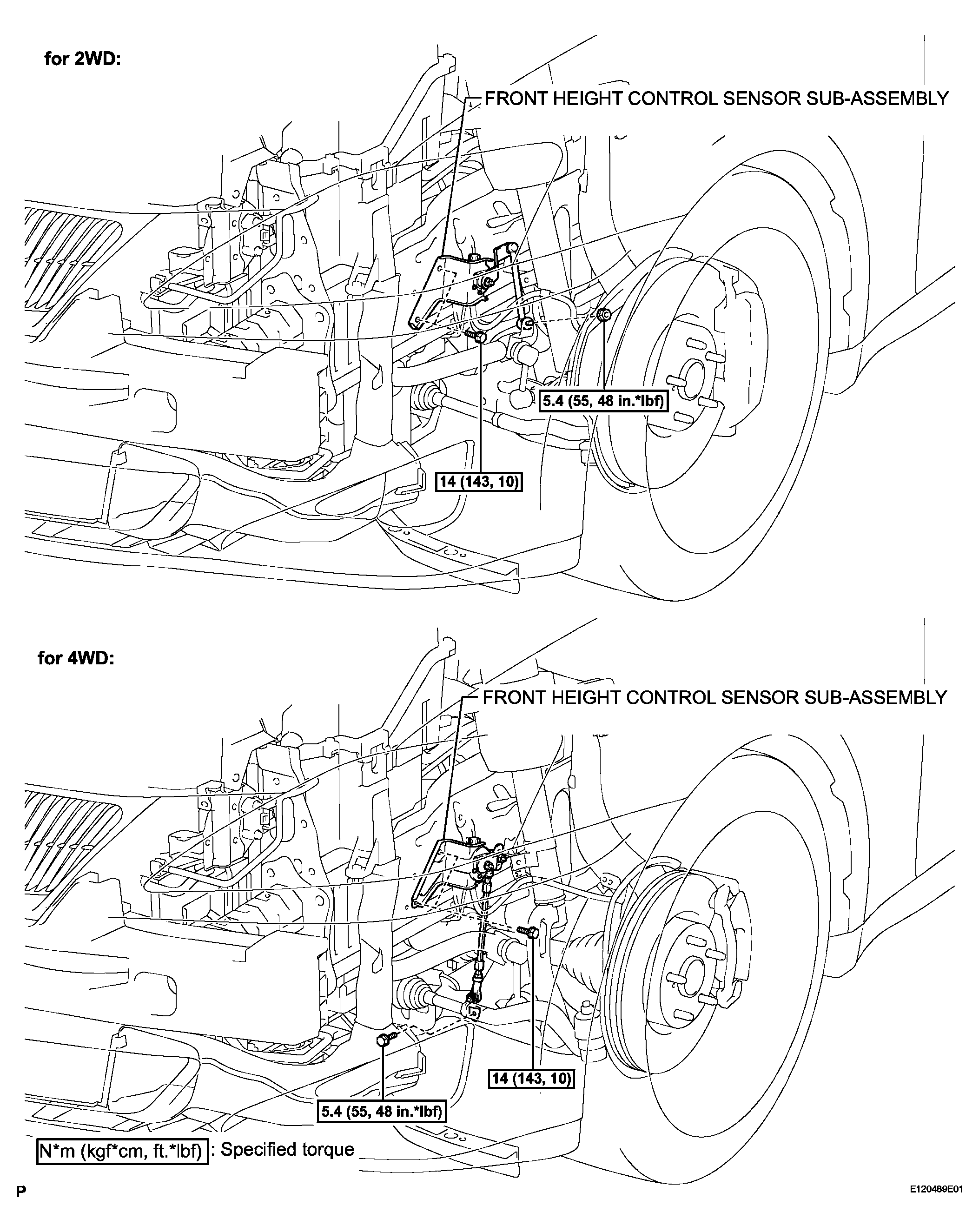

Fig 2: Height Control Sensor Replacement Components (2 Of 2) With Torque Specifications

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
