Pattern Select Switch: Installation

  1. INSTALL NO. 1 PATTERN SELECT SWITCH ASSEMBLY
    1. Engage the 2 claws and install the pattern select switch to the switch base.
    Fig 1: Installing Claws & Pattern Select Switch To Switch Base
    G04045312Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  2. INSTALL SWITCH BASE
    1. Engage the 4 claws and install the switch base to the lower instrument panel finish panel.

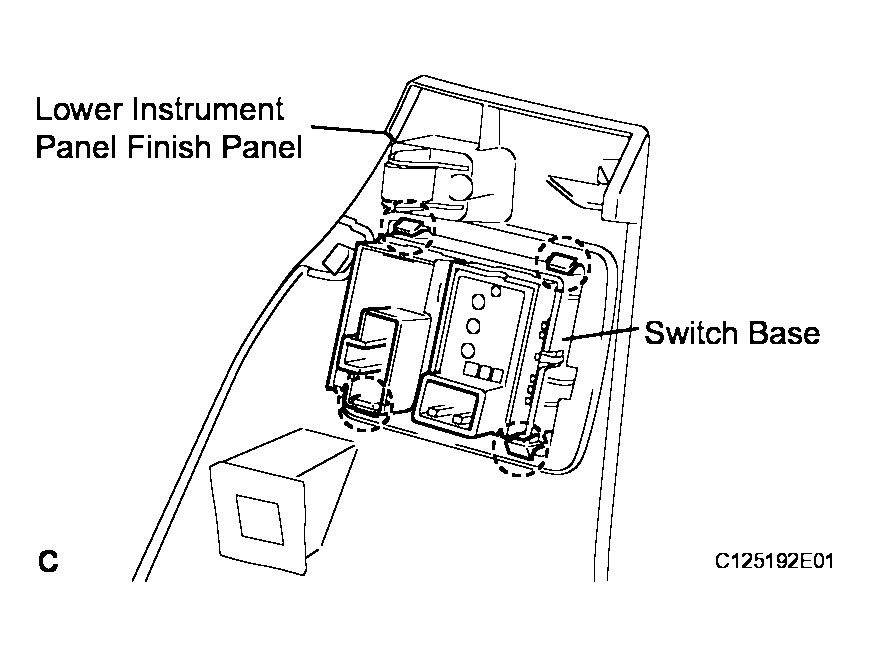

    Fig 2: Installing Claws & Switch Base To Lower Instrument Panel Finish Panel
    G04045313Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See step 24 in  INSTALLATION  )
  4. INSTALL SIDE INSTRUMENT PANEL LH (See step 26 in  INSTALLATION  )
  5. INSTALL FRONT DOOR OPENING TRIM COVER LH (See step 27 in  INSTALLATION  )
  6. INSTALL FRONT DOOR SCUFF PLATE LH (See step 88 in  INSTALLATION  )
