Brake Actuator: Components

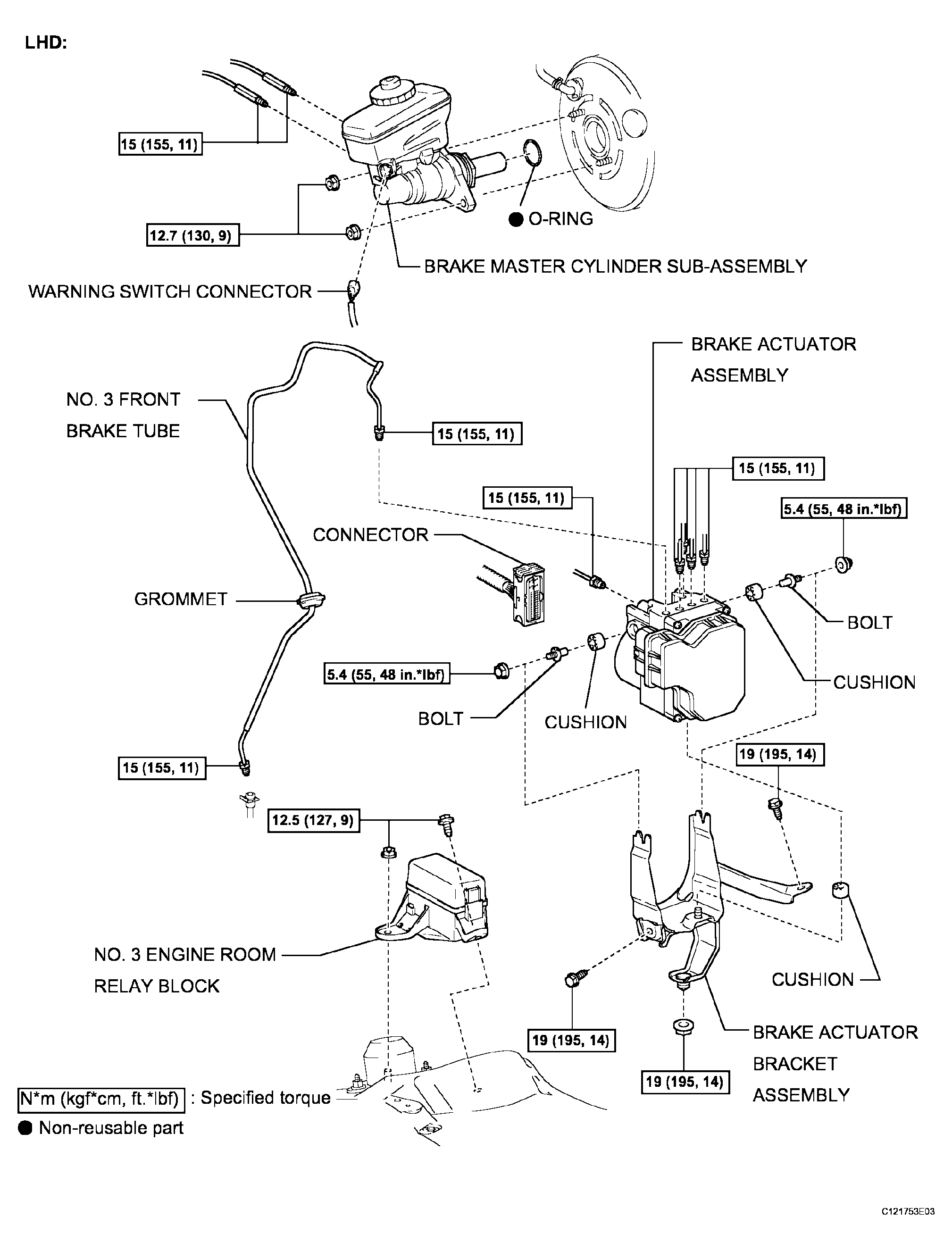

Fig 1: Replacement Components Brake Actuator With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Replacement Components Brake Actuator With Torque Specifications (2 Of 2)
