System Diagram

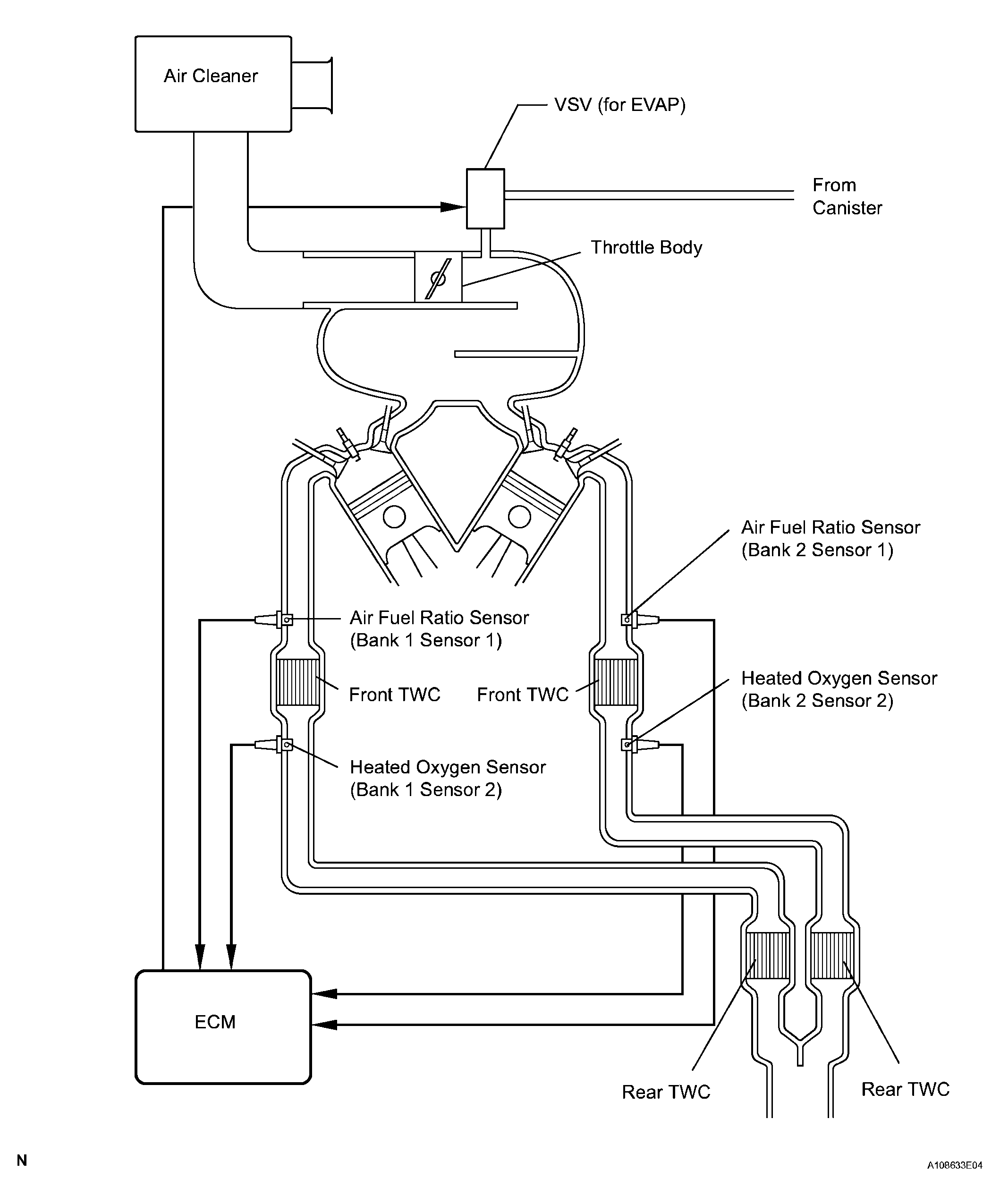

  1. EMISSION CONTROL SYSTEM DIAGRAM
    Fig 1: Identifying Emission Control System Diagram
    G04044683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

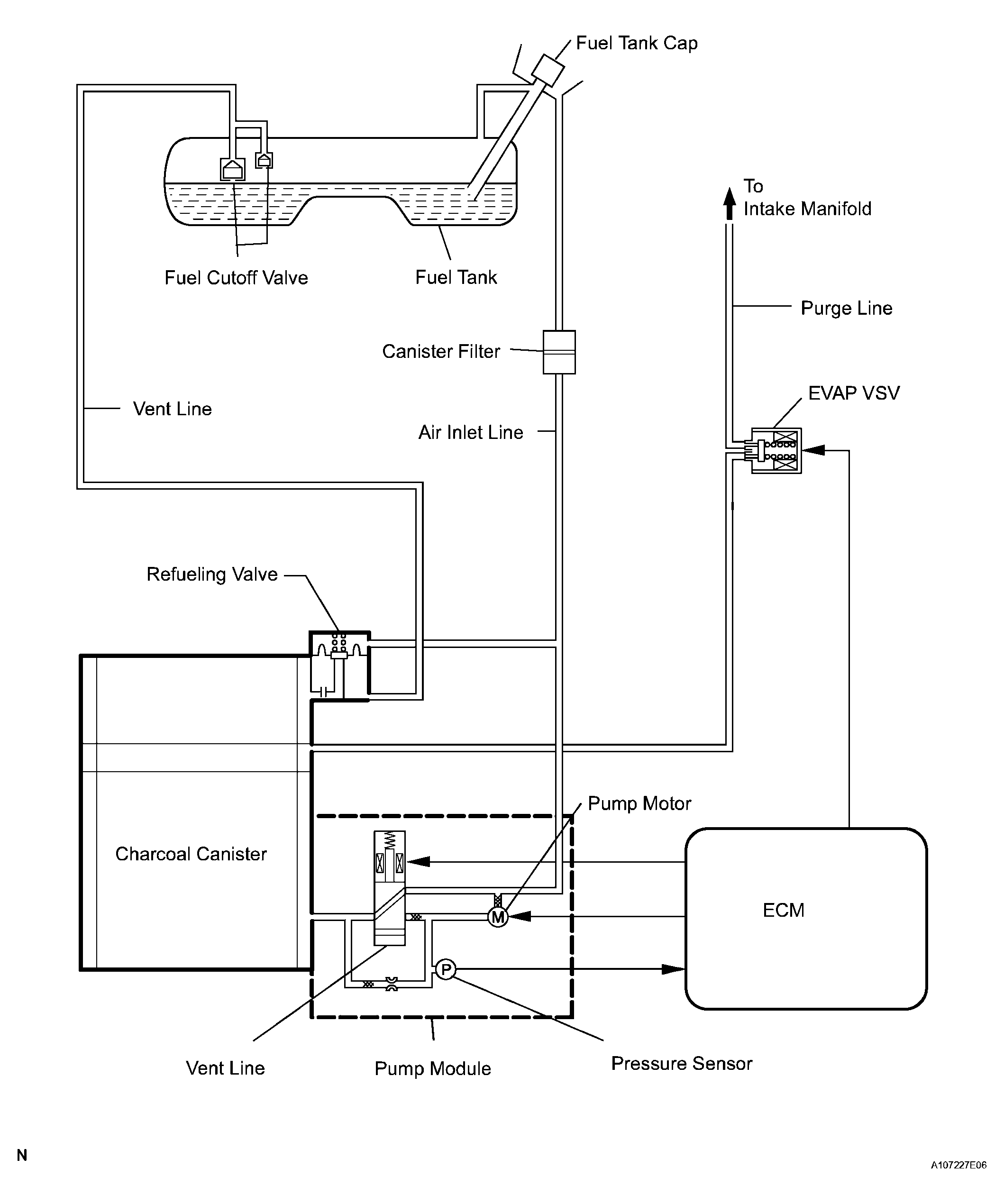

  2. EVAP CONTROL SYSTEM DIAGRAM
    Fig 2: Identifying EVAP Control System Diagram
    G04044684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

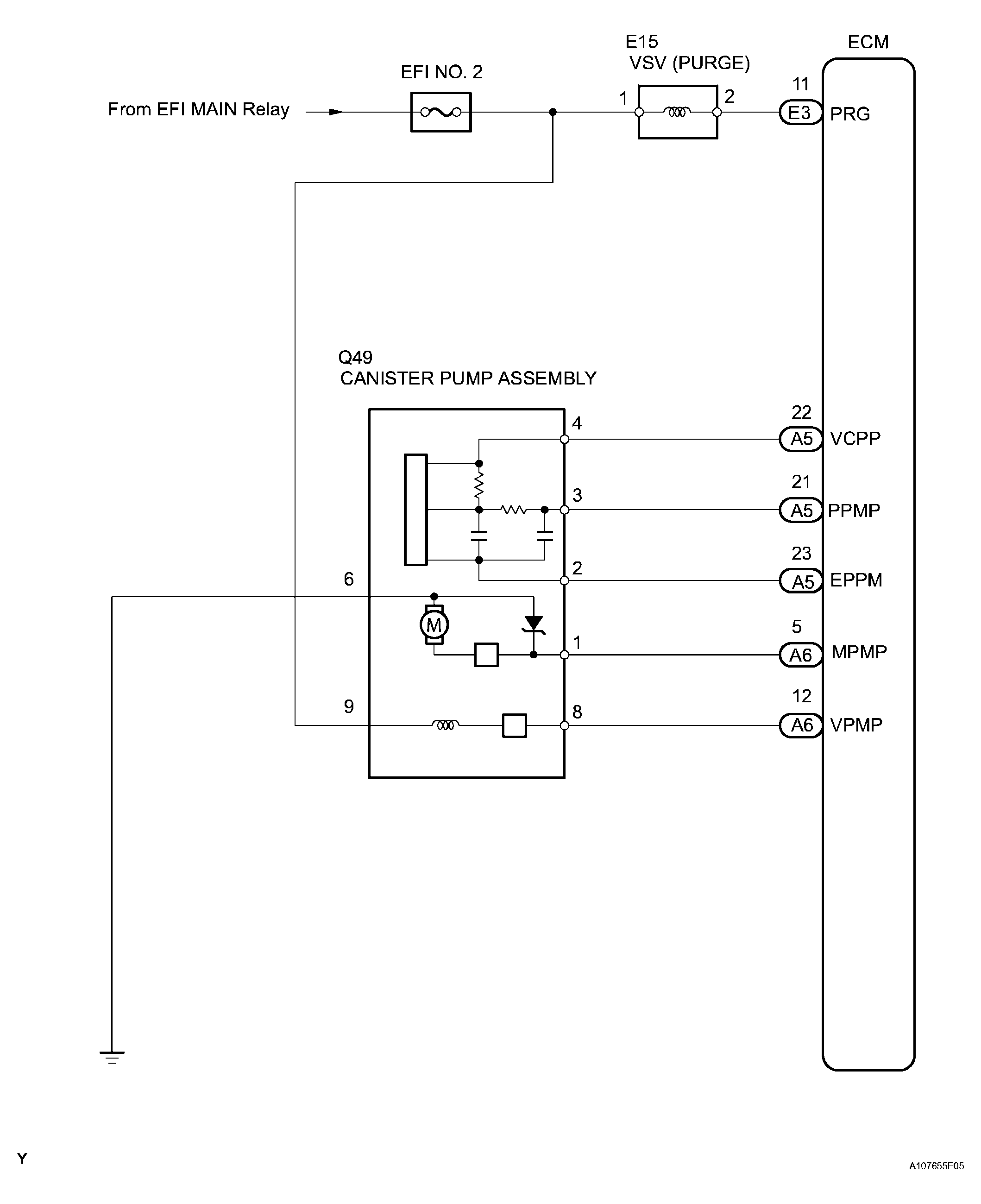

  3. EVAP SYSTEM WIRING DIAGRAM
    Fig 3: Identifying EVAP System Wiring Diagram
    G04044685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

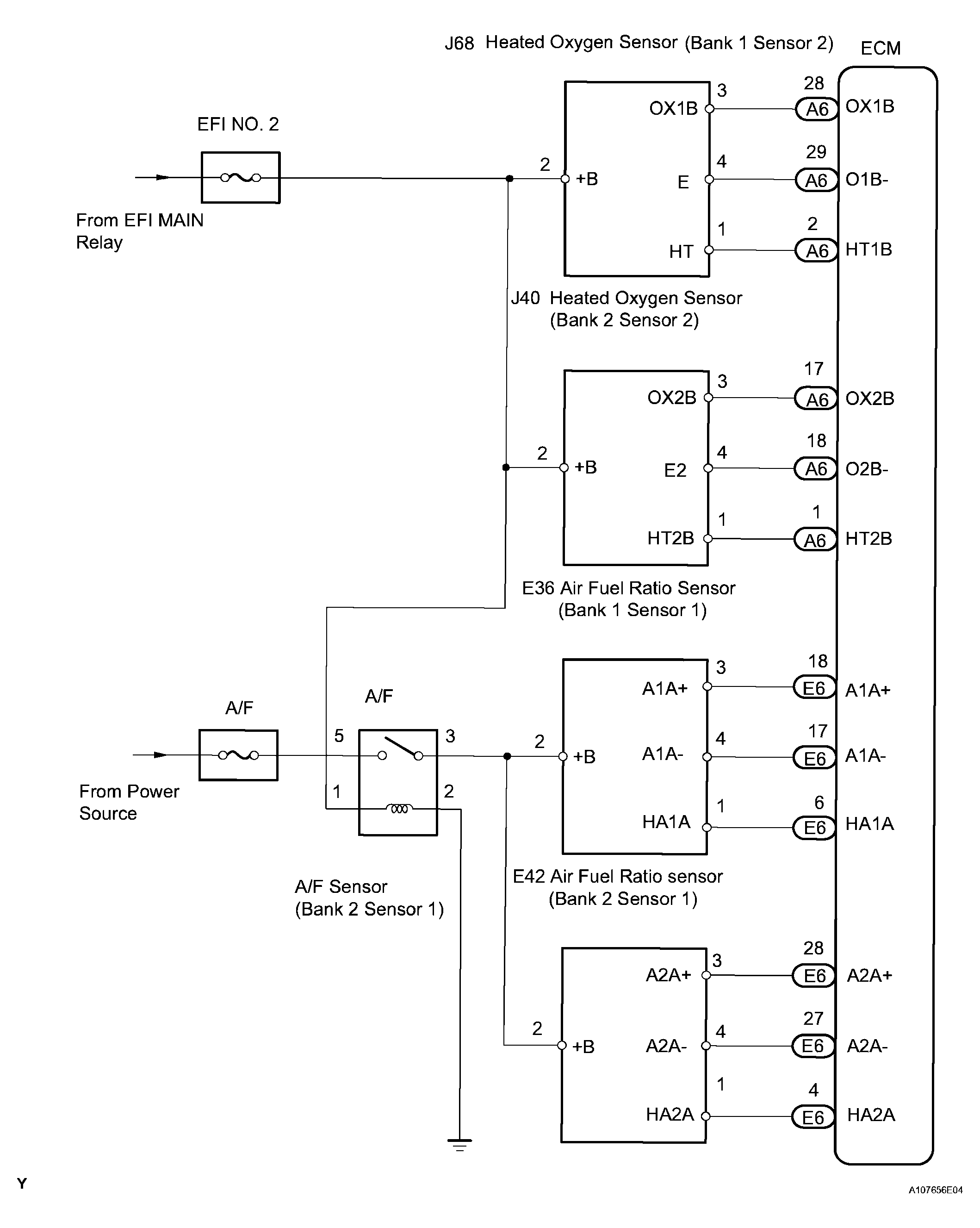

  4. EMISSION CONTROL SYSTEM WIRING DIAGRAM
    5. Fig 4: Identifying Emission Control System Wiring Diagram
    G04044686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
