Crankshaft Position Sensor: Components

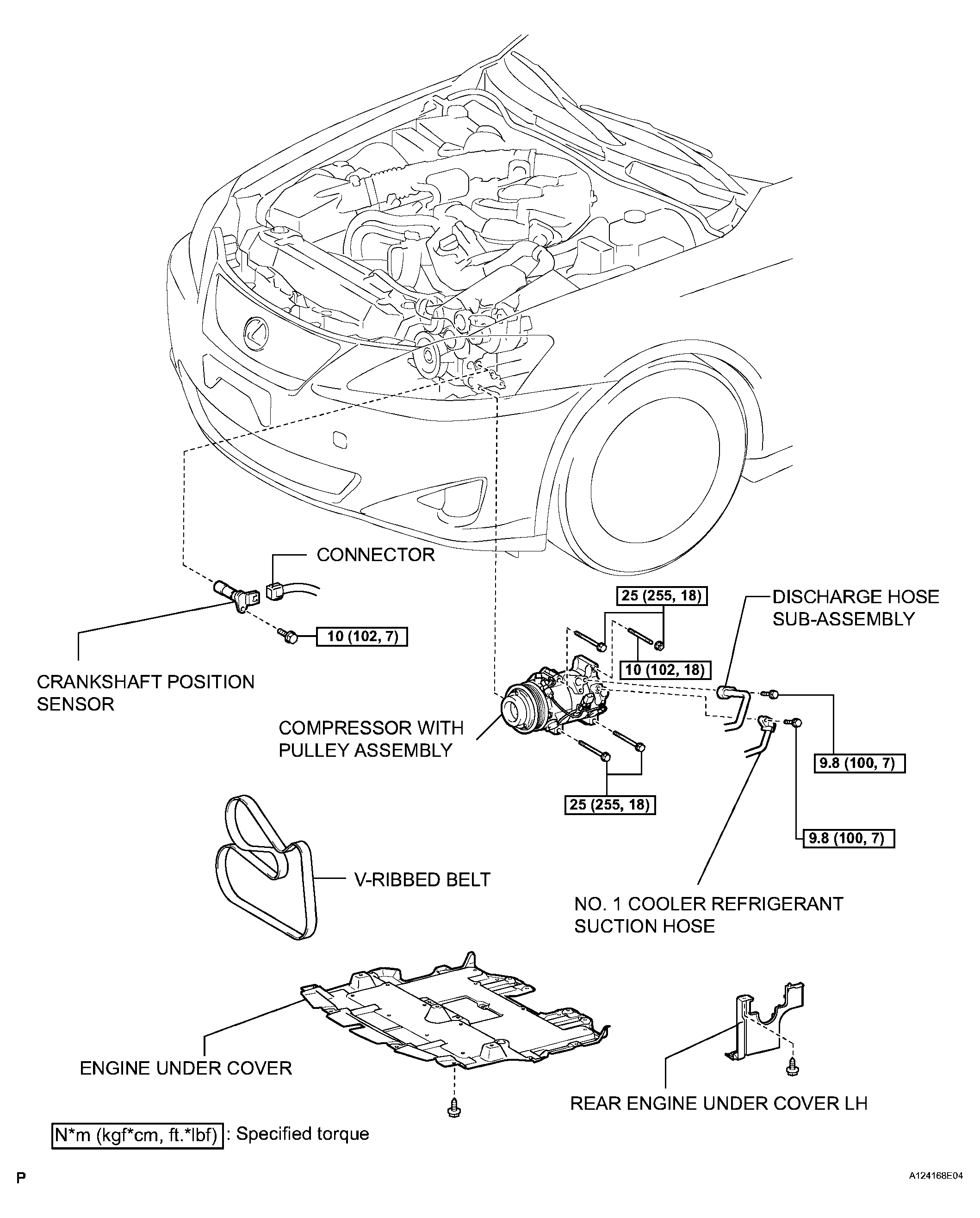

Fig 1: Exploded View Of Crankshaft Position Sensor With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

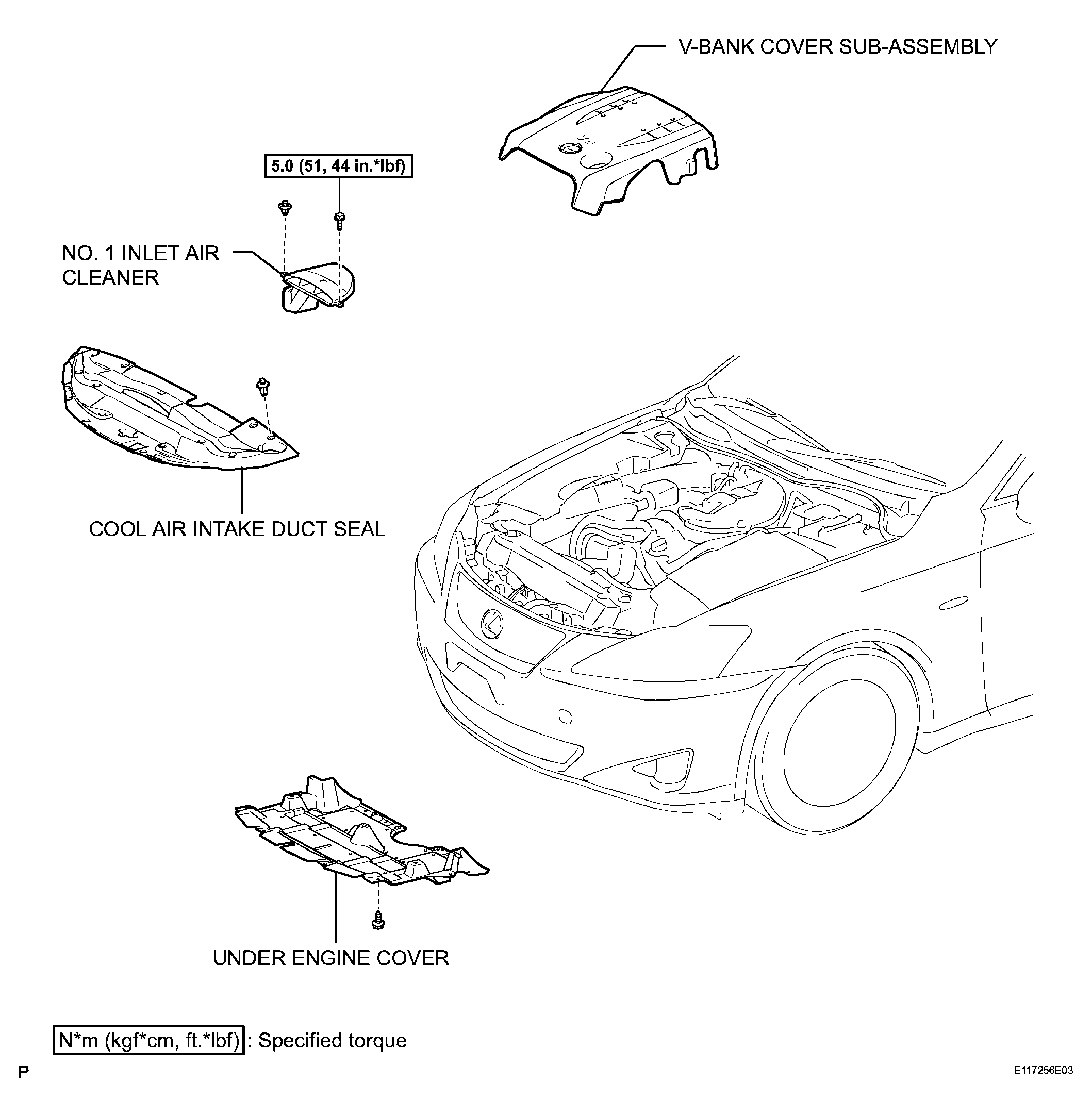

Fig 2: Exploded View Of Crankshaft Position Sensor With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

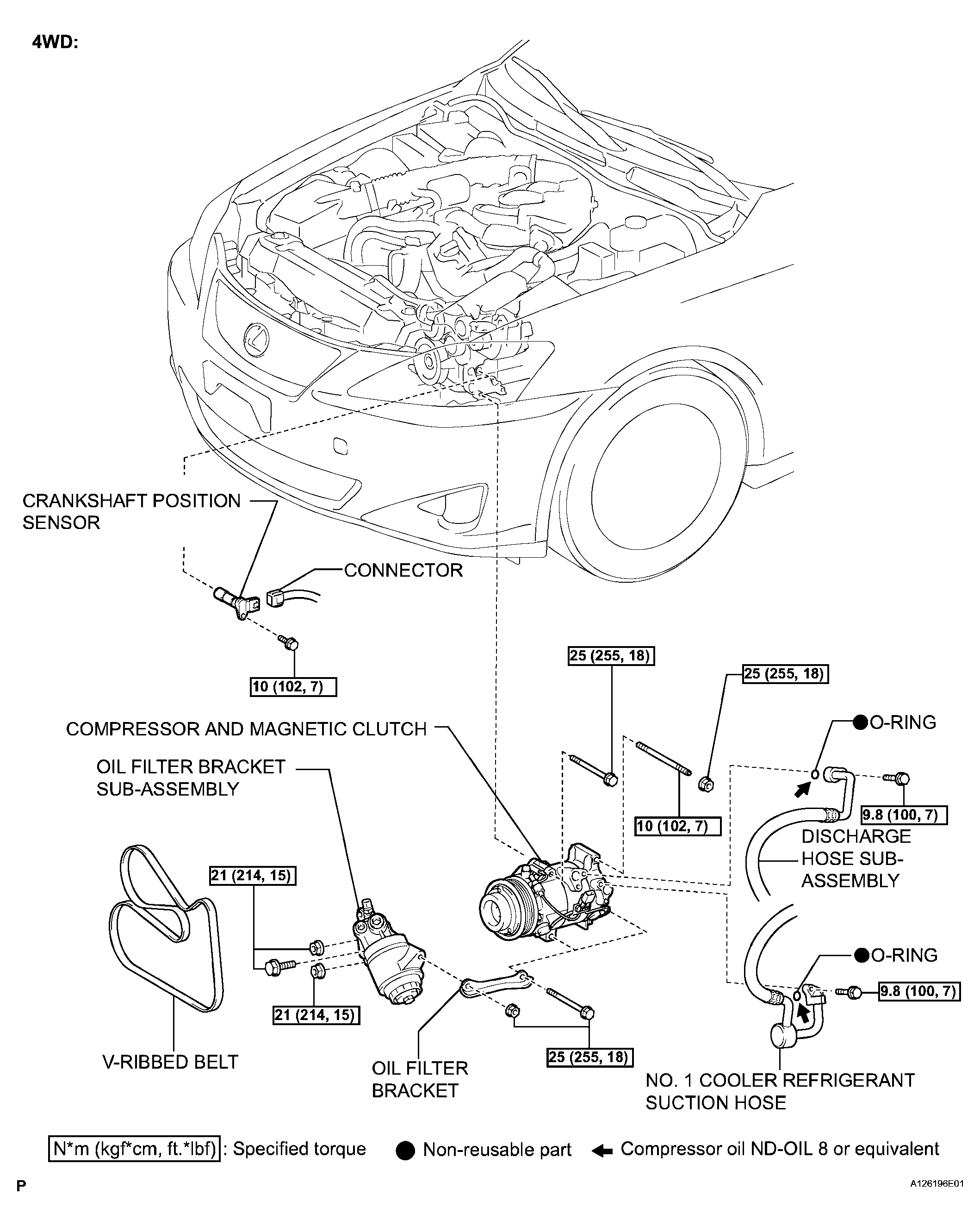

Fig 3: Exploded View Of Crankshaft Position Sensor (4WD)With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
