Integration Relay: Installation

1. INSTALL INTEGRATION RELAY
   1. Connect the 3 connectors.
   2. Attach the integration relay to the engine room No. 2 relay block.
   3. Install the No. 2 relay block cover.
2. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
3. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )

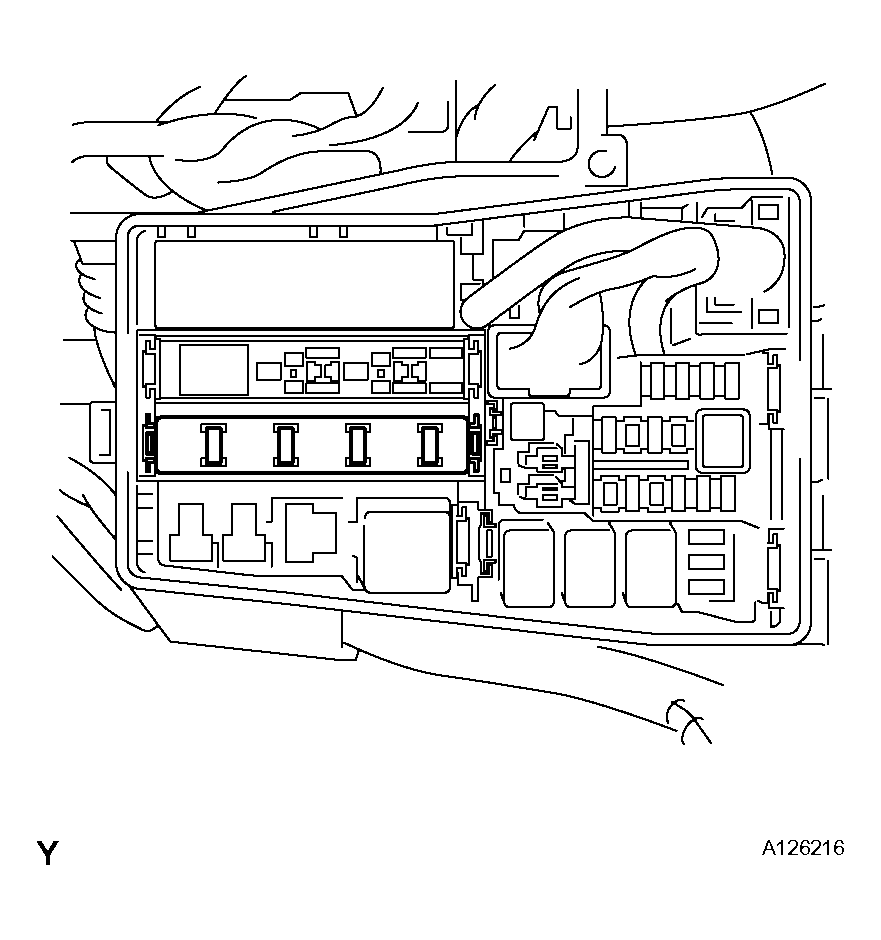

Fig 1: Identifying Integration Relay Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
