VVT Sensor: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

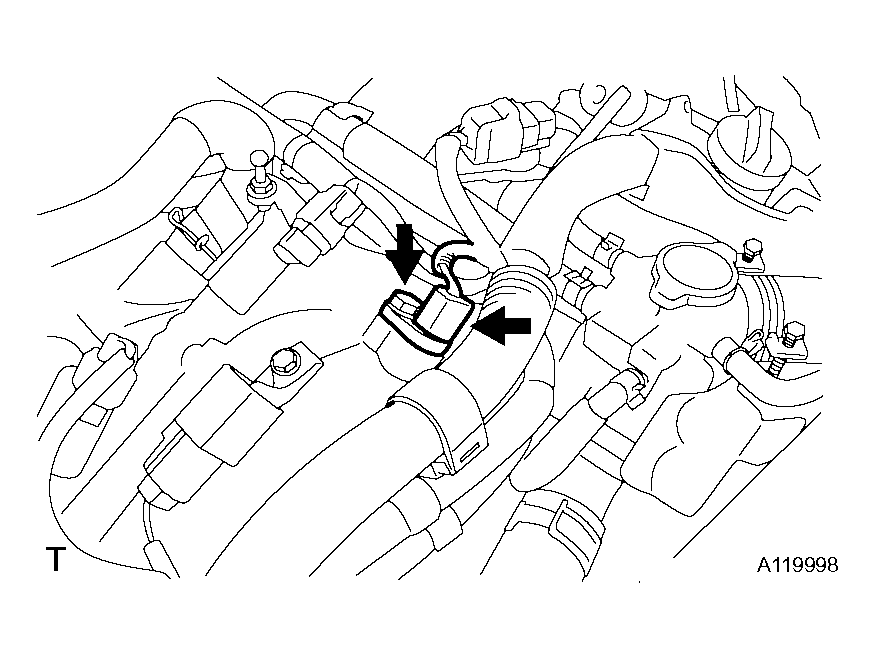

    Fig 1: Identifying VVT Sensor (For Intake Side Of Bank 1)
    G04043905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

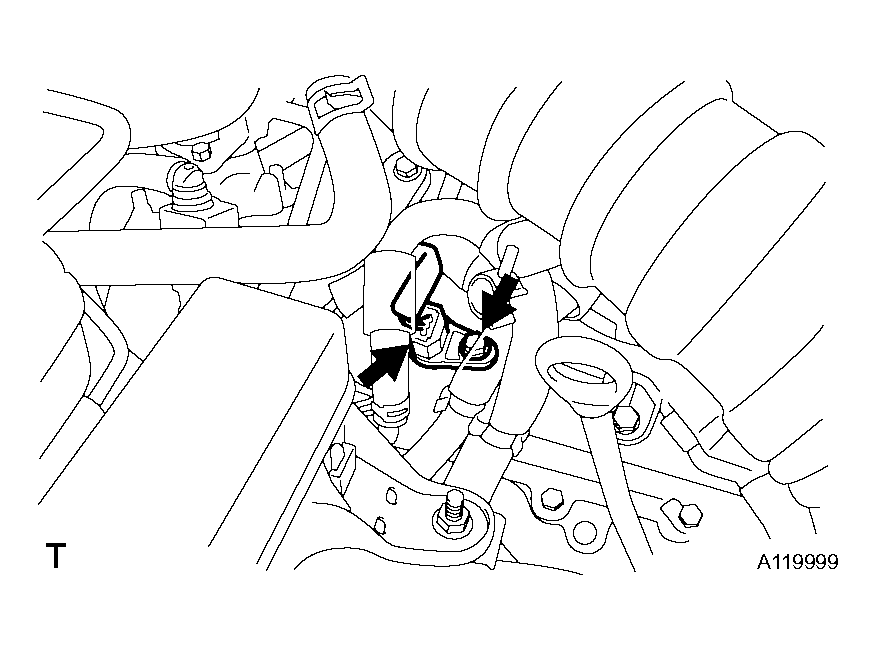

    Fig 2: Identifying VVT Sensor (For Exhaust Side Of Bank 1)
    G04043906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

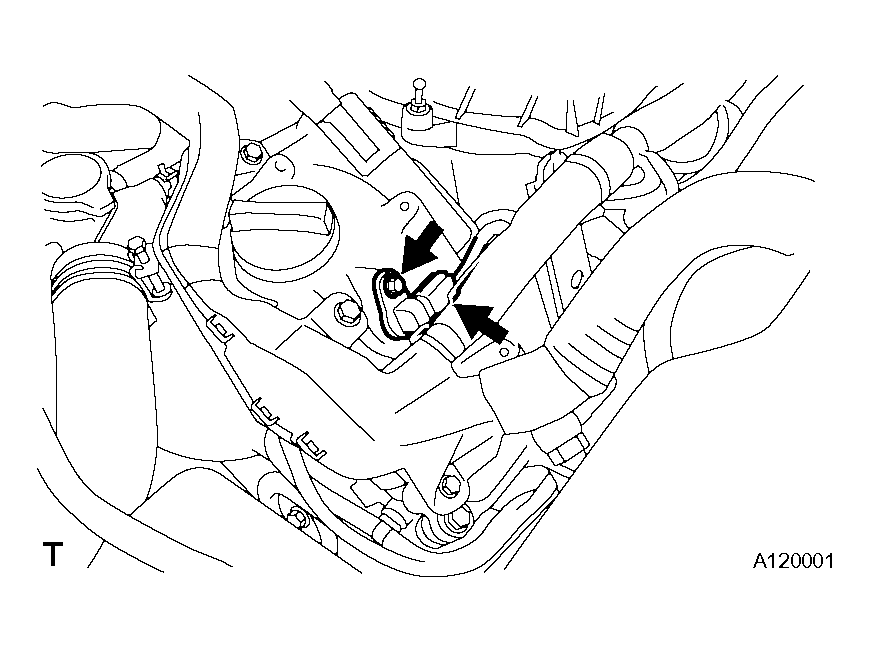

    Fig 3: Identifying VVT Sensor (For Intake Side Of Bank 2)
    G04043907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

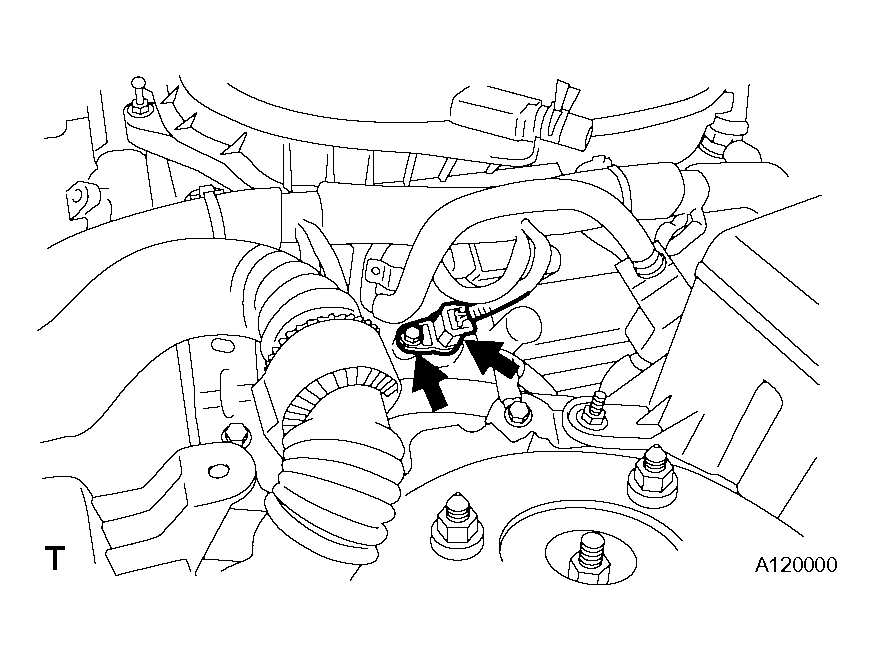

    Fig 4: Identifying VVT Sensor (For Exhaust Side Of Bank 2)
    G04043908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
