Front Axle Hub: Components

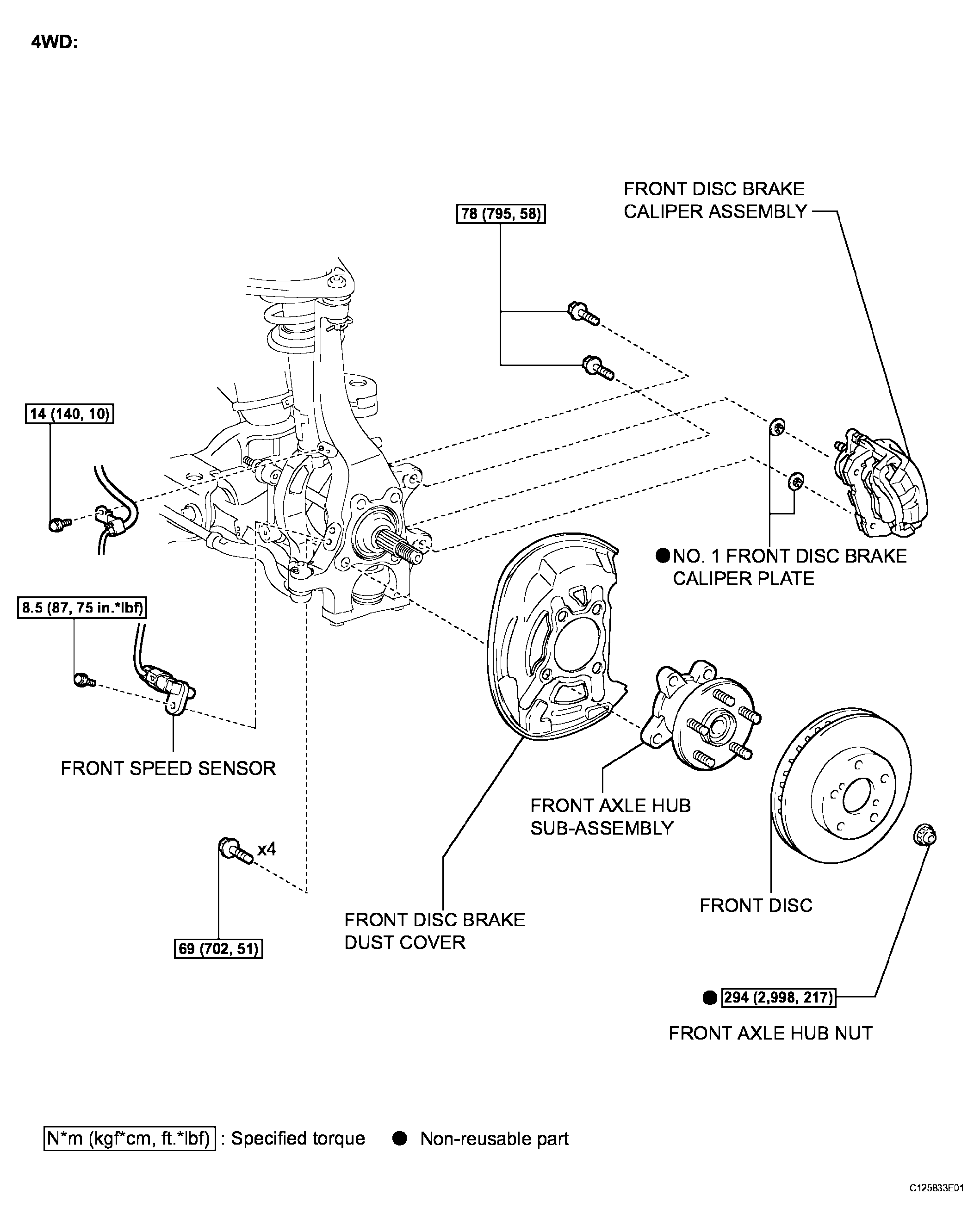

Fig 1: Front Axle Hub Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

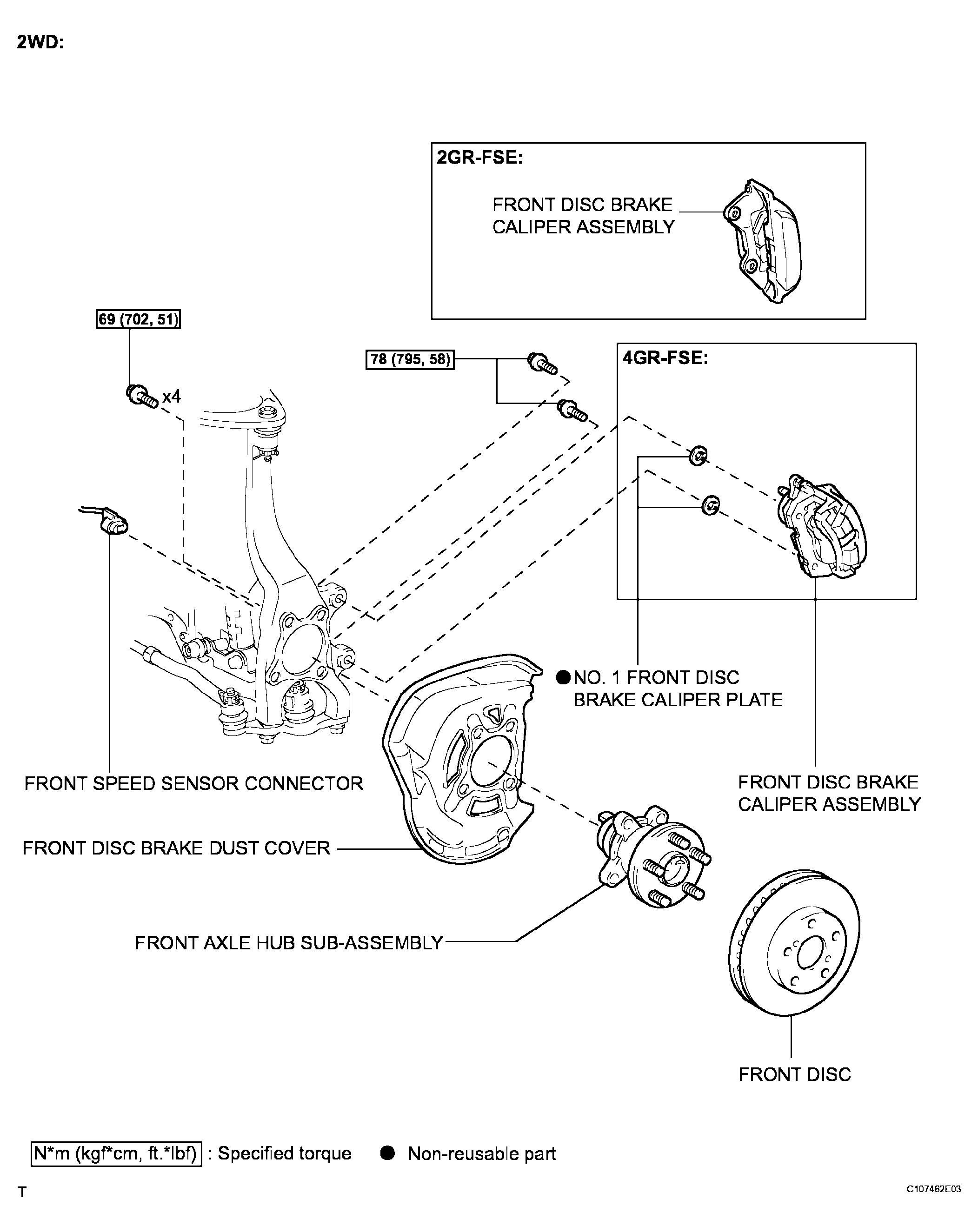

Fig 2: Front Axle Hub Replacement Components (2 Of 2) With Torque Specifications
