Steering Knuckle: Components

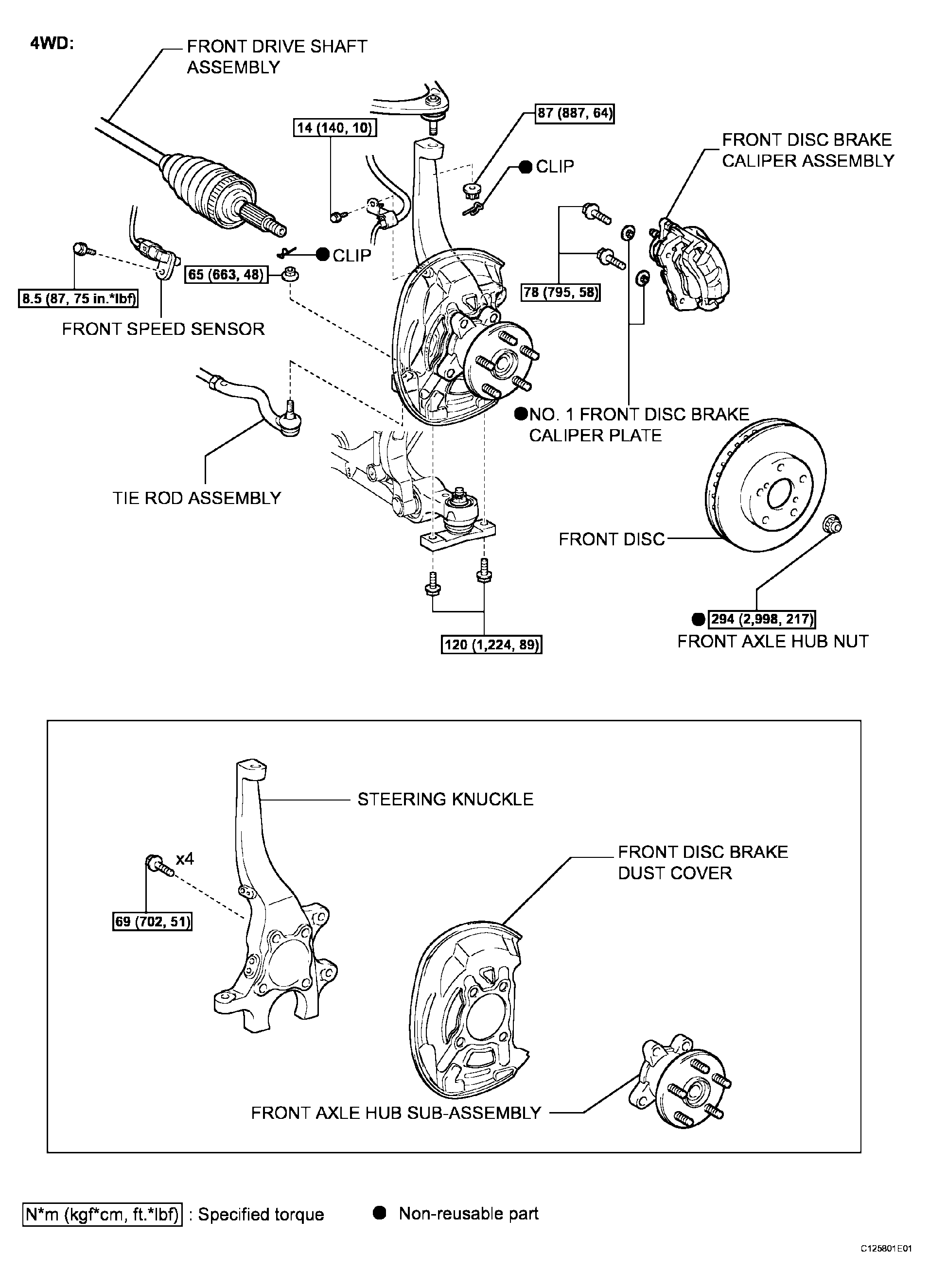

Fig 1: Steering Knuckle Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

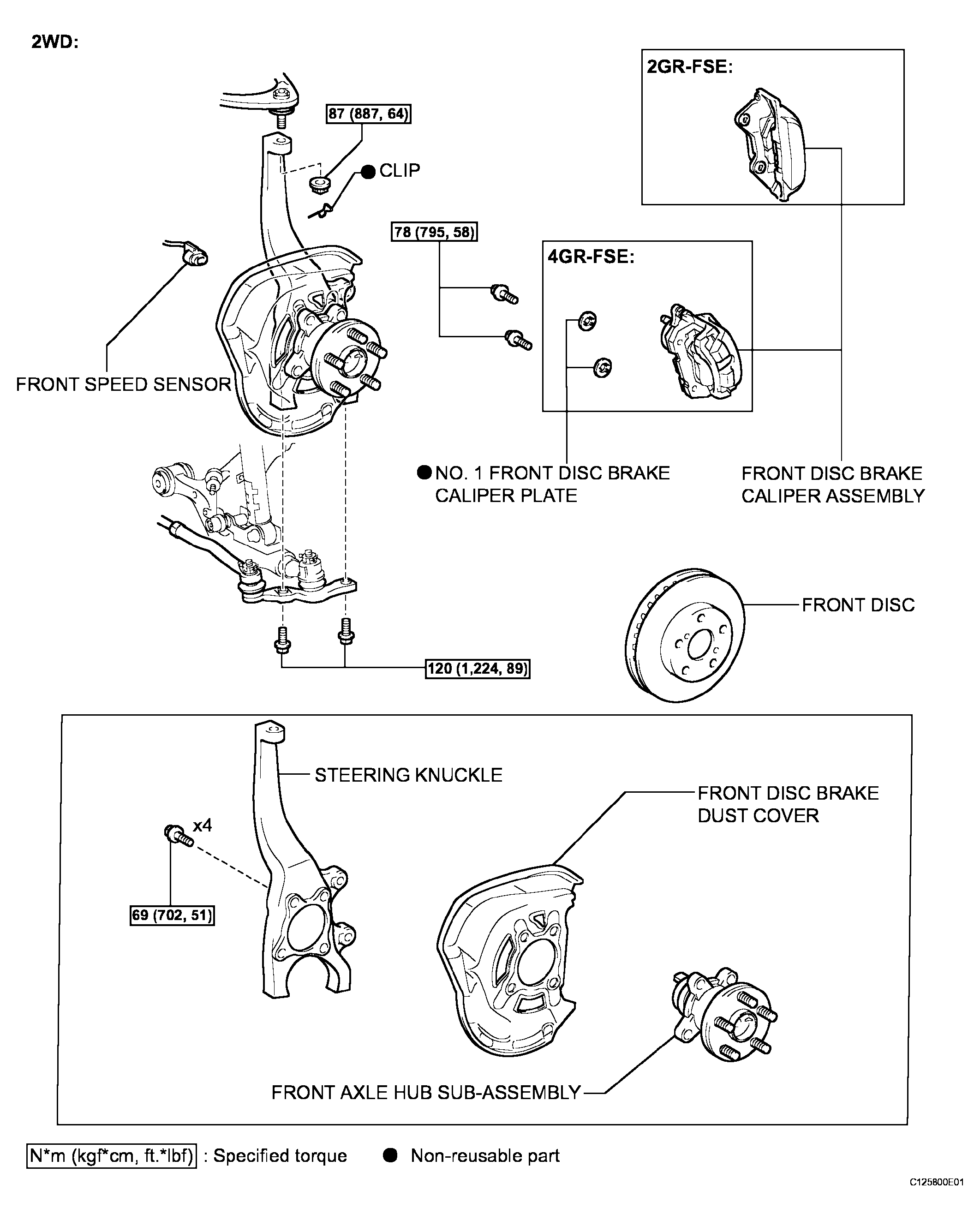

Fig 2: Steering Knuckle Replacement Components (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
