Automatic Transmission (A760H)
›
Park/Neutral Position Switch
›
Components
Park/Neutral Position Switch: Components

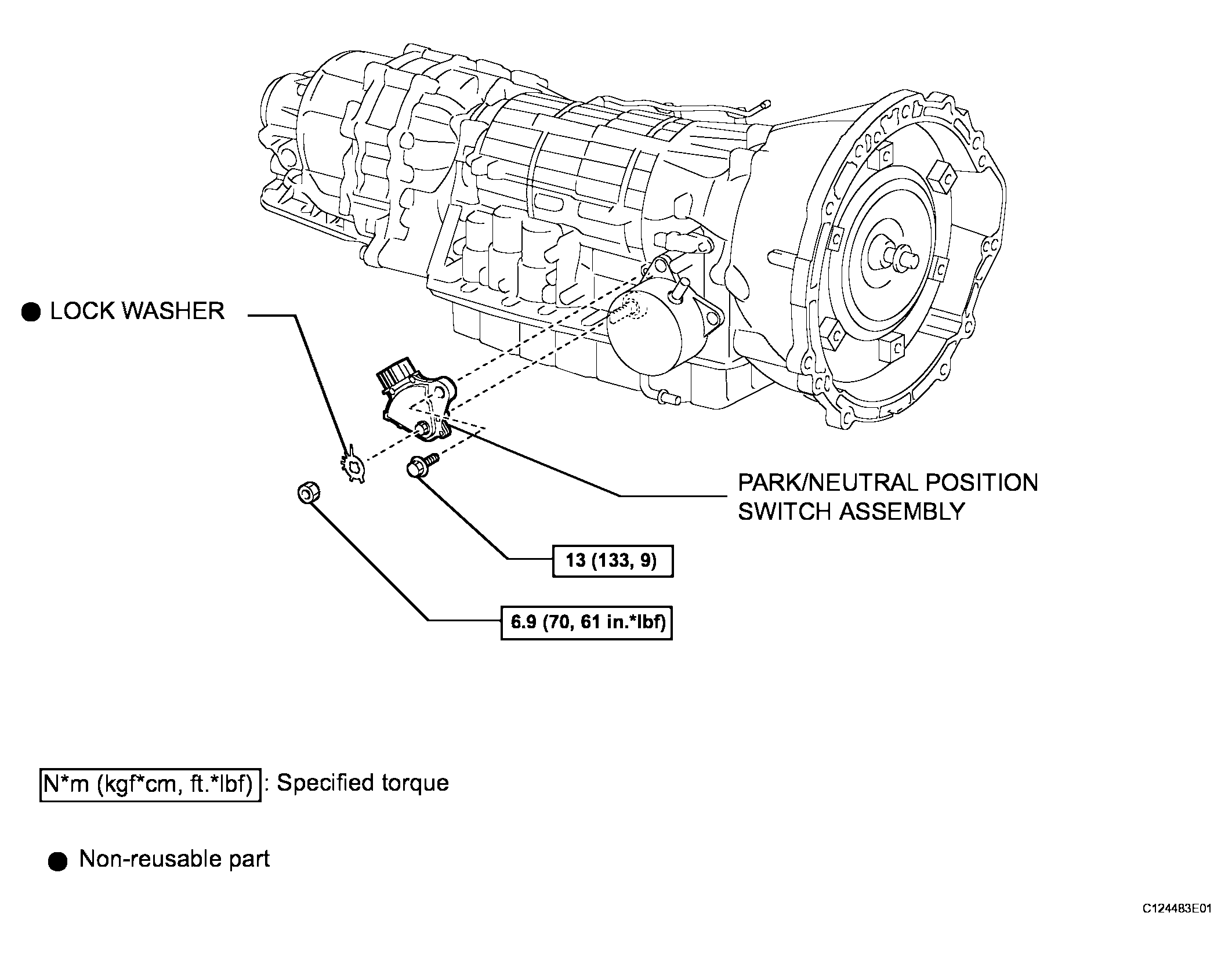

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
