Shift Lever Assembly: Components

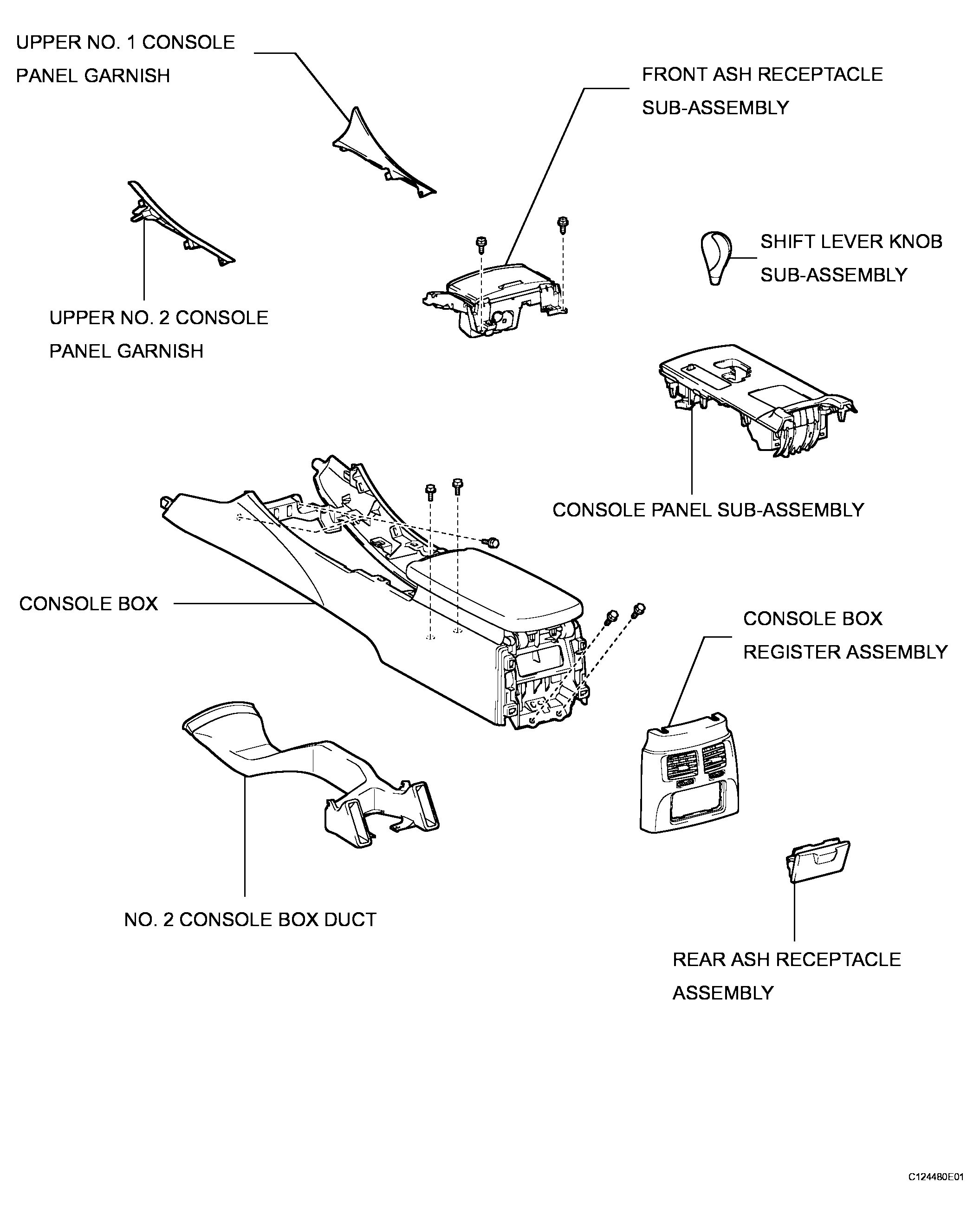

Fig 1: Identifying Shift Lever Assembly Components (1 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

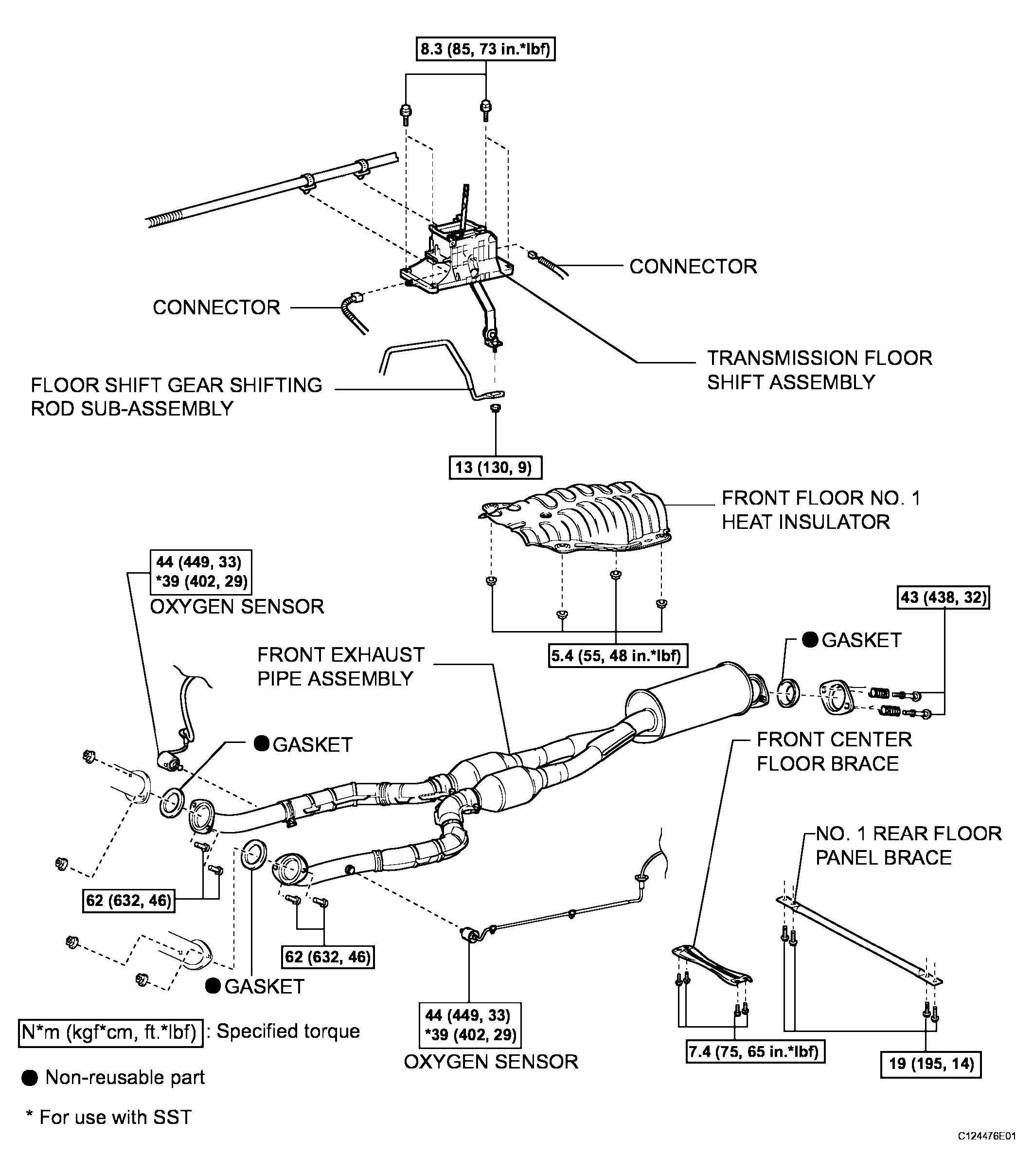

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 3) (

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

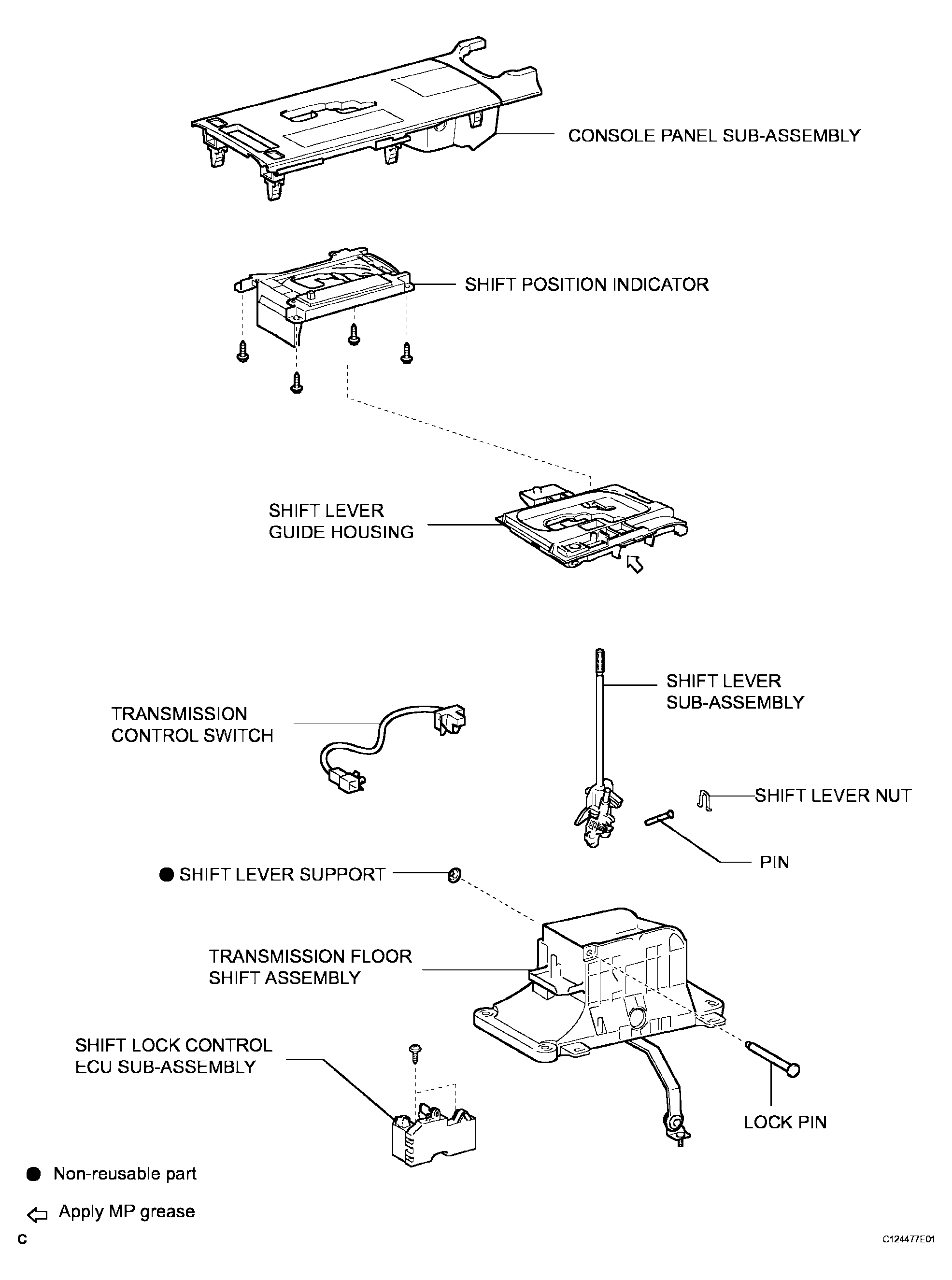

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
