Transfer Control Solenoid: Components

Fig 1: Exploded View Of Transfer Control Solenoid Components (1 Of 2) With Torque Specifications
G04046852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

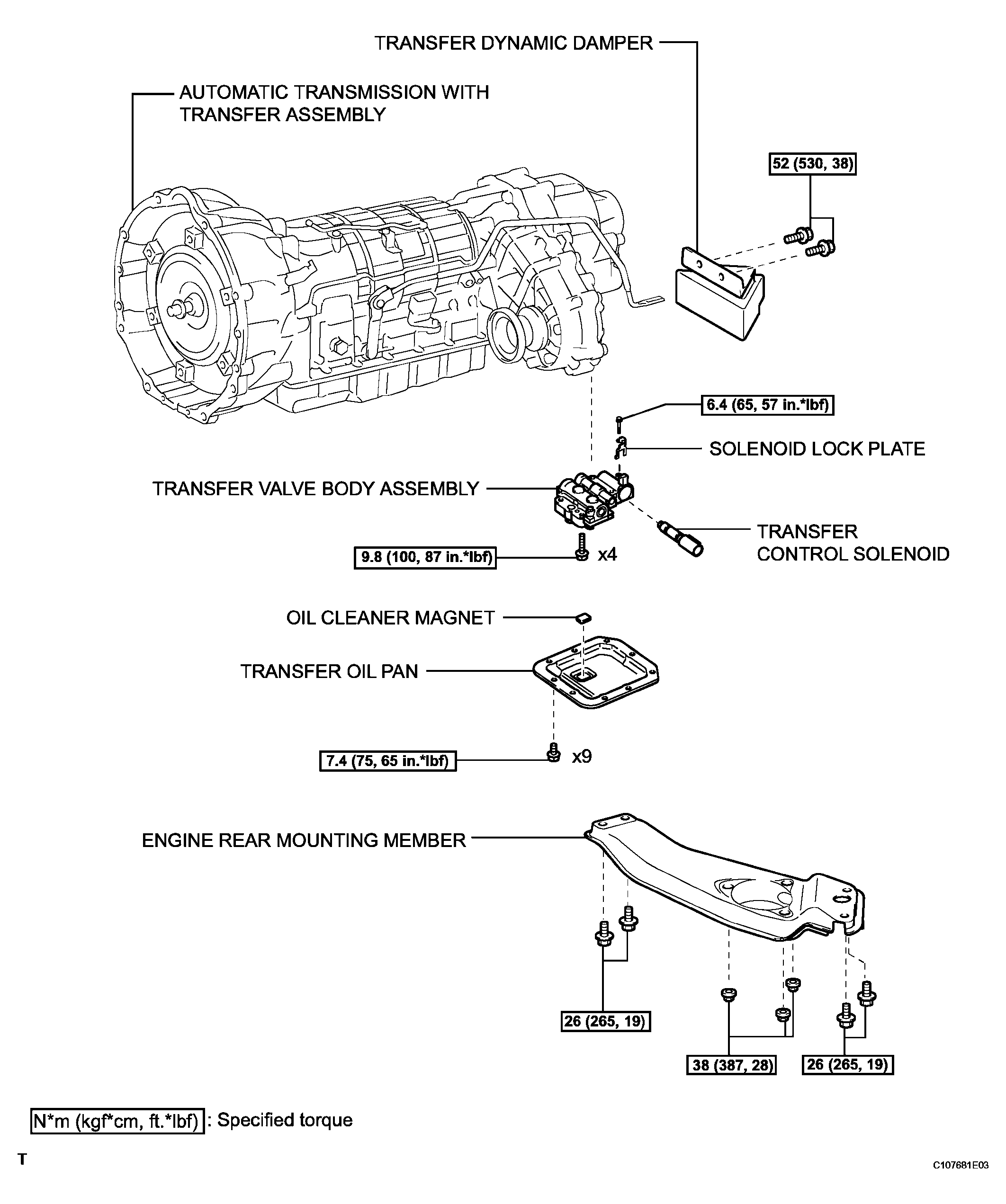

Fig 2: Exploded View Of Transfer Control Solenoid Components (2 Of 2) With Torque Specifications
G04046853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
