Transfer Wire: Components

Fig 1: Exploded View Of Transfer Wire Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

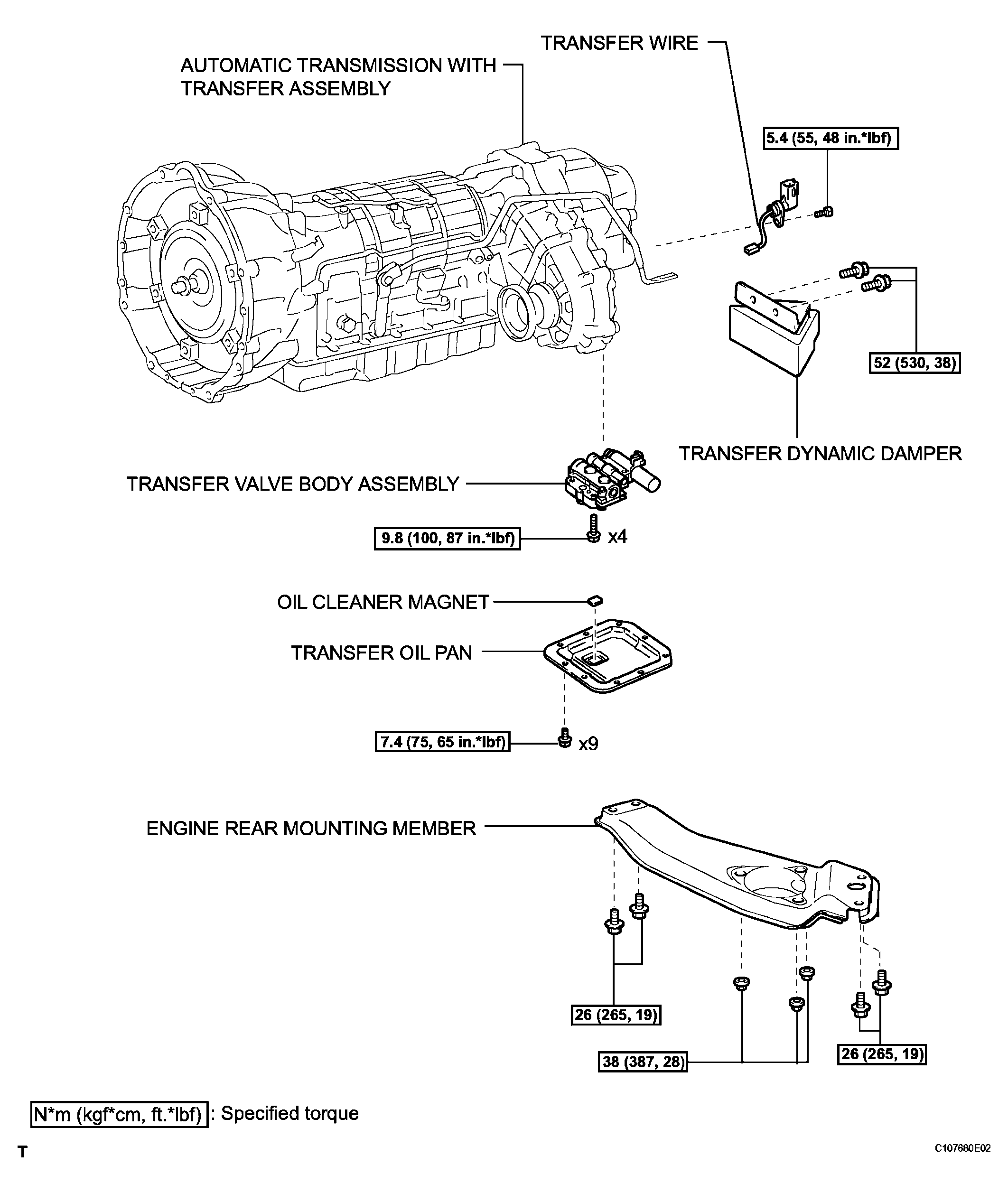

Fig 2: Exploded View Of Transfer Wire Components (2 Of 2) With Torque Specifications
