Clutch Switch: Removal

REMOVE FRONT DOOR SCUFF PLATE LH (See REMOVAL )
REMOVE FRONT DOOR OPENING TRIM COVER LH (See REMOVAL )
REMOVE SIDE INSTRUMENT PANEL LH (See REMOVAL )
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See REMOVAL )
REMOVE MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)
1. Disconnect all connectors.
2. Remove the 2 nuts and the main body ECU (cowl side junction block LH).
REMOVE CLUTCH SWITCH ASSEMBLY
1. Disconnect the connector.

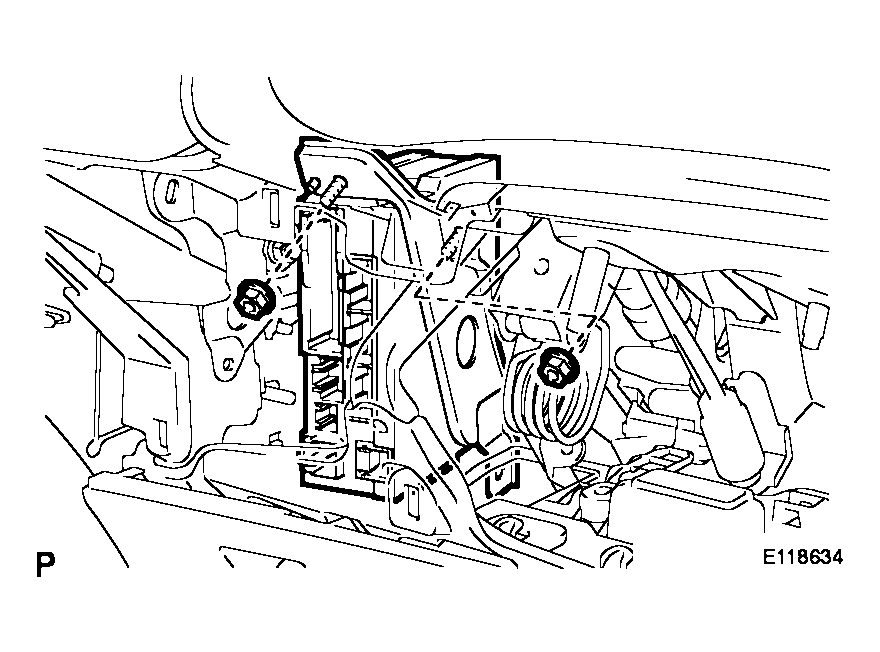

  Fig 1: Identifying 2 Nuts And Main Body ECU (Cowl Side Junction Block LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the nut and remove the clutch switch assembly.

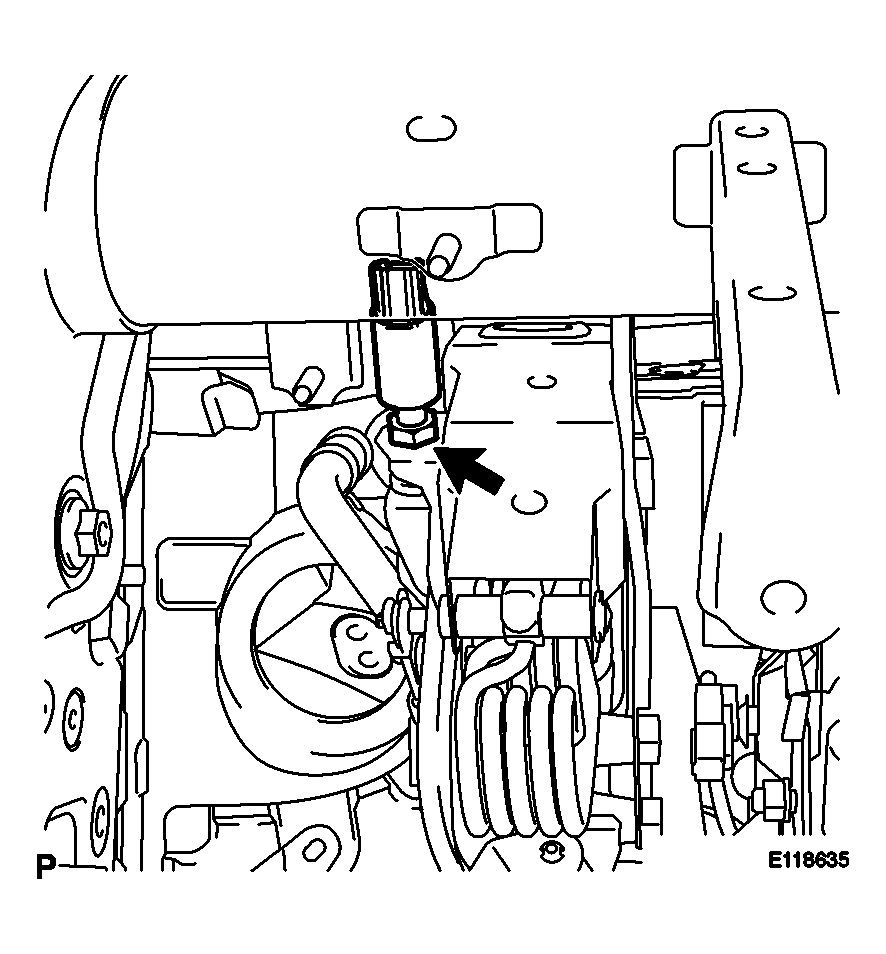

  Fig 2: Identifying Clutch Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
