Door Control Switch: Installation

  1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Connect the power window regulator master switch connector.
    2. Engage the 2 clips and 4 claws, and install the power window regulator master switch assembly.

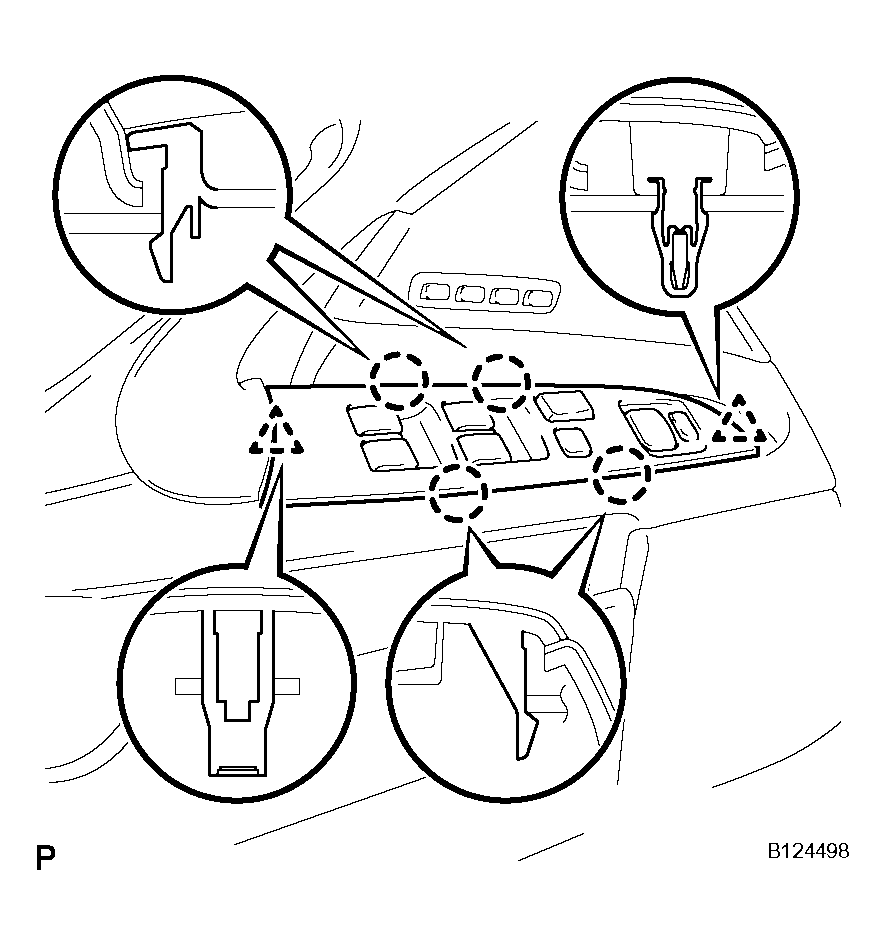

    Fig 1: Identifying Power Window Regulator Master Switch Assembly
    G04049935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
