Roof Headlining: Components

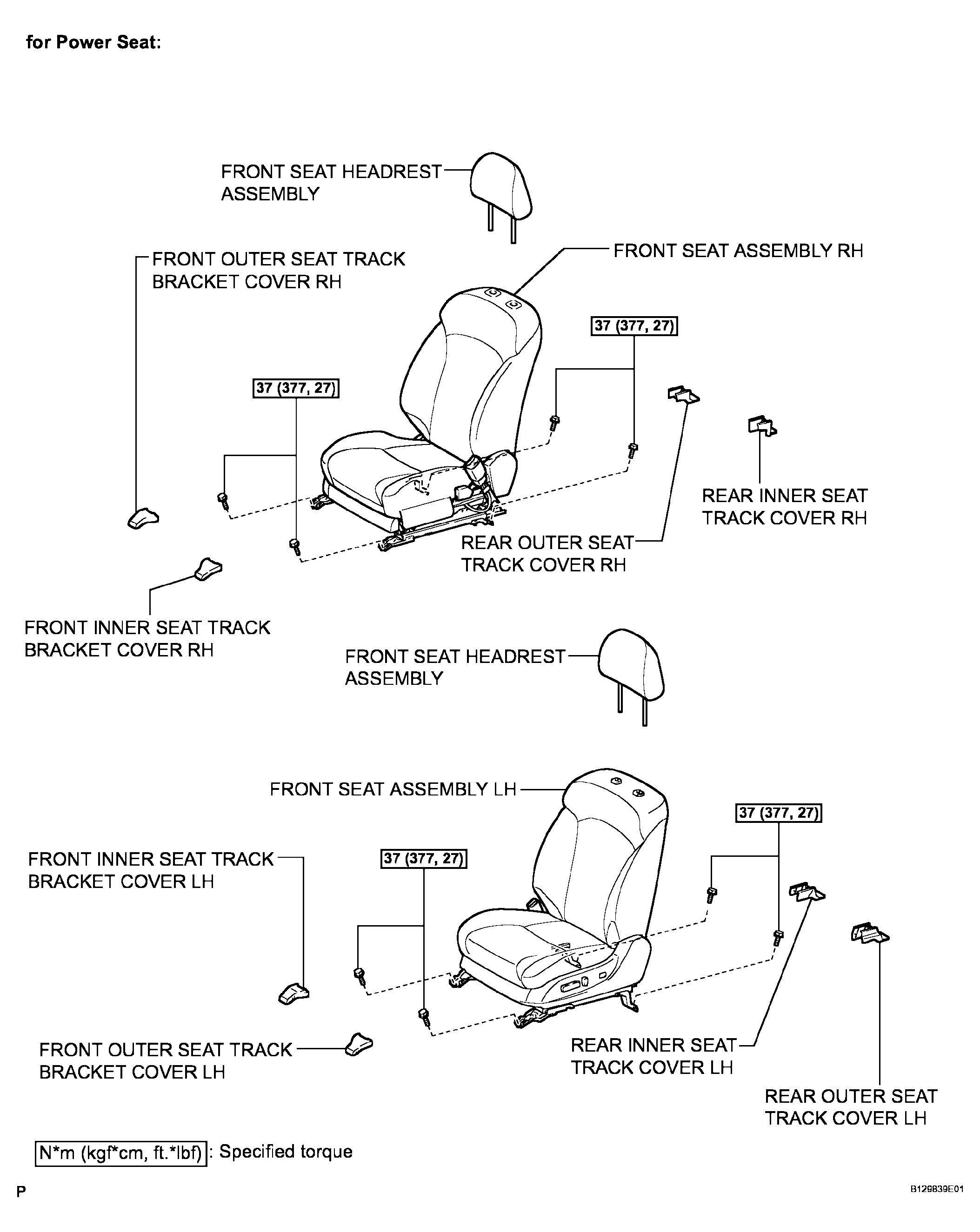

Fig 1: Roof Headlining Replacement Components With Torque Specifications (For Power Seat) (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

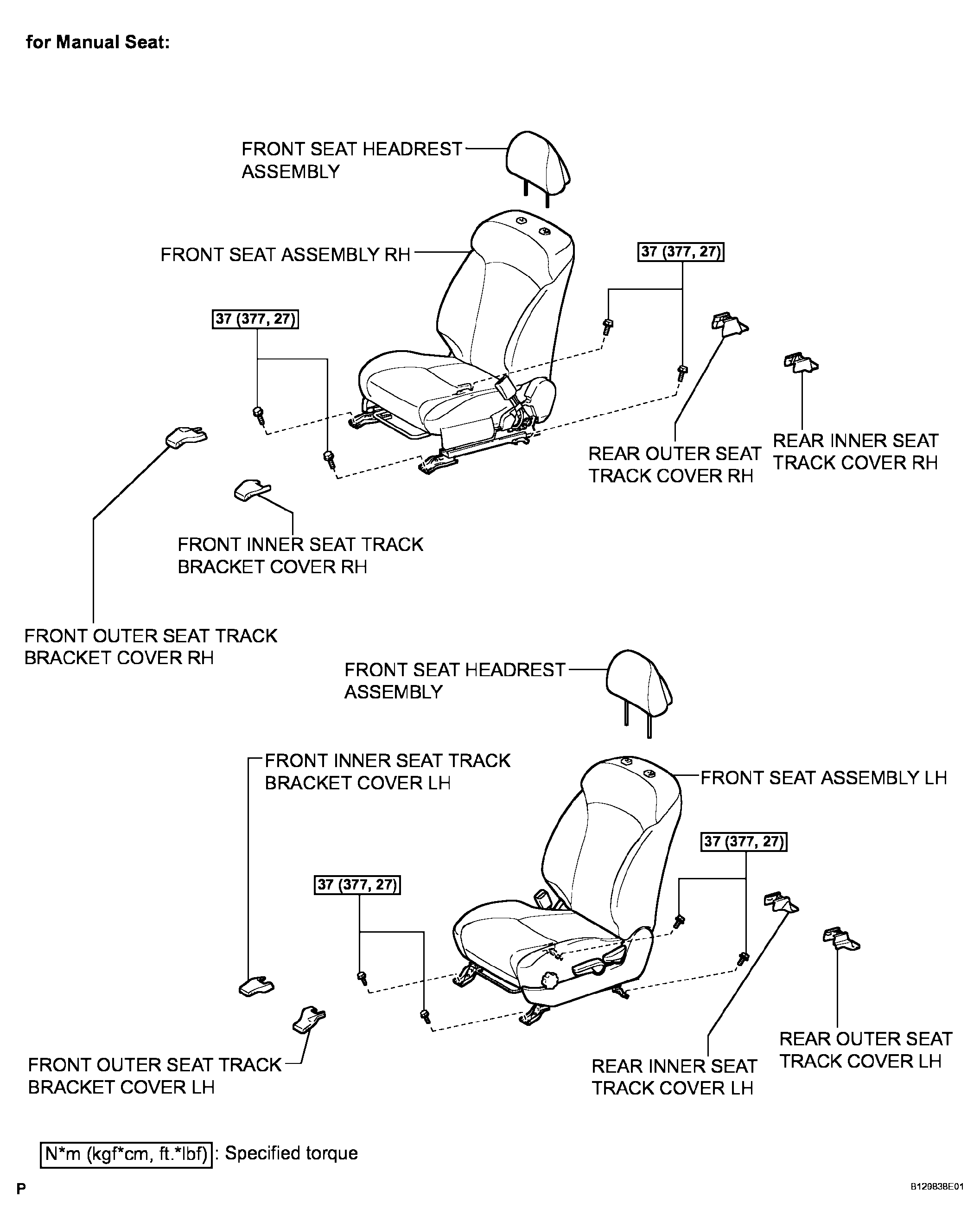

Fig 2: Roof Headlining Replacement Components With Torque Specifications (For Manual Seat) (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

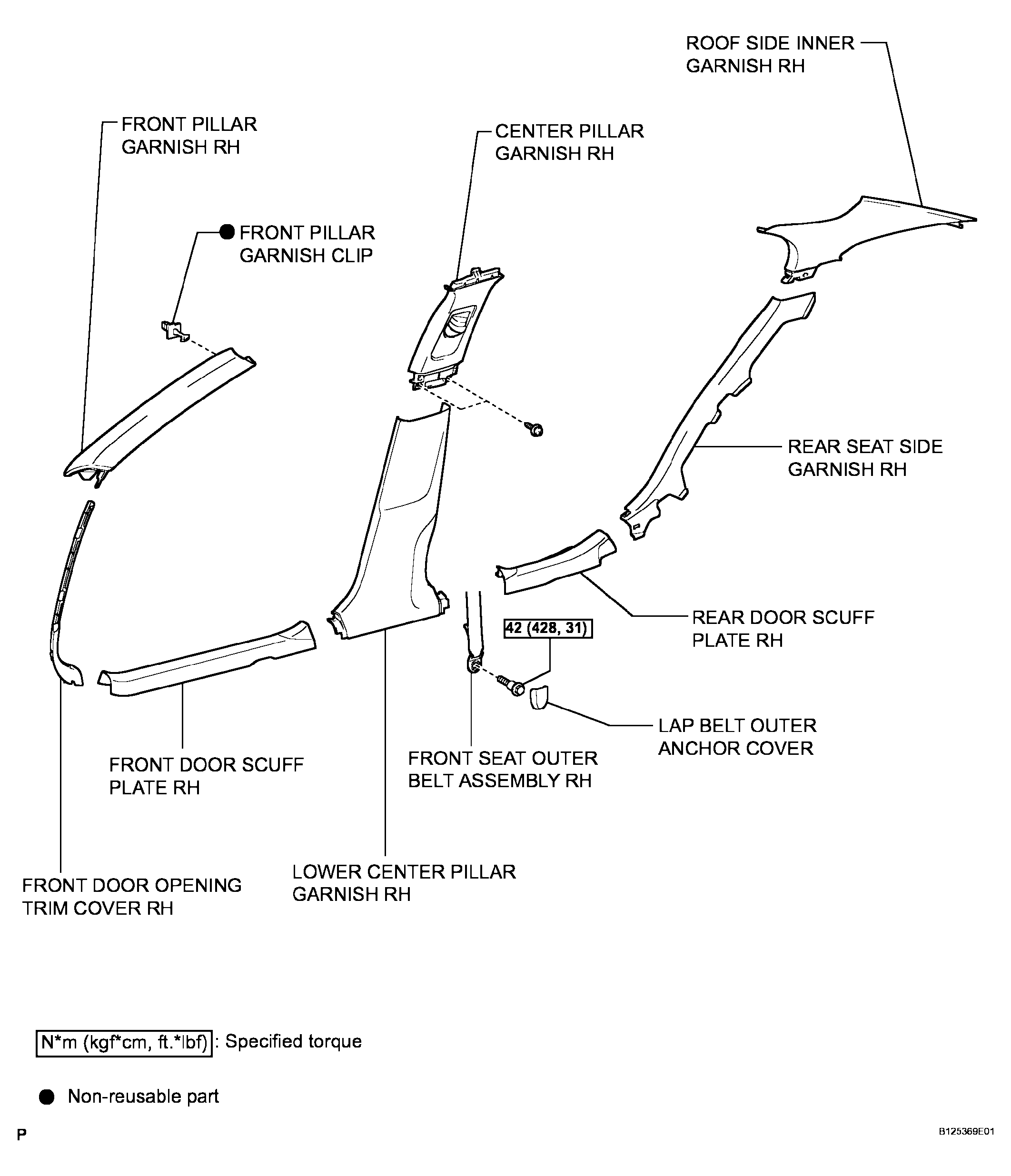

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

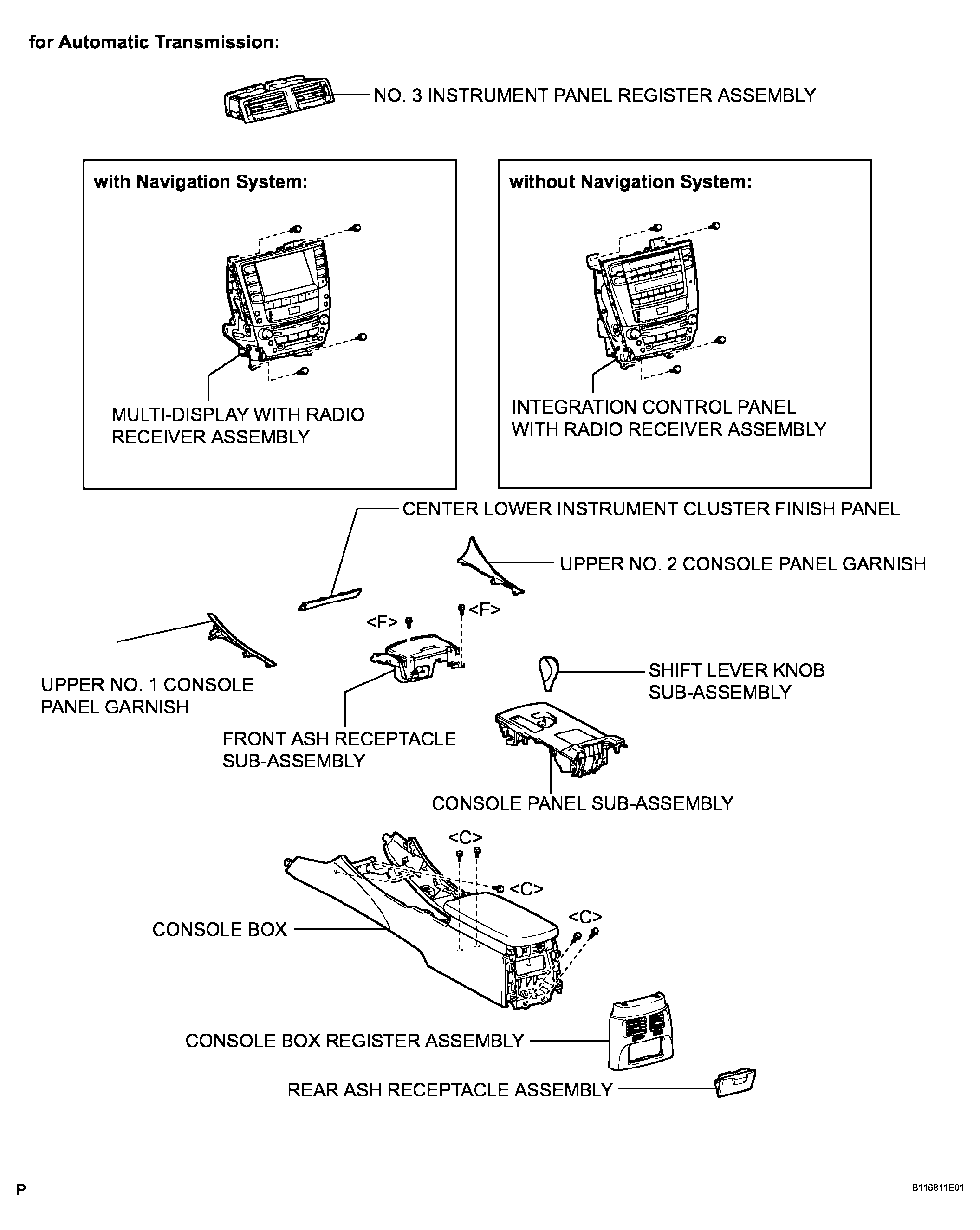

Fig 4: Identifying Roof Headlining Components (For Automatic Transmission) (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

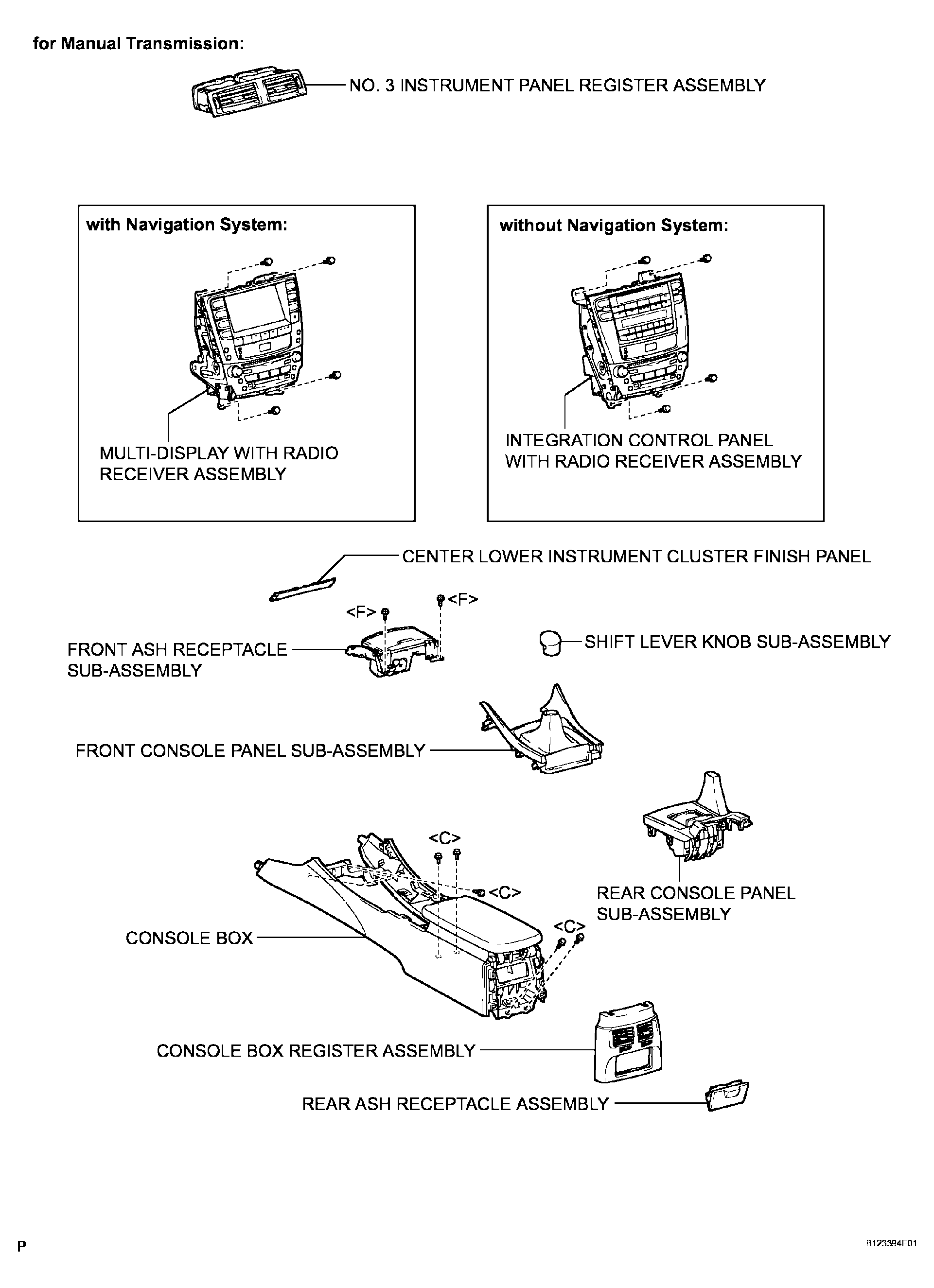

Fig 5: Identifying Roof Headlining Components (For Manual Transmission) (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

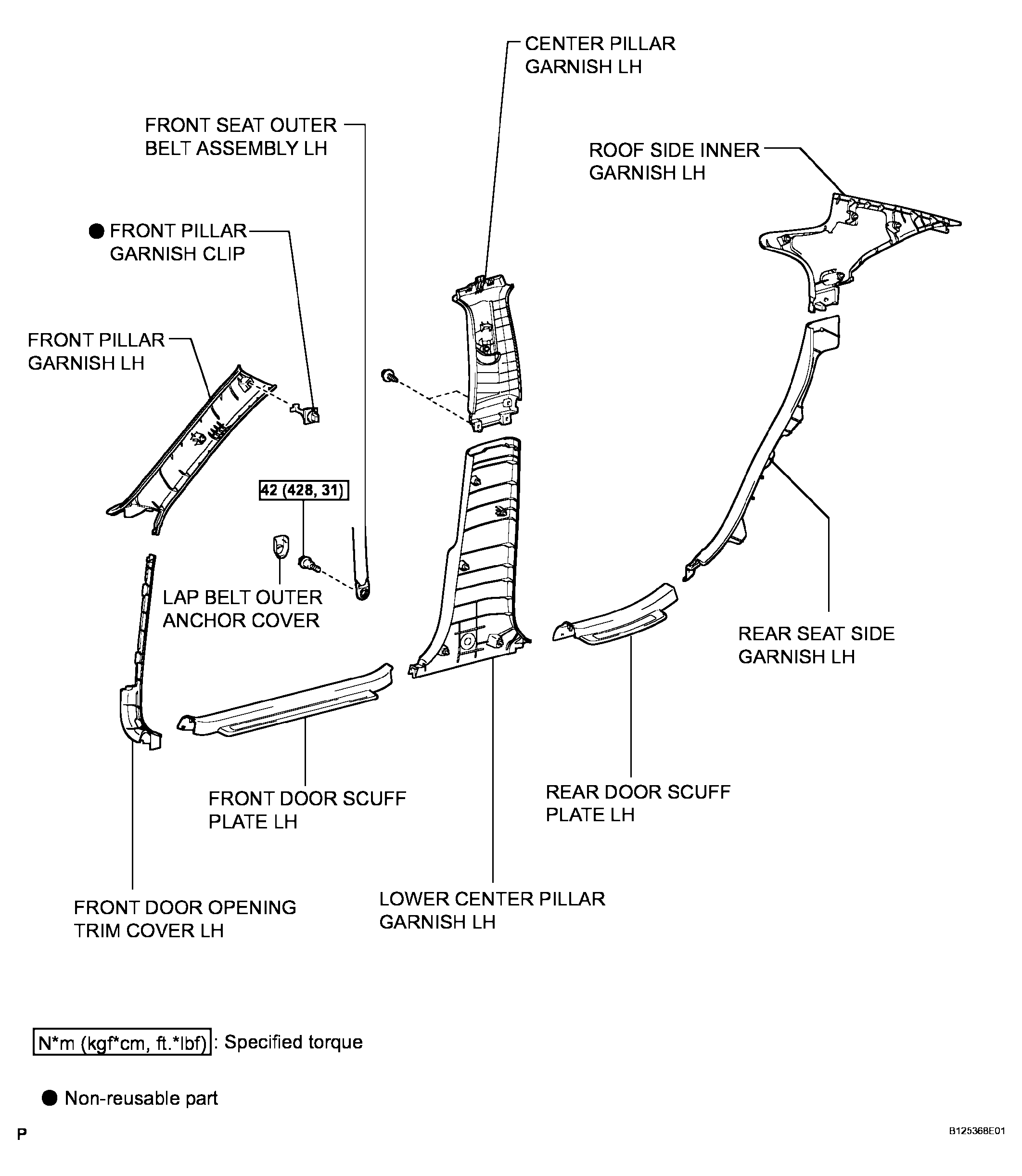

Fig 6: Roof Headlining Replacement Components With Torque Specifications (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

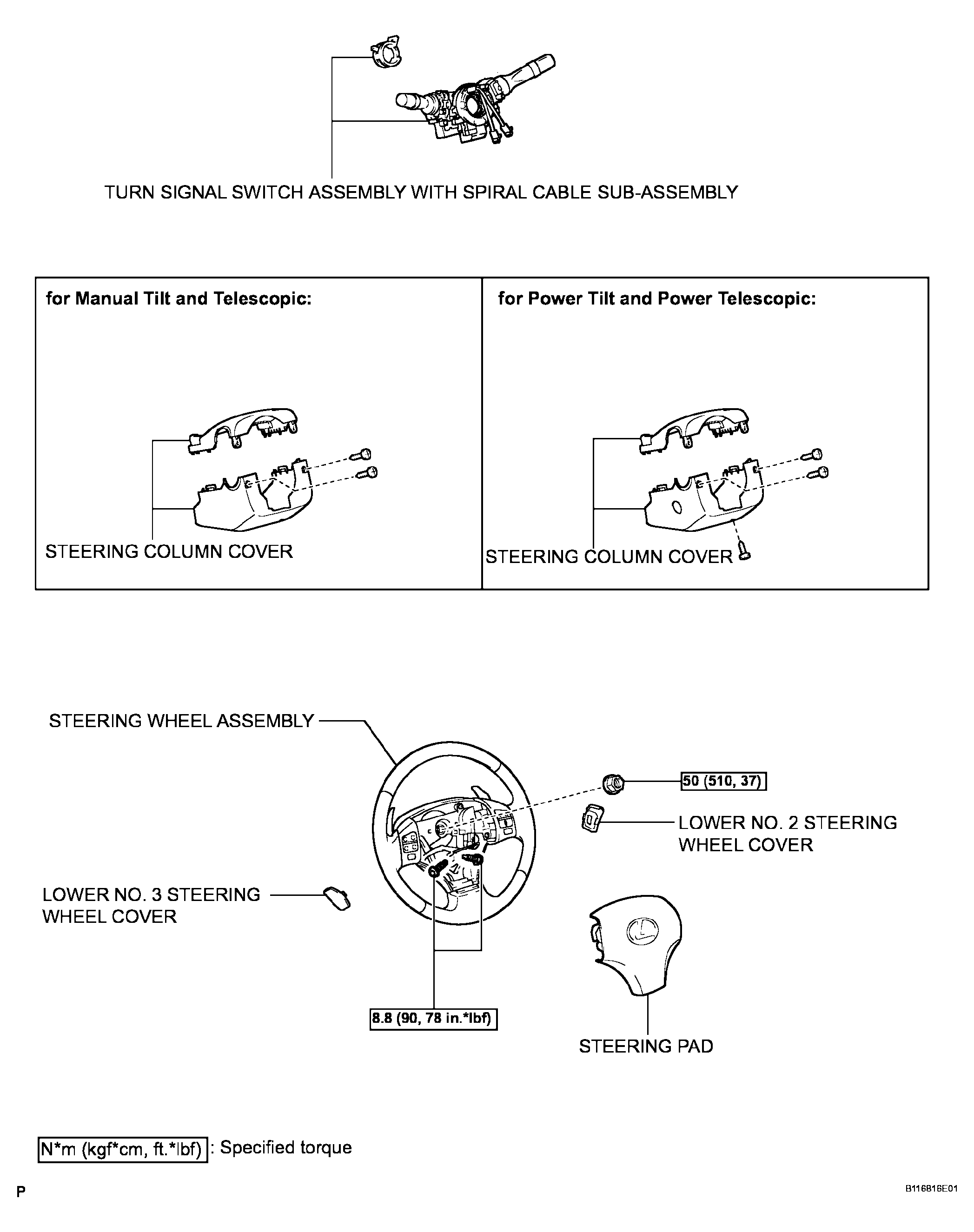

Fig 7: Locating Instrument Panel Safety Pad Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Locating Instrument Panel Safety Pad Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating Instrument Panel Safety Pad Components With Torque Specifications (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

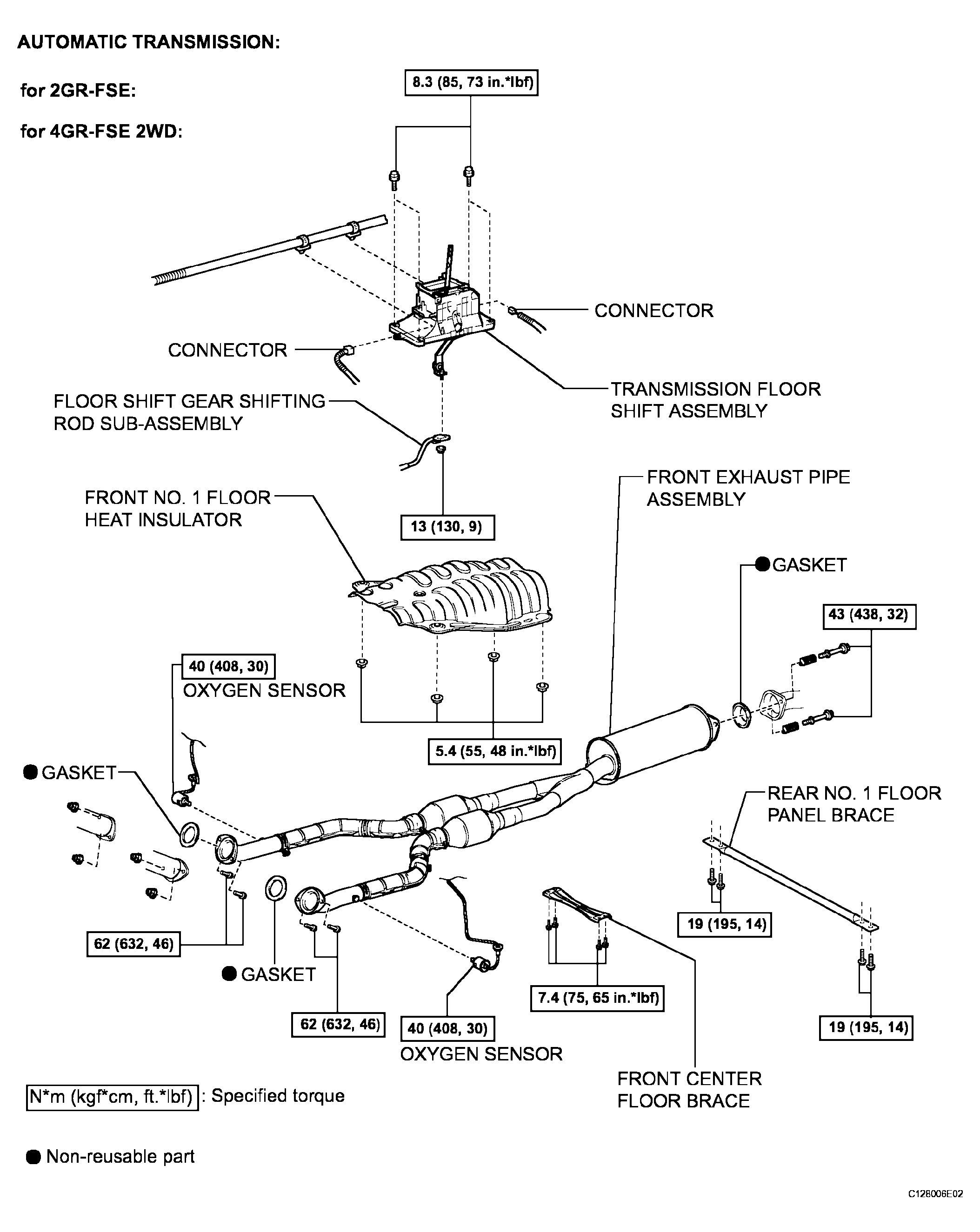

Fig 10: Roof Headlining Replacement Components With Torque Specifications (With Automatic Transmission For 2GR-FSE And 4GR-FSE 2WD) (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

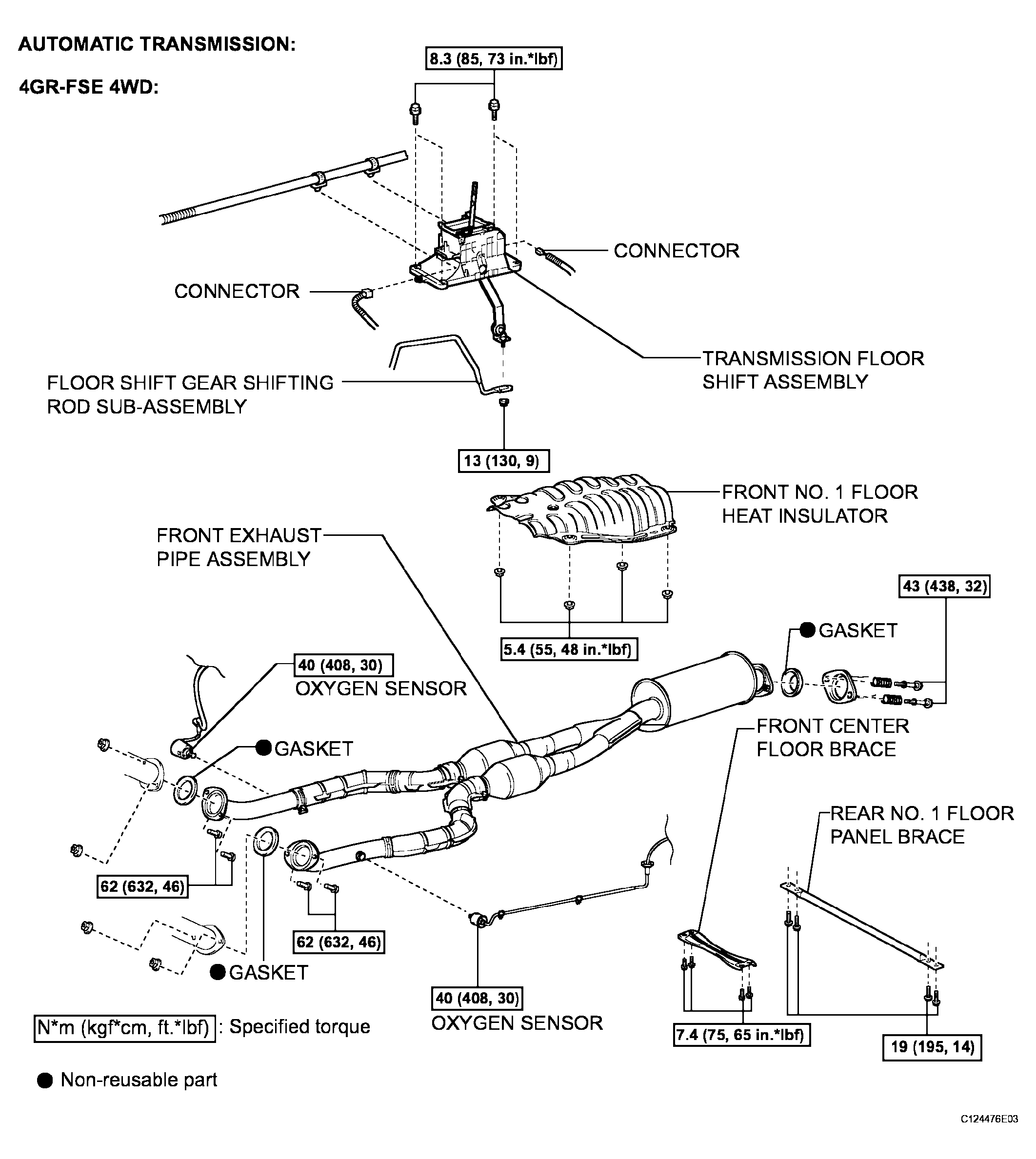

Fig 11: Roof Headlining Replacement Components With Torque Specifications (Automatic Transmission For GR-FSE 4WD) (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

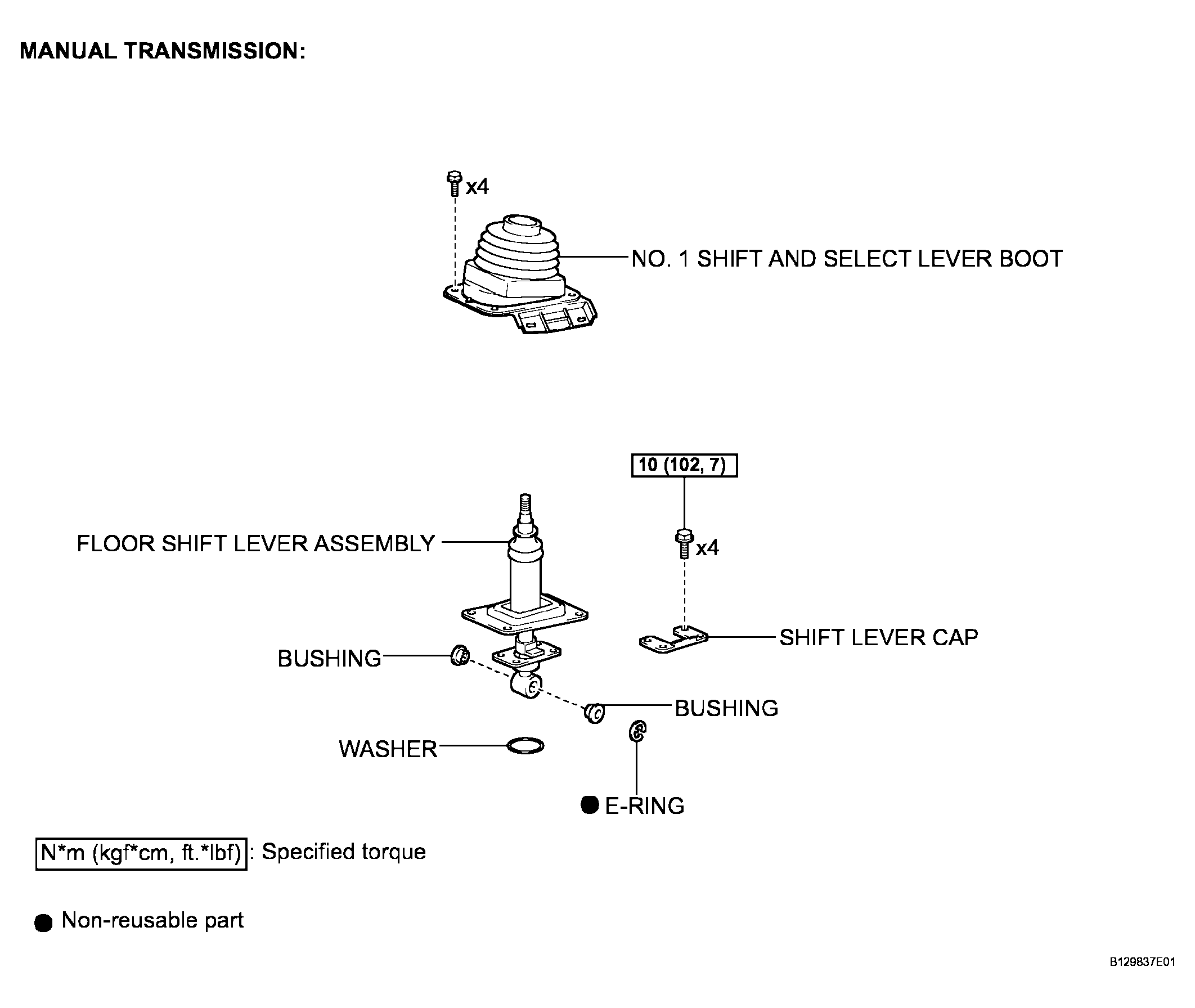

Fig 12: Roof Headlining Replacement Components With Torque Specifications (Manual Transmission) (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

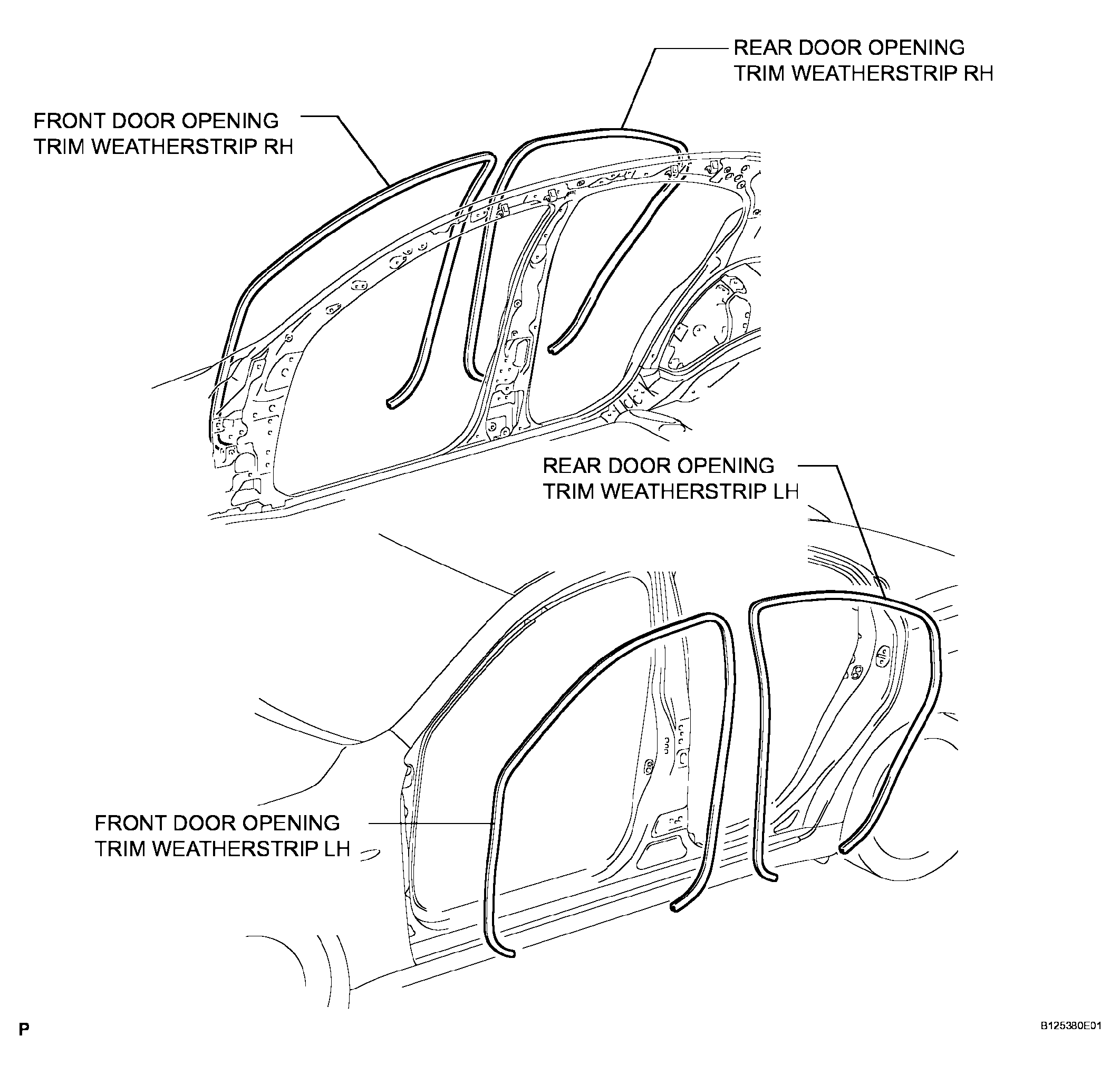

Fig 13: Roof Headlining Replacement Components With Torque Specifications (13 Of 18)

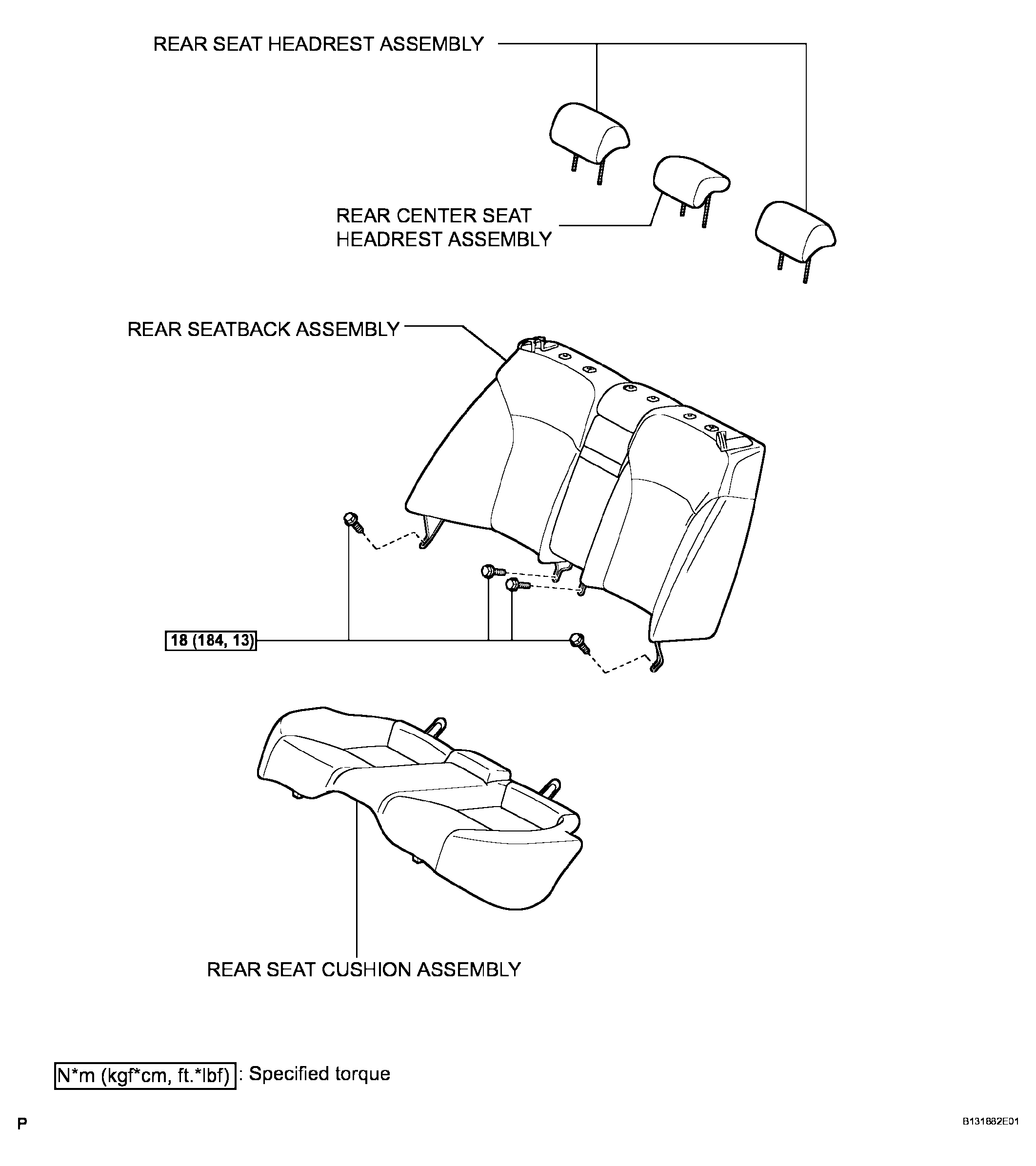

Fig 14: Roof Headlining Replacement Components With Torque Specifications (14 Of 18)

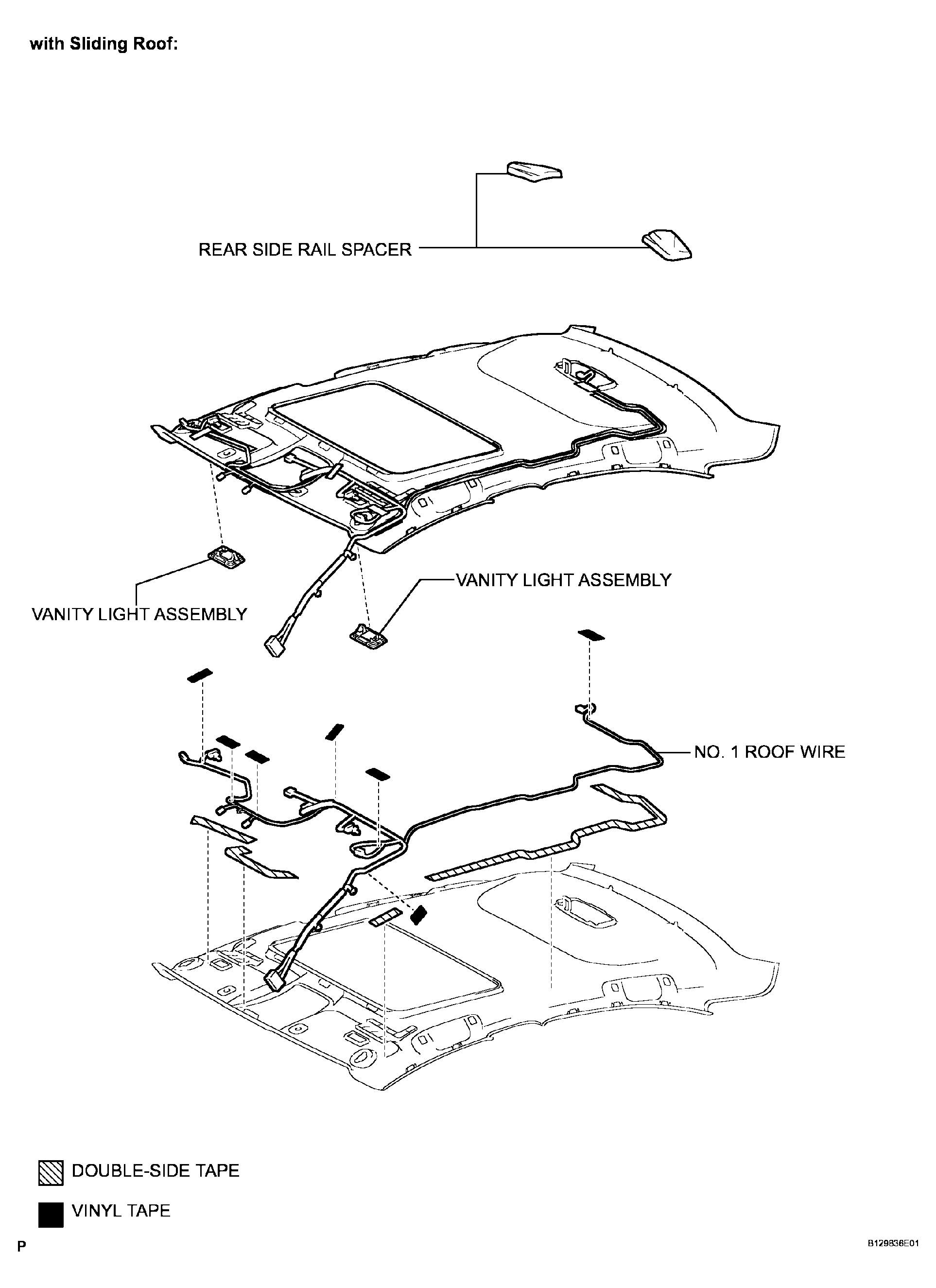

Fig 15: Identifying Roof Headlining Components (With Sliding Roof) (15 Of 18)

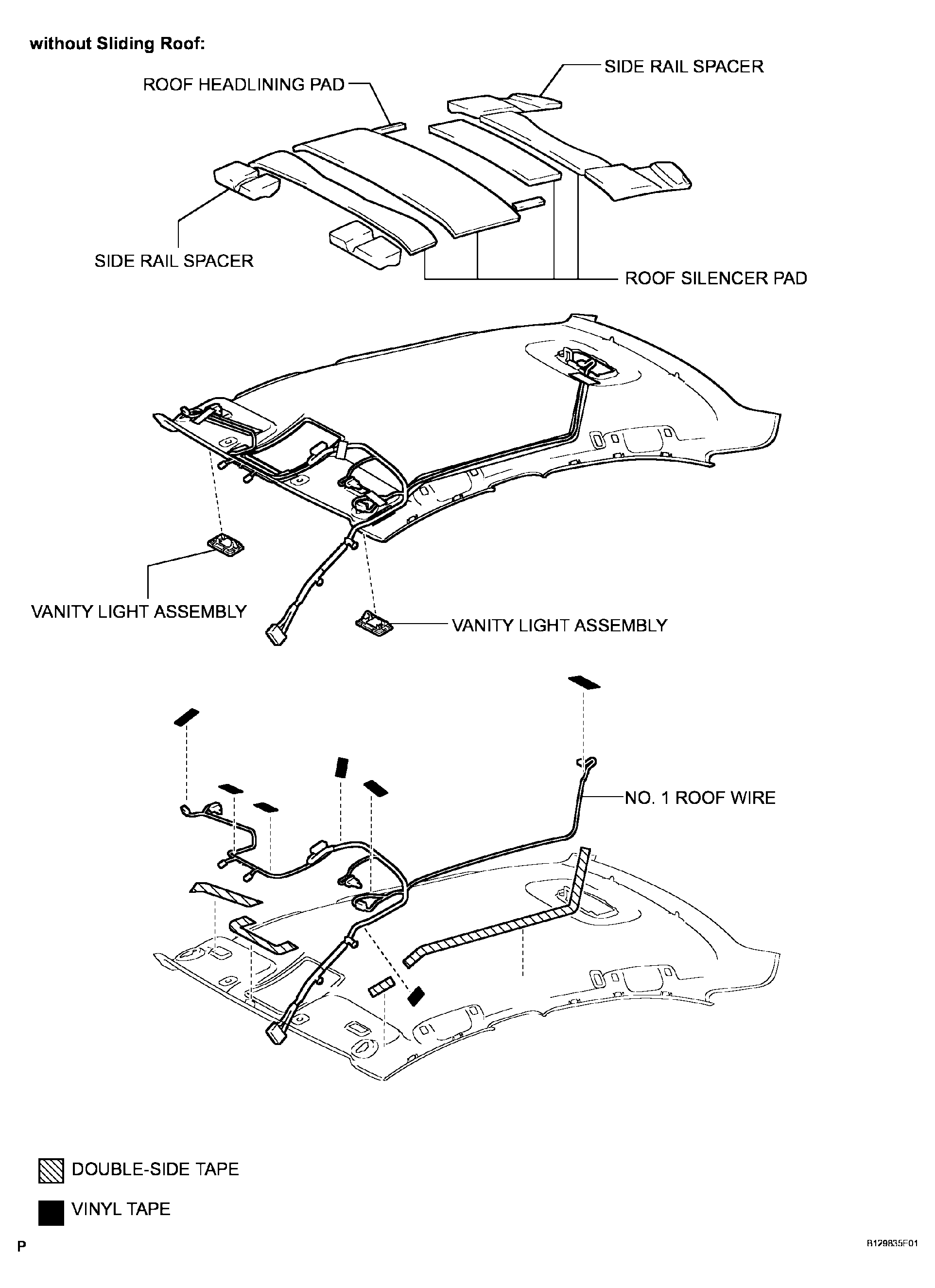

Fig 16: Identifying Roof Headlining Components (Without Sliding Roof) (16 Of 18)

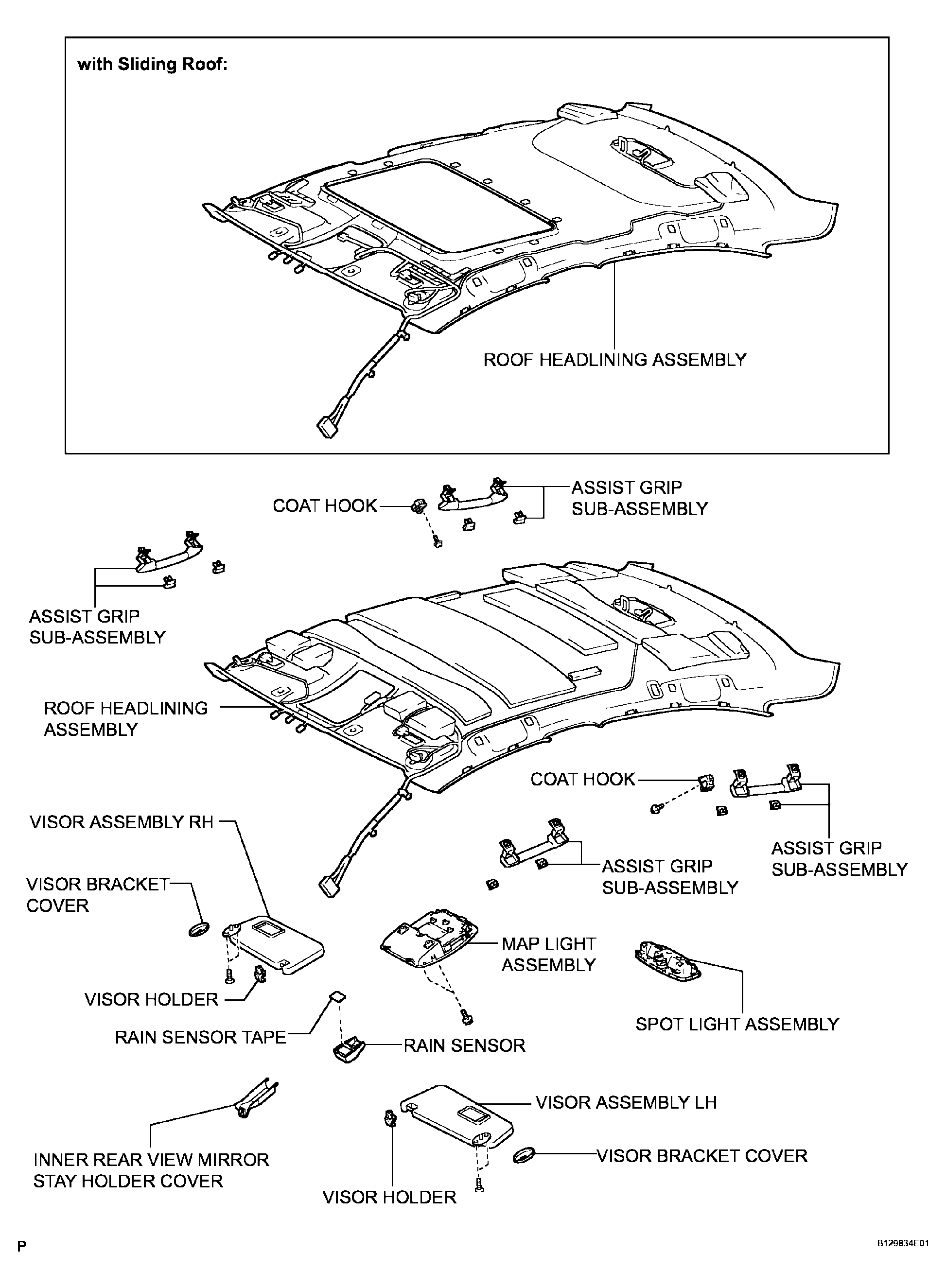

Fig 17: Identifying Roof Headlining Components (With Sliding Roof) (17 Of 18)

Fig 18: Identifying Roof Headlining Components (18 Of 18)
