Rear Seat Assembly: Components

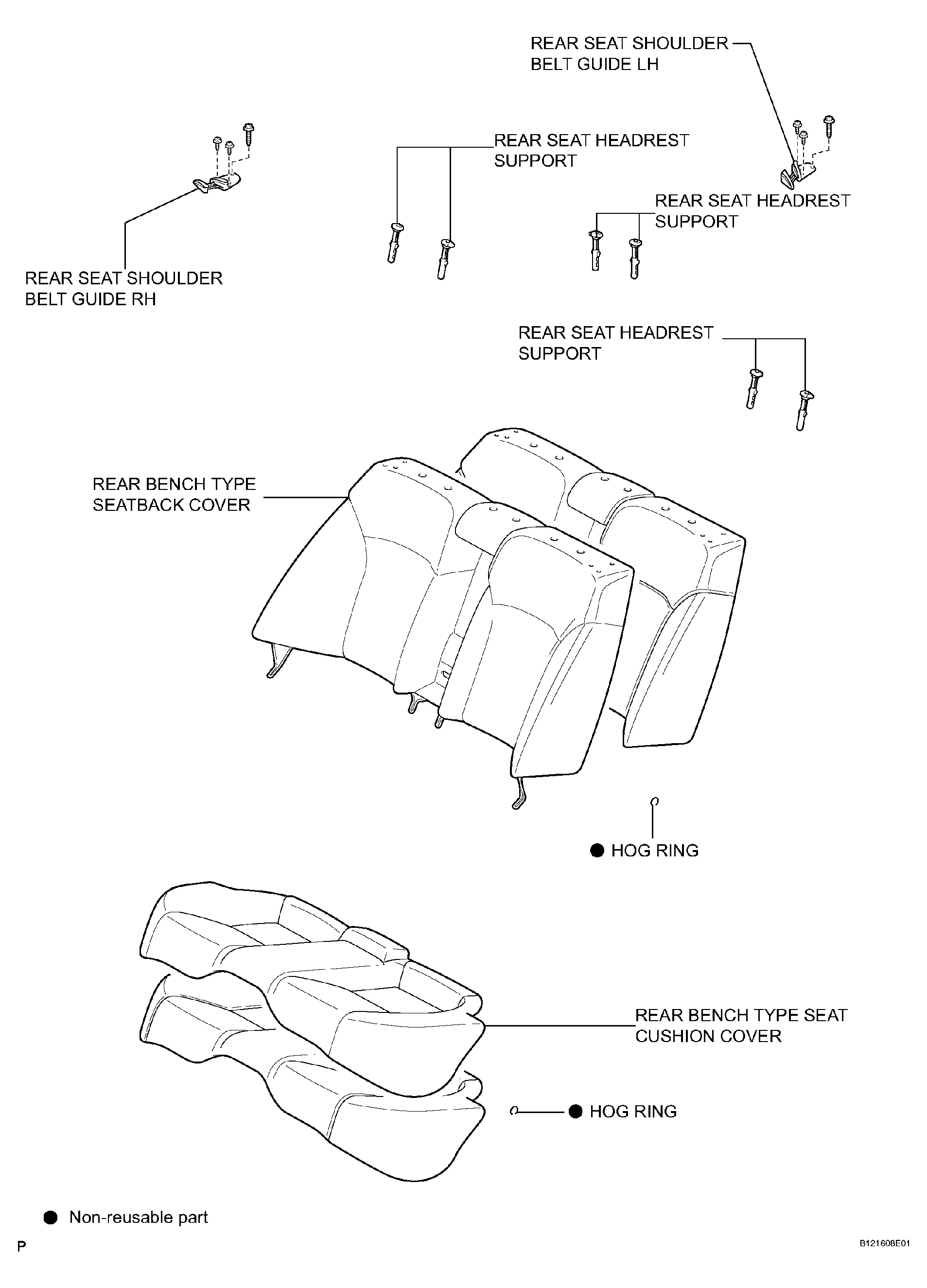

Fig 1: Identifying Rear Seat Assembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

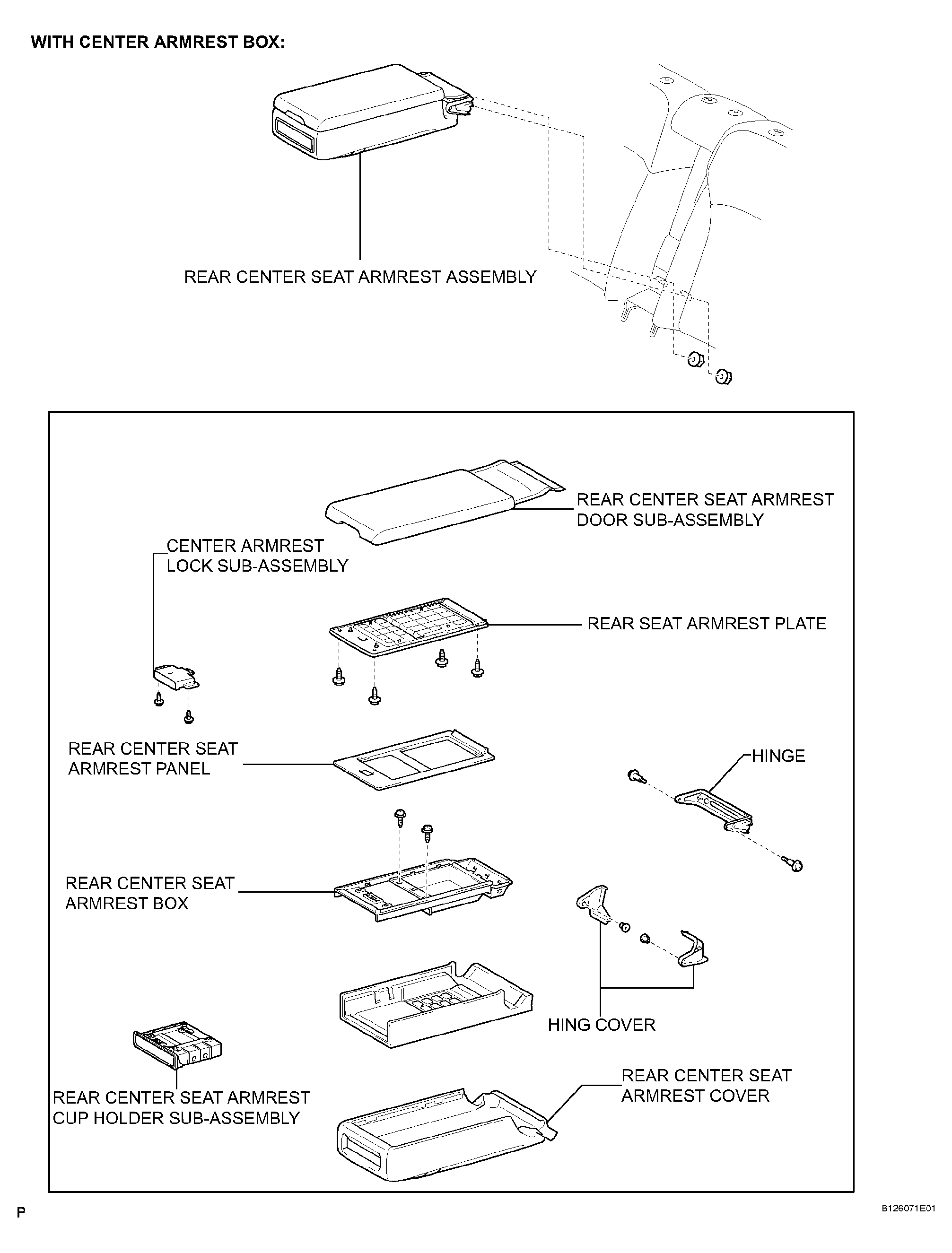

Fig 2: Identifying Rear Seat Assembly Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

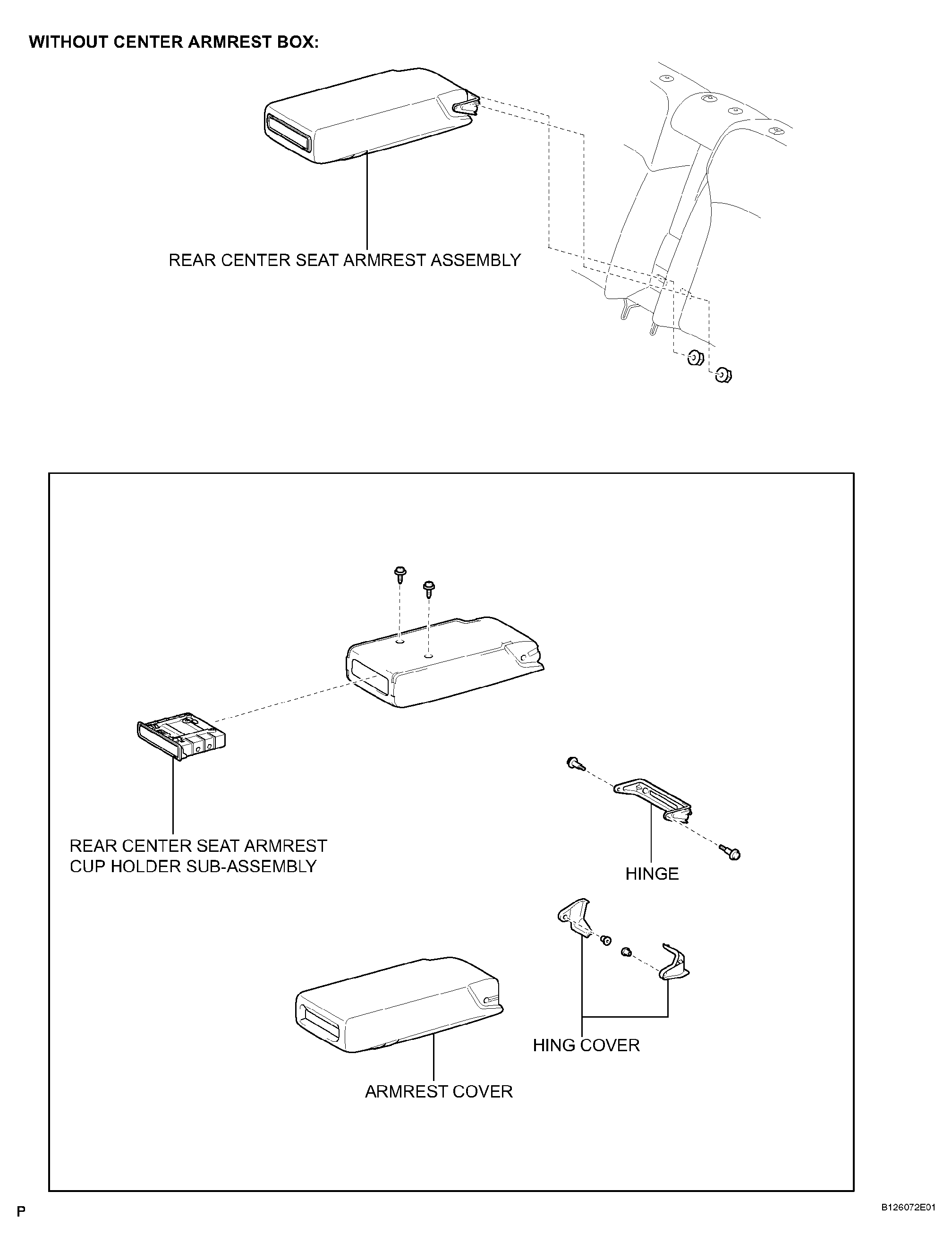

Fig 3: Identifying Rear Seat Assembly Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

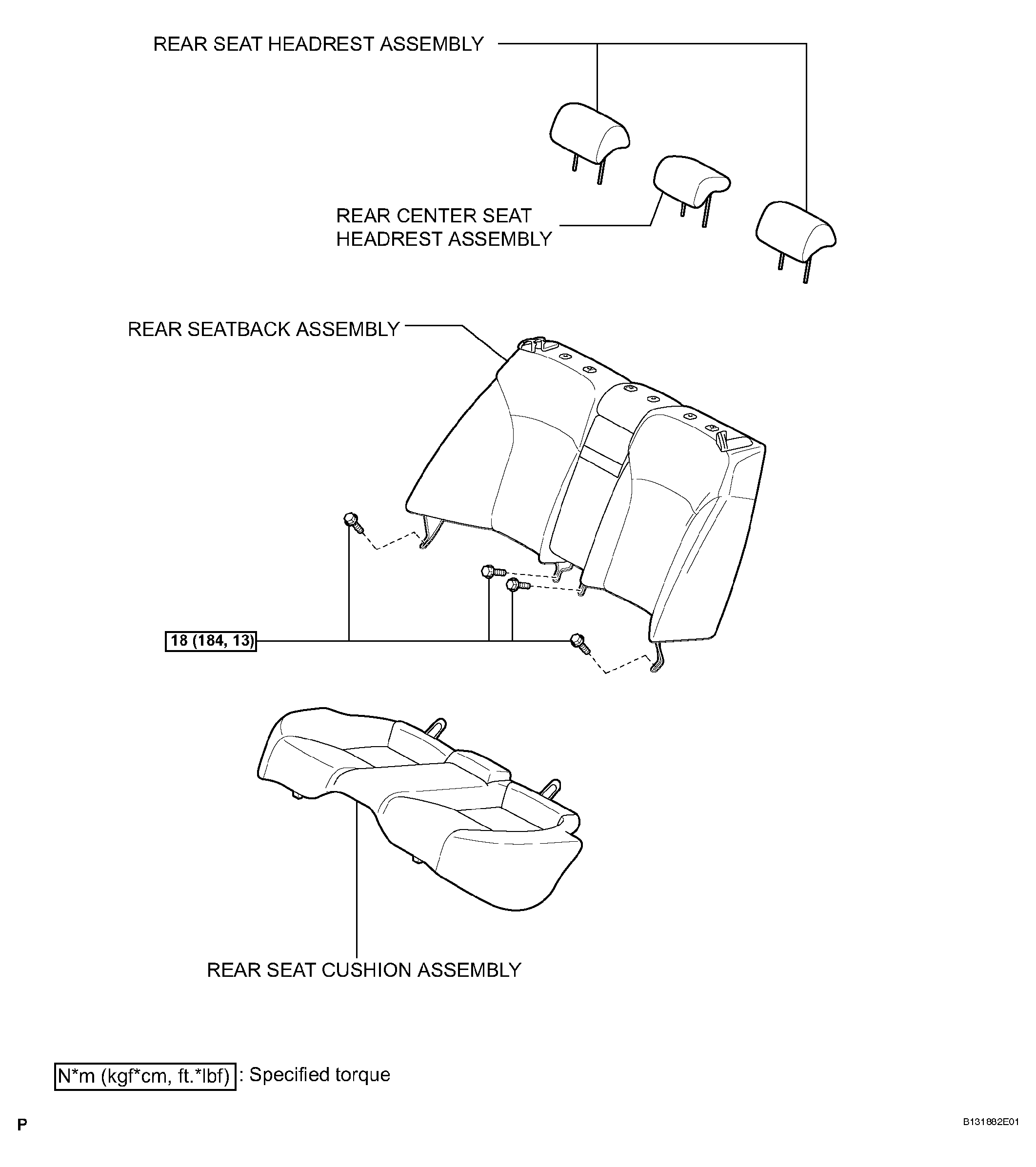

Fig 4: Identifying Rear Seat Assembly Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
