Seat Memory Switch: Installation

  1. INSTALL SEAT MEMORY SWITCH
    1. Install the switch with the 2 screws.
    2. Connect the connector.
  2. INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP (See  REASSEMBLY  )
  3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See  REASSEMBLY  )

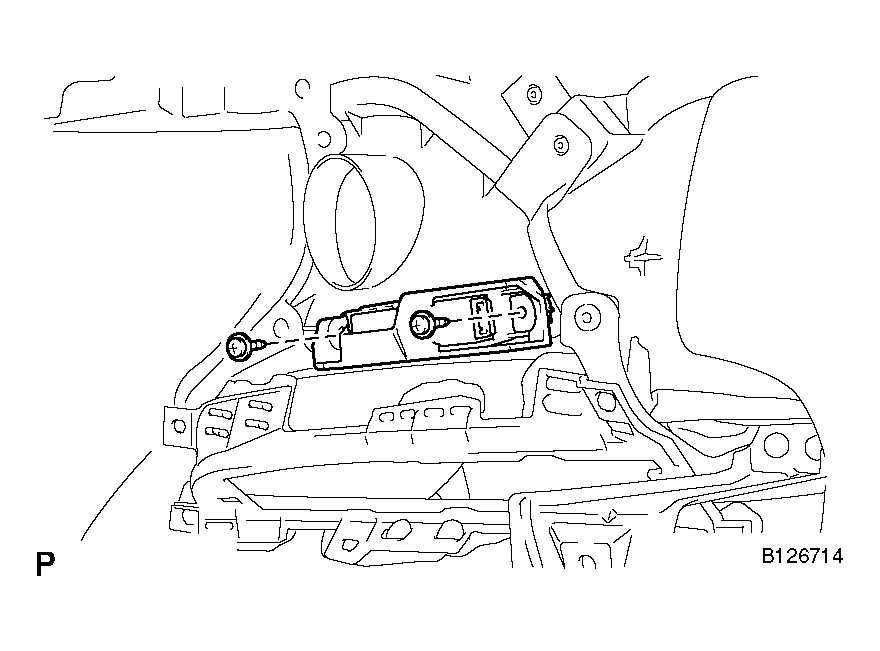

    Fig 1: Identifying Switch With 2 Screws
    G04051230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL COURTESY LIGHT ASSEMBLY (See  REASSEMBLY  )
  5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See  REASSEMBLY  )
  6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH (See  REASSEMBLY  )
