Brake Control Brake Actuator: Components

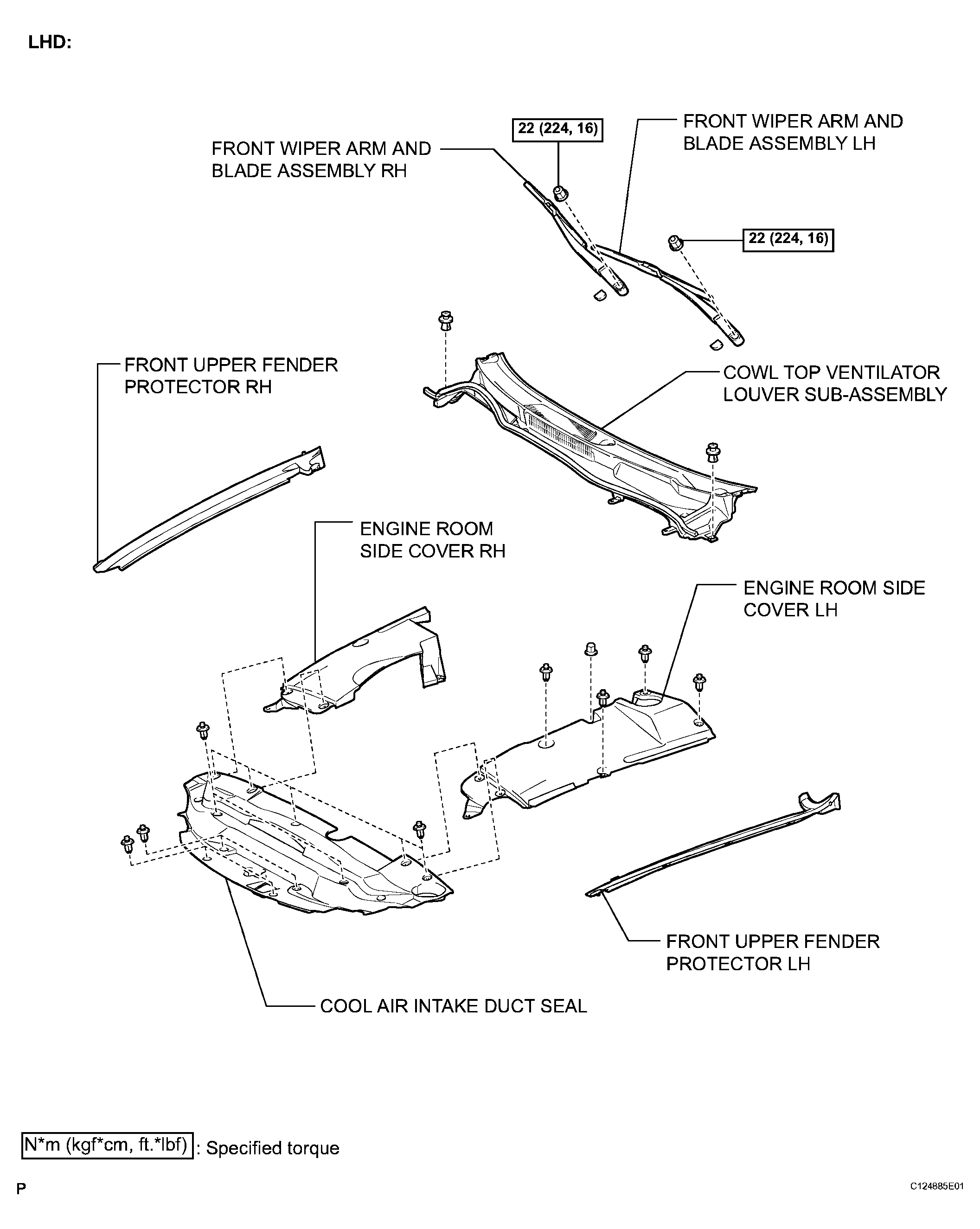

Fig 1: Brake Control Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G04052180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

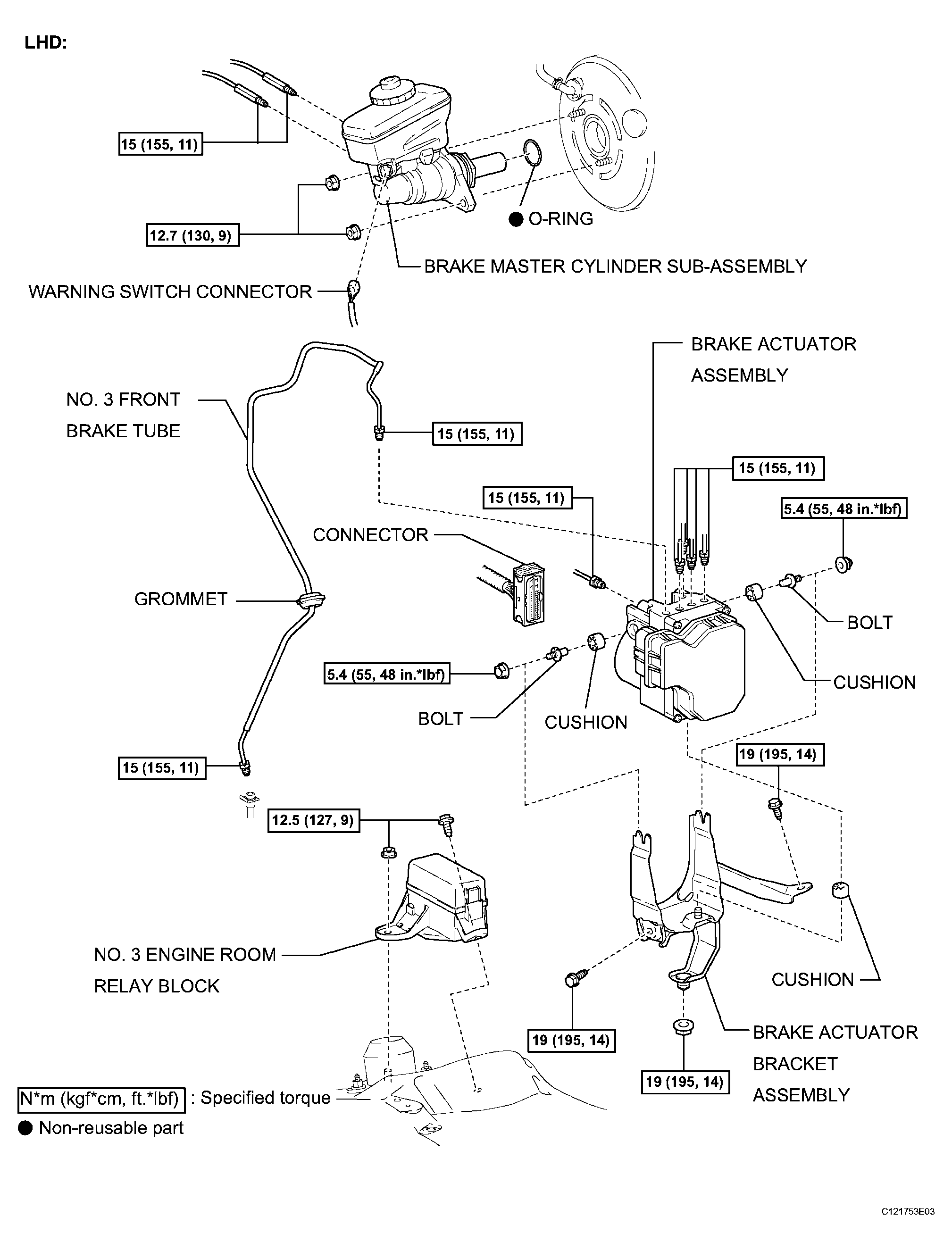

Fig 2: Brake Control Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G04052181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
