SKID CONTROL ECU (w/ VDIM): Components

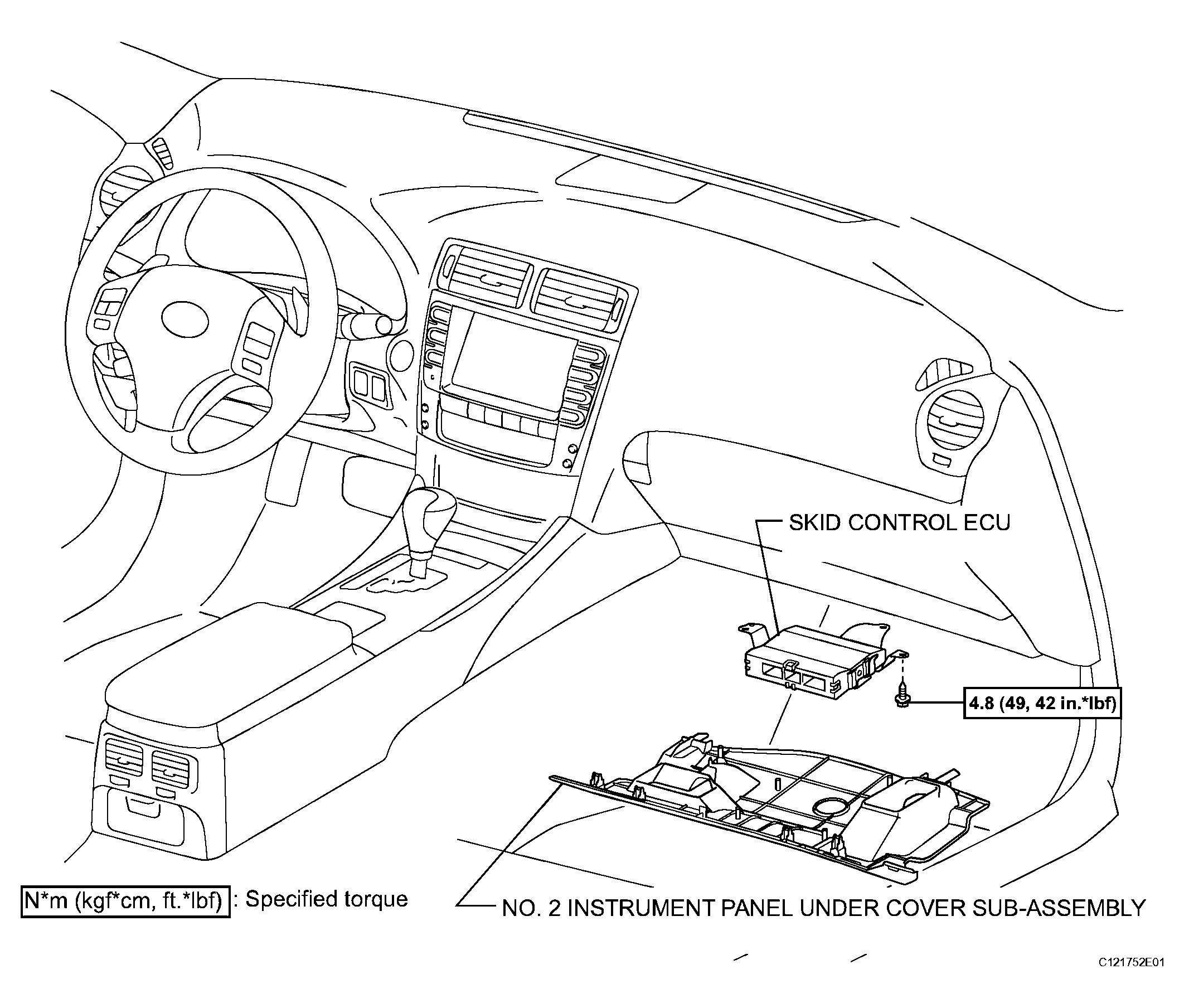

Fig 1: Skid Control ECU (W/ VDIM) Replacement Components With Torque Specifications
G04052216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
