Front Axle Hub Bolt: Components

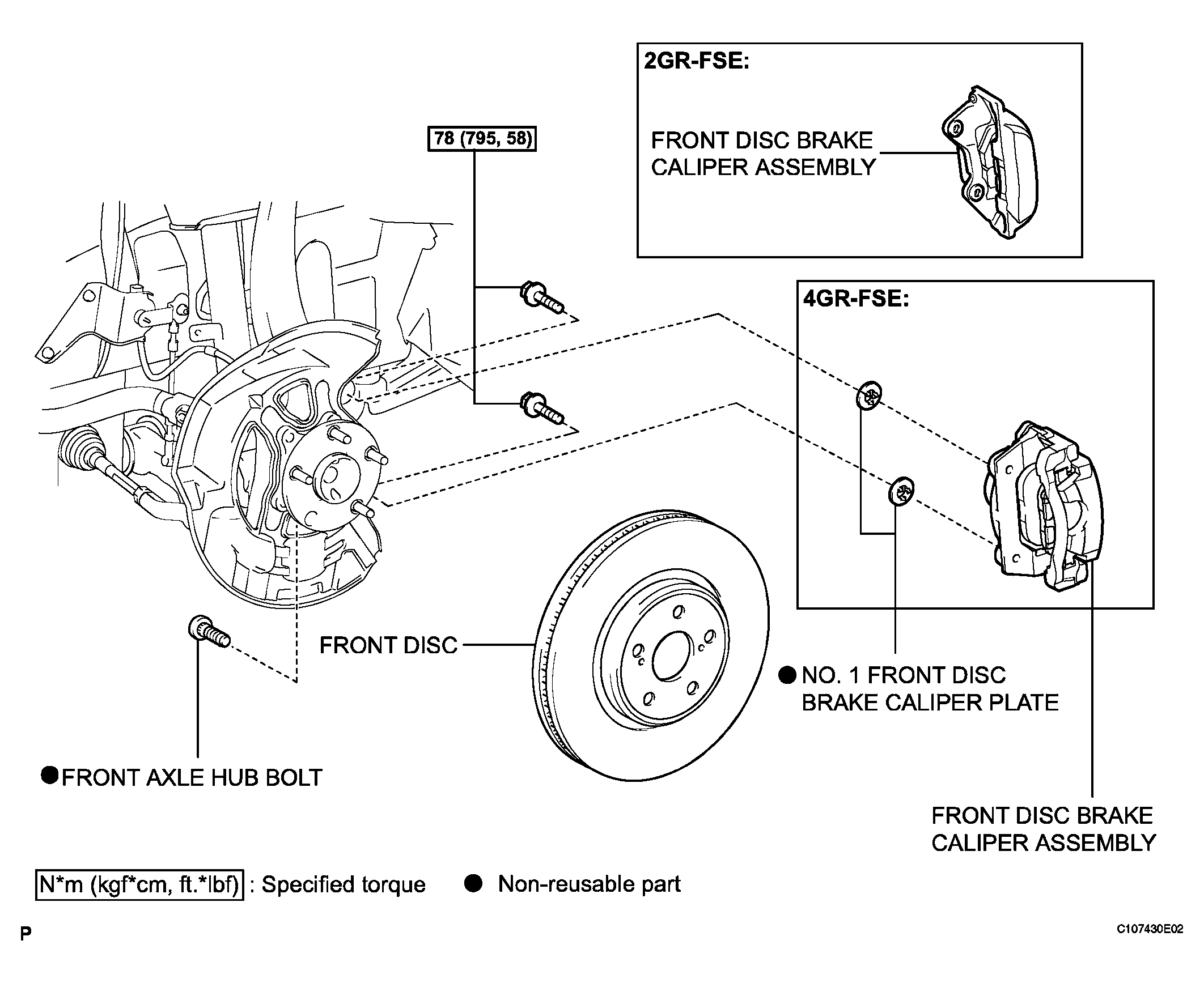

Fig 1: Front Axle Hub Bolt With Torque Specifications

G04053700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
