Front Axle Hub: Components

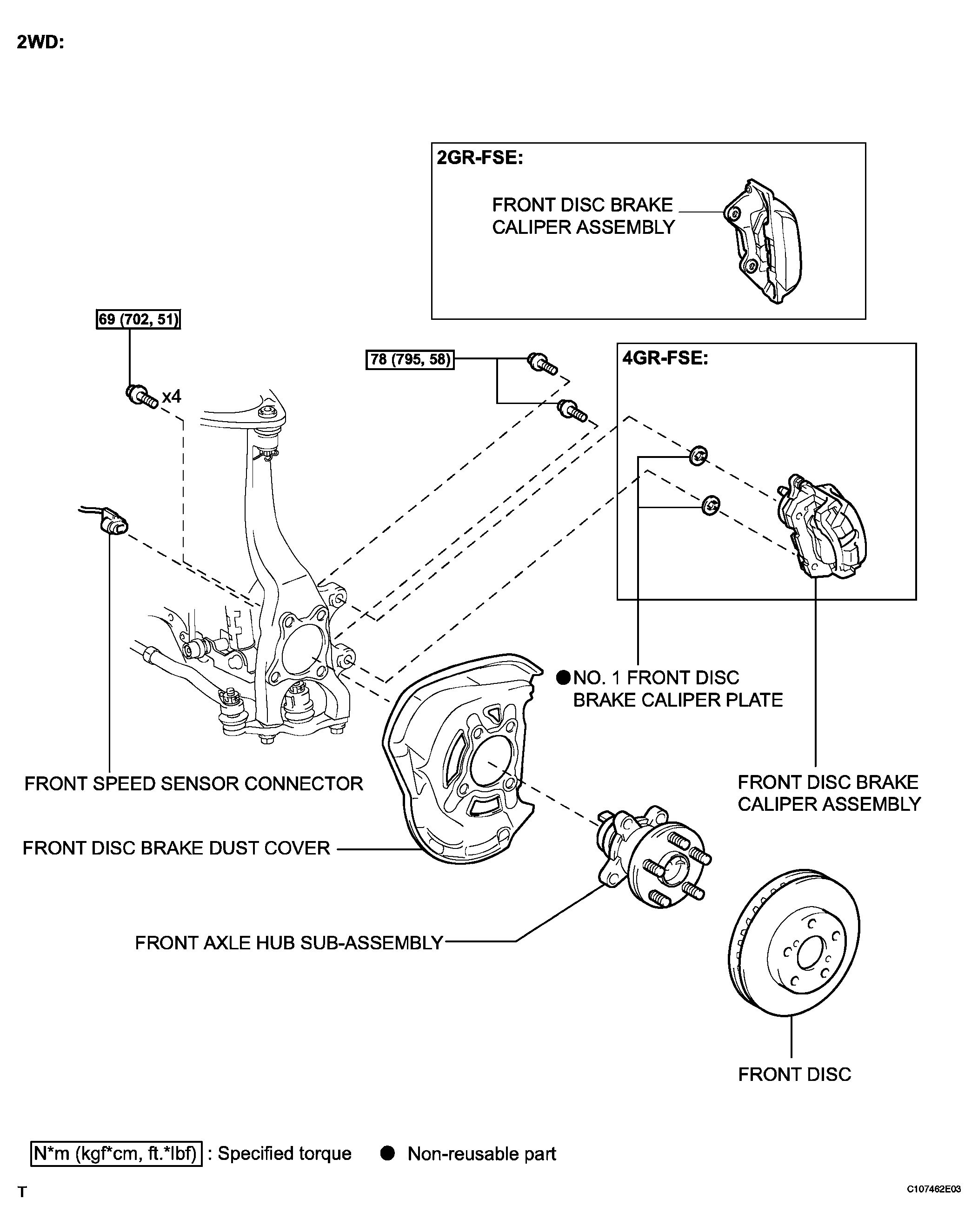

Fig 1: Front Axle Hub Replacement Components With Torque Specifications (2WD)
G04053703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

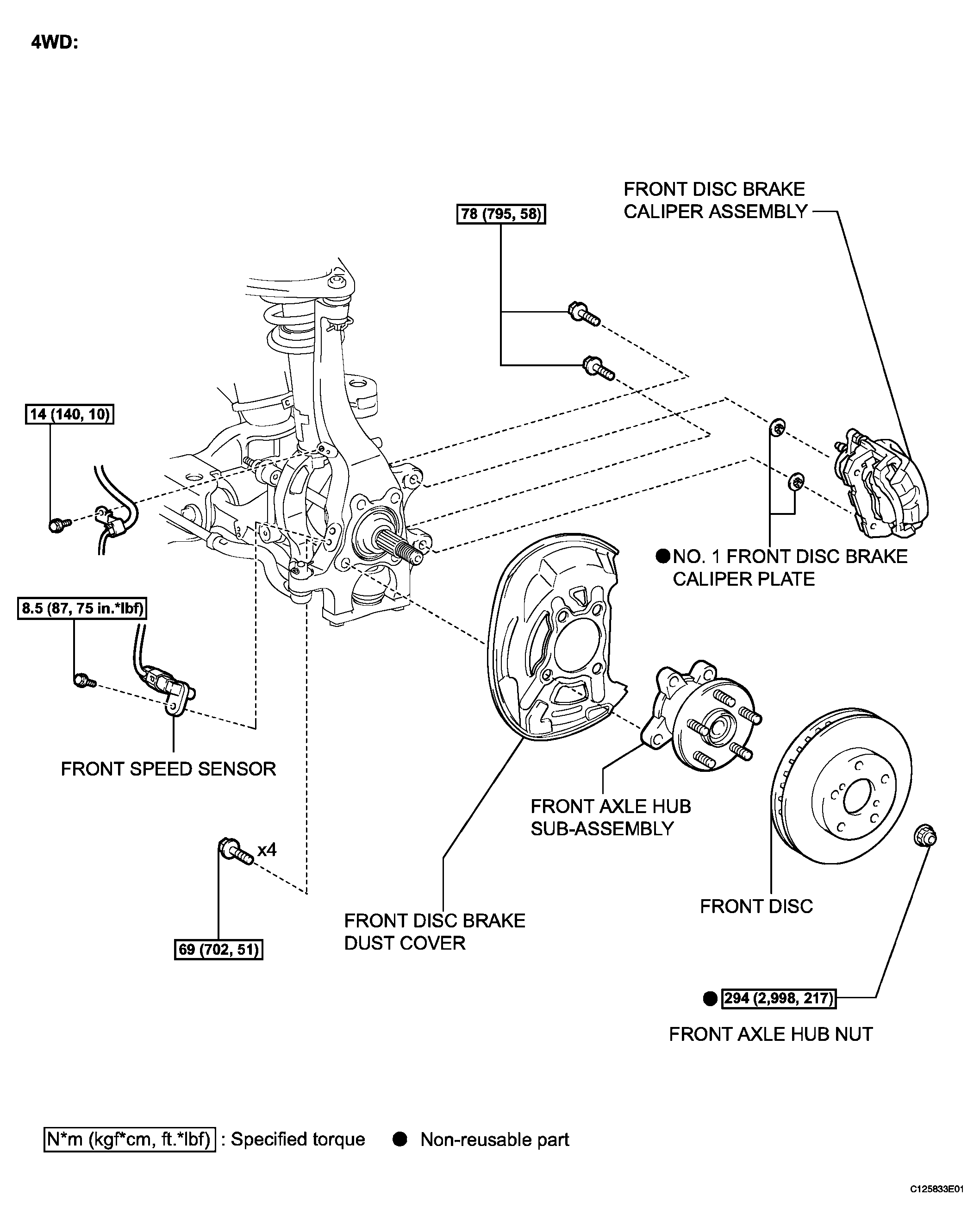

Fig 2: Front Axle Hub Replacement Components With Torque Specifications (4WD)
G04053704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
