Rear Axle Hub: Components

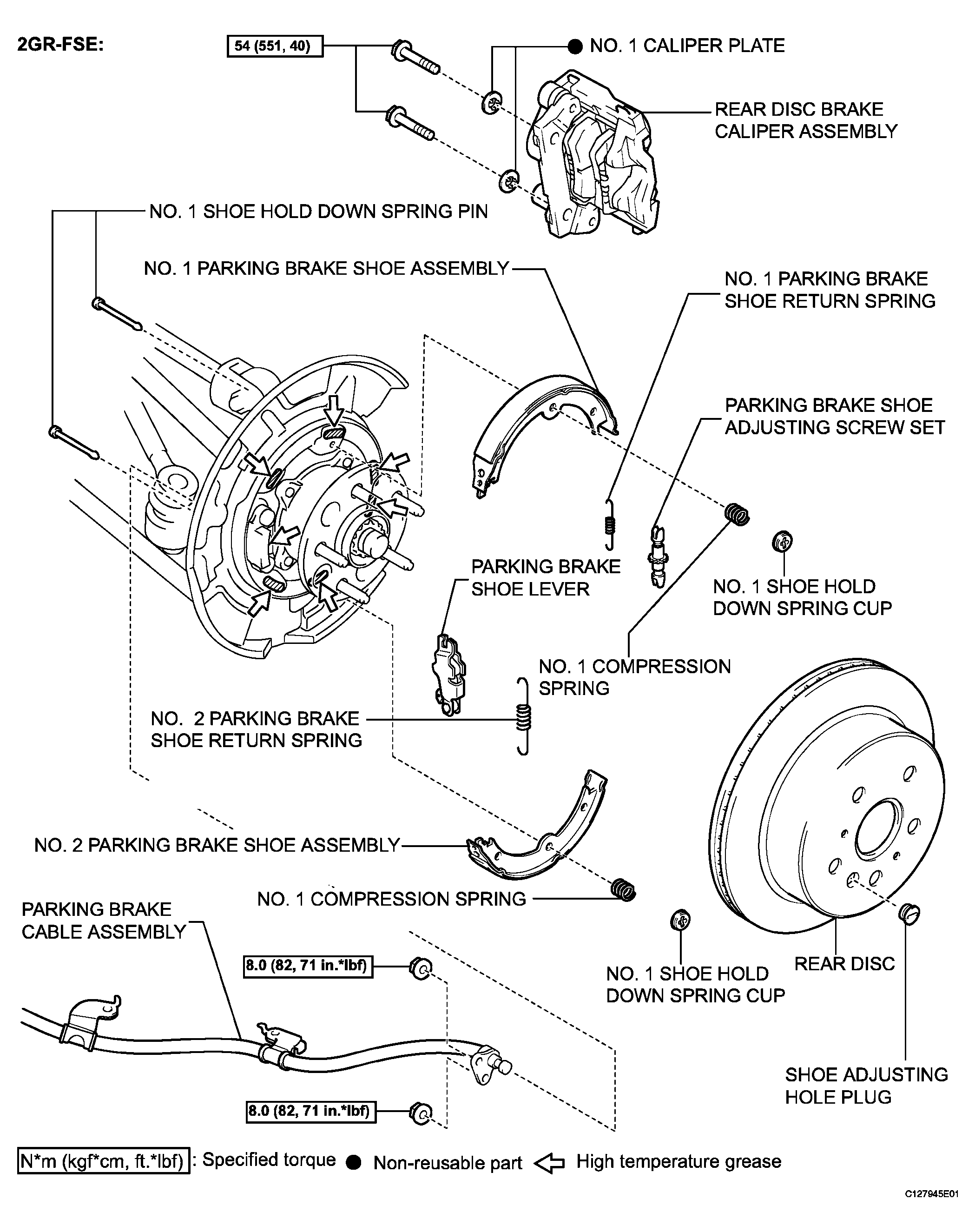

Fig 1: Exploded View Of Rear Axle Hub Components With Torque Specifications (2GR-FSE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

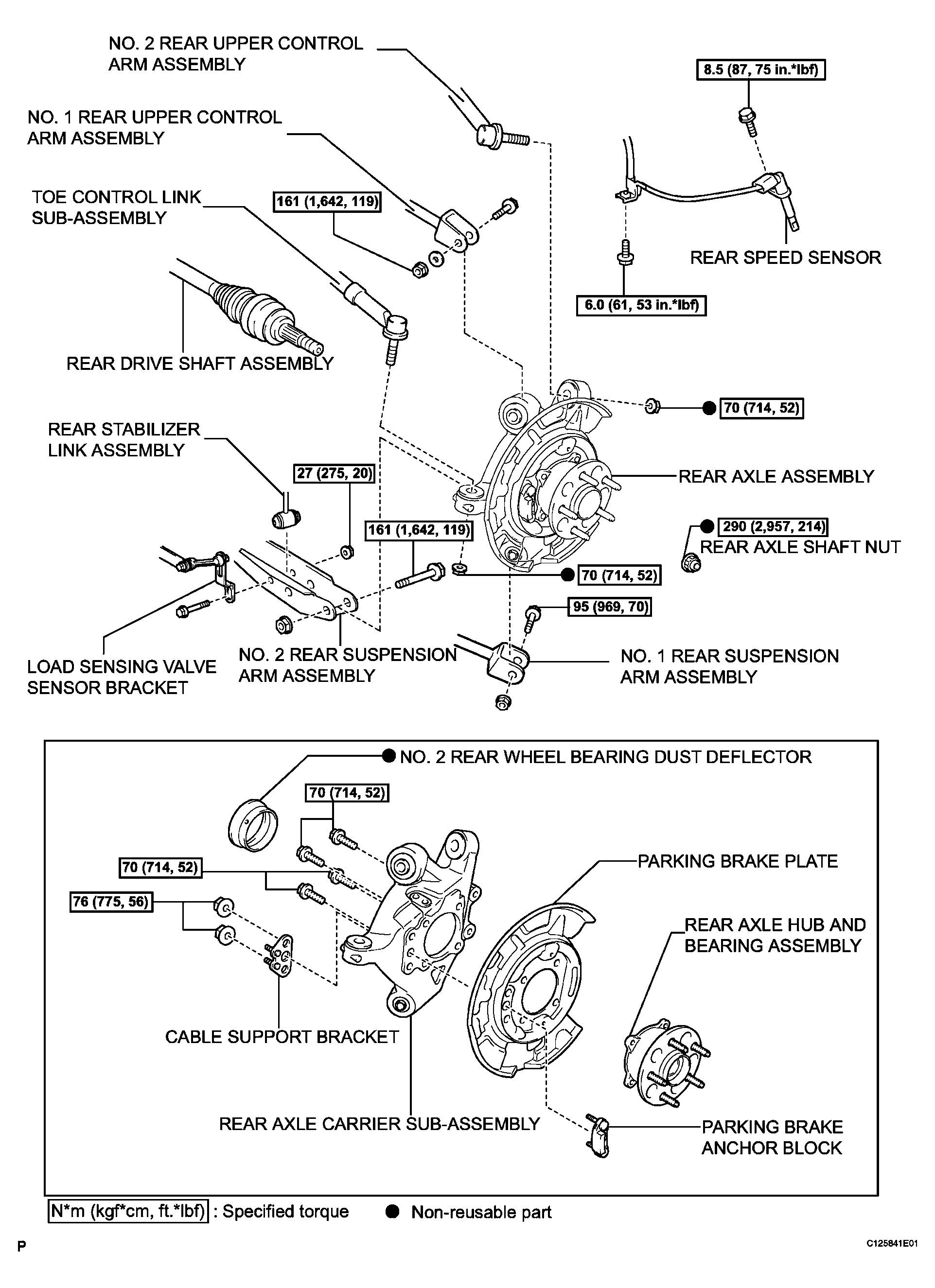

Fig 2: Exploded View Of Rear Axle Hub Components With Torque Specifications [4GR-FSE] (1 Of 2)

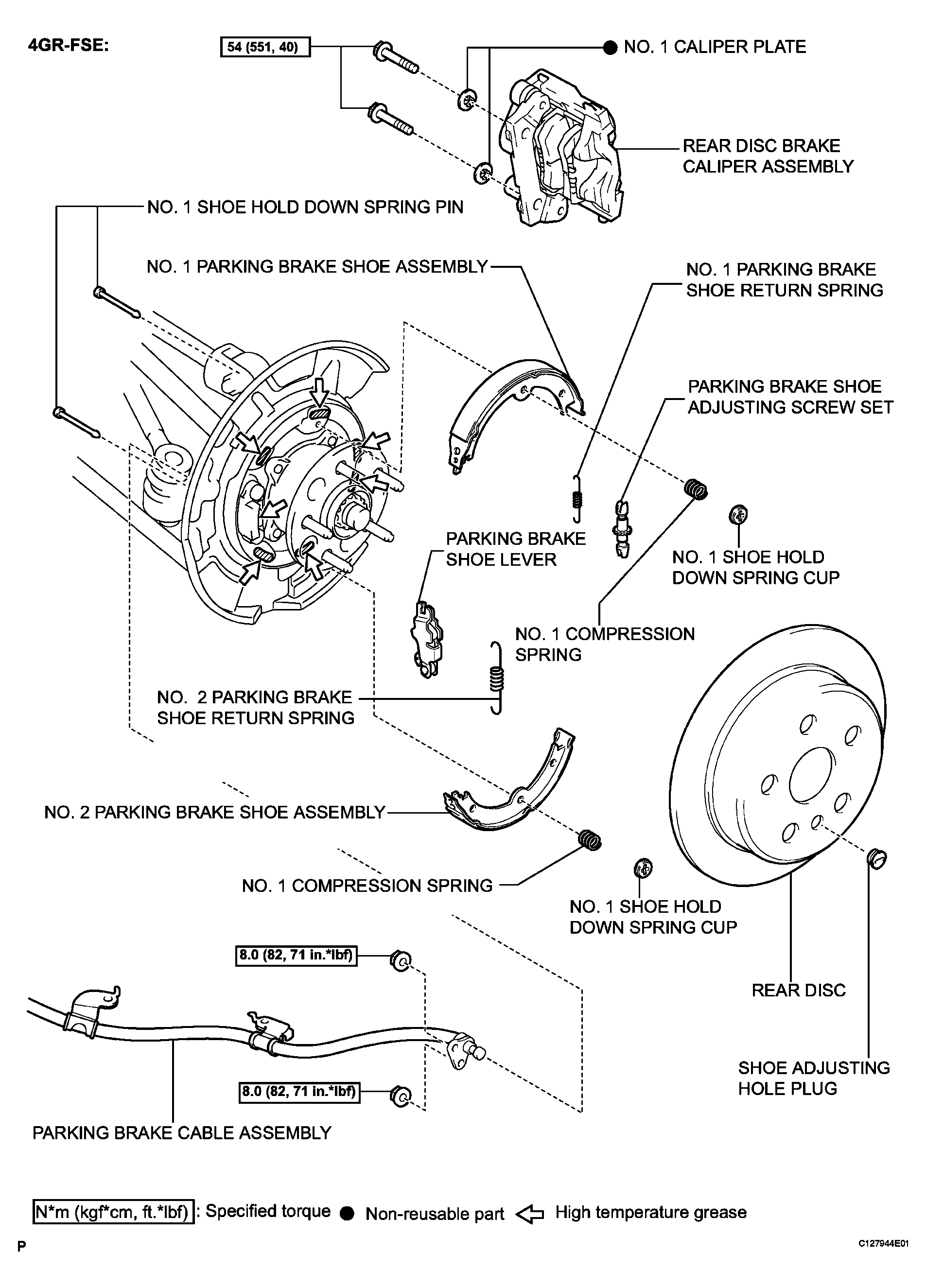

Fig 3: Exploded View Of Rear Axle Hub Components With Torque Specifications [4GR-FSE] (2 Of 2)
