Steering Pad Switch: Components

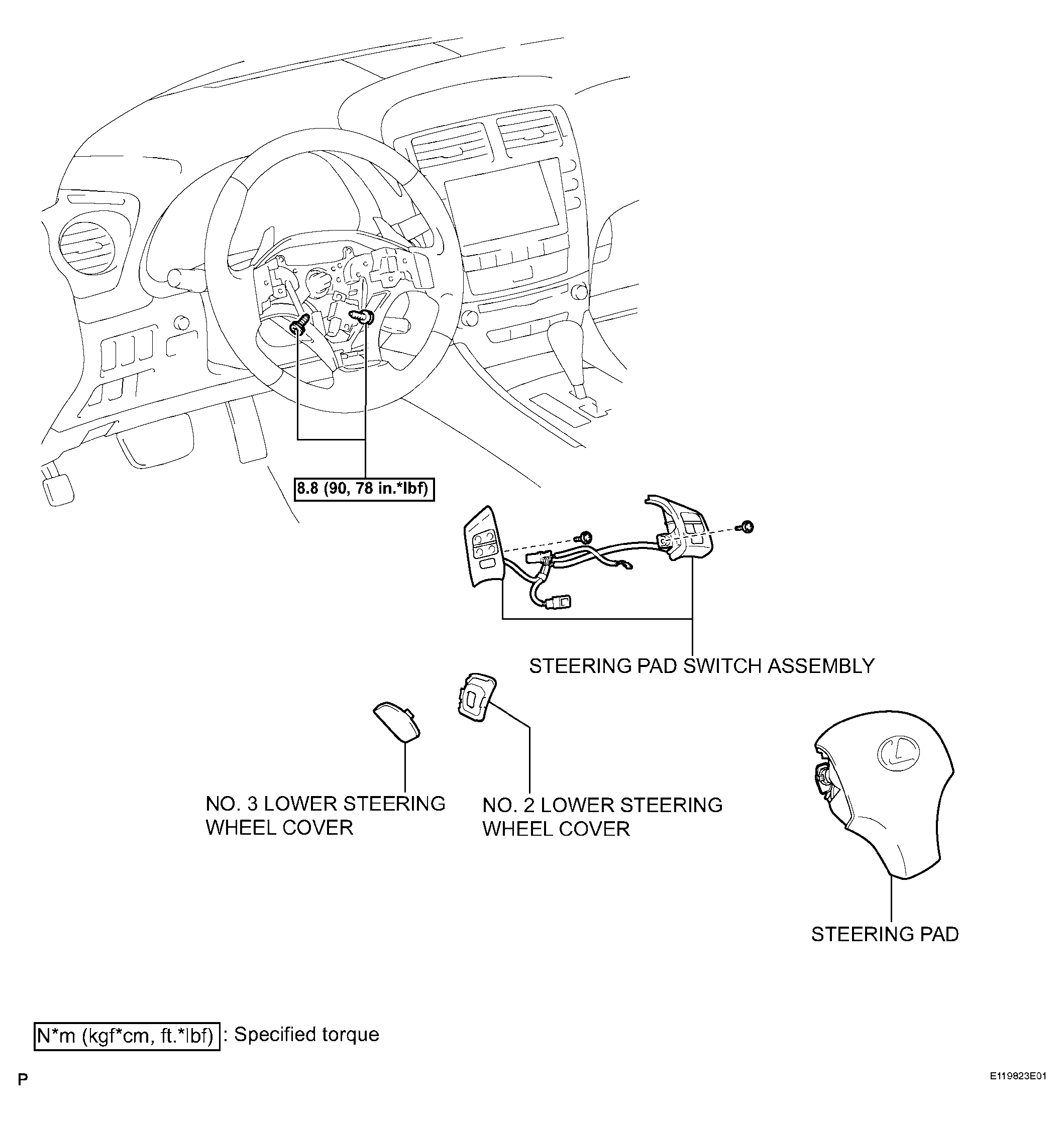

Fig 1: Identifying Steering Pad Switch Components
G04050055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
